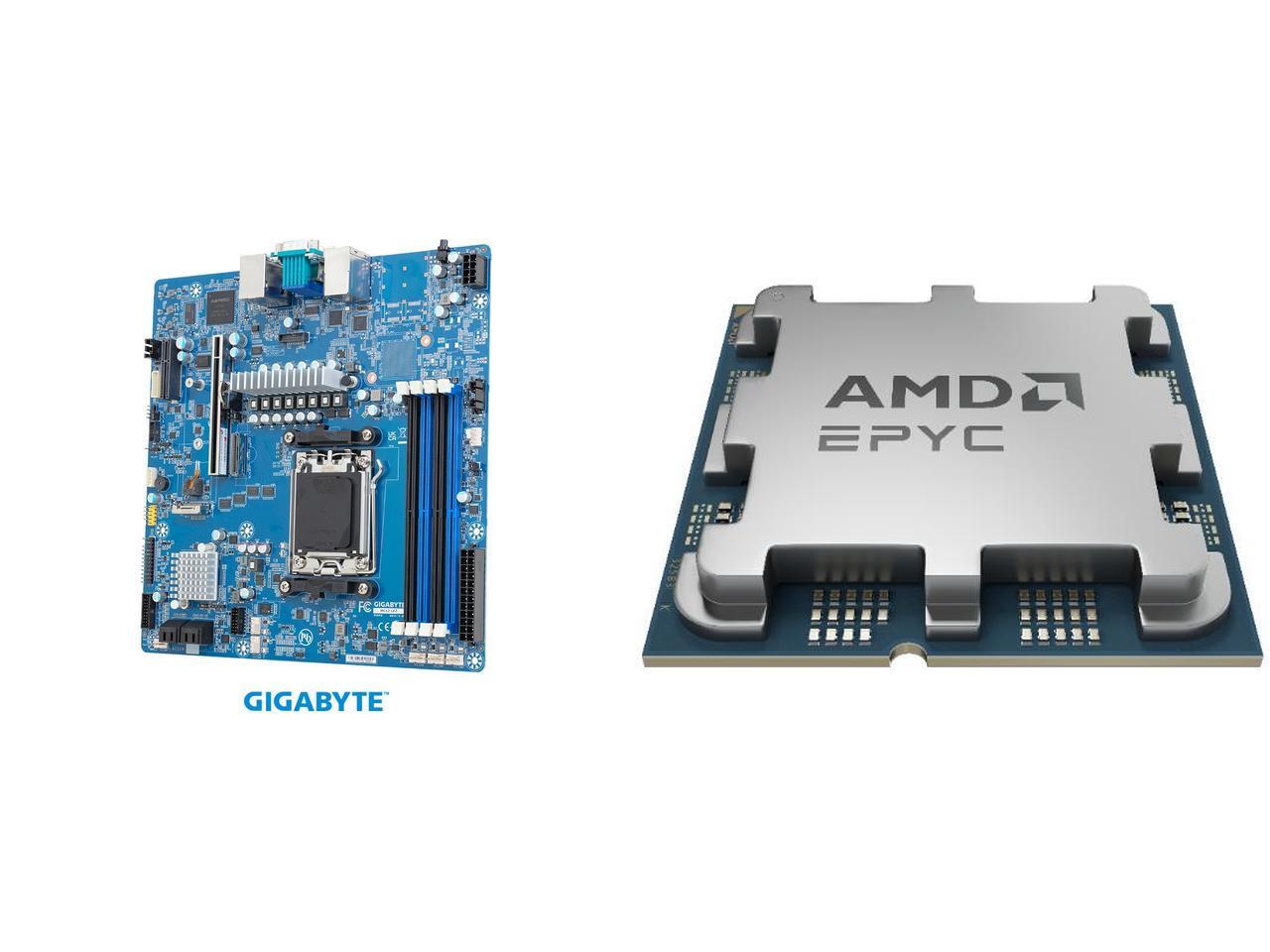

This Combo Includes 2 Items
Learn more about the GIGABYTE MC13-LE2
Model| Brand | GIGABYTE |
|---|
| Model | MC13-LE2 |
|---|
Supported CPU| CPU Socket Type | Socket AM5 |
|---|
| CPU Type | AMD EPYC 4004 Series / AMD EPYC 4005 Series / AMD Ryzen 7000 Series / AMD Ryzen 9000 Series |
|---|
| Number of Processor Support | 1 |
|---|
| CPU Features | TDP up to 170W |
|---|
Chipsets| North Bridge | AMD B650 |
|---|
Memory| Memory Slots | 4 x DDR5 288-pin |
|---|
| Memory Standard | AMD EPYC 4005 / Ryzen 9000: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC 4004 / Ryzen 7000: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC) |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
Expansion Slots| PCI Express 5.0 x16 | Slot_3: PCIe x16 (Gen5 x16), from CPU, shared with MCIO |
|---|
| PCI Express x4 | Slot_1: PCIe x4 (Gen4 x4), from FCH |
|---|
| Other Slots | 1 x MCIO 8i (Gen5 x8) |
|---|
Storage Devices| SATA | 4 x SATA 6.0Gb/s |
|---|
| SATA RAID | 0/1/10 |
|---|
| M.2 | 1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU |
|---|
Onboard Video| Onboard Video Chipset | Aspeed AST2600 |
|---|
Onboard LAN| LAN Speed | 10/100/1000Mbps |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
|---|
Onboard Ports| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 5 x System fan headers 1 x M.2 slot 1 x MCIO 8i connector 1 x Front panel header 1 x Backplane board header 1 x PMBUS connector 1 x IPMB connector 1 x TPM header |
|---|
Dimensions| Form Factor | Micro ATX |
|---|
Packaging| Package Contents | 1 x MC13-LE2 1 x I/O shield 1 x Quick start guide 4 x SATA cables (500mm) |
|---|
Additional Information| First Listed on Newegg | April 25, 2025 |
|---|
