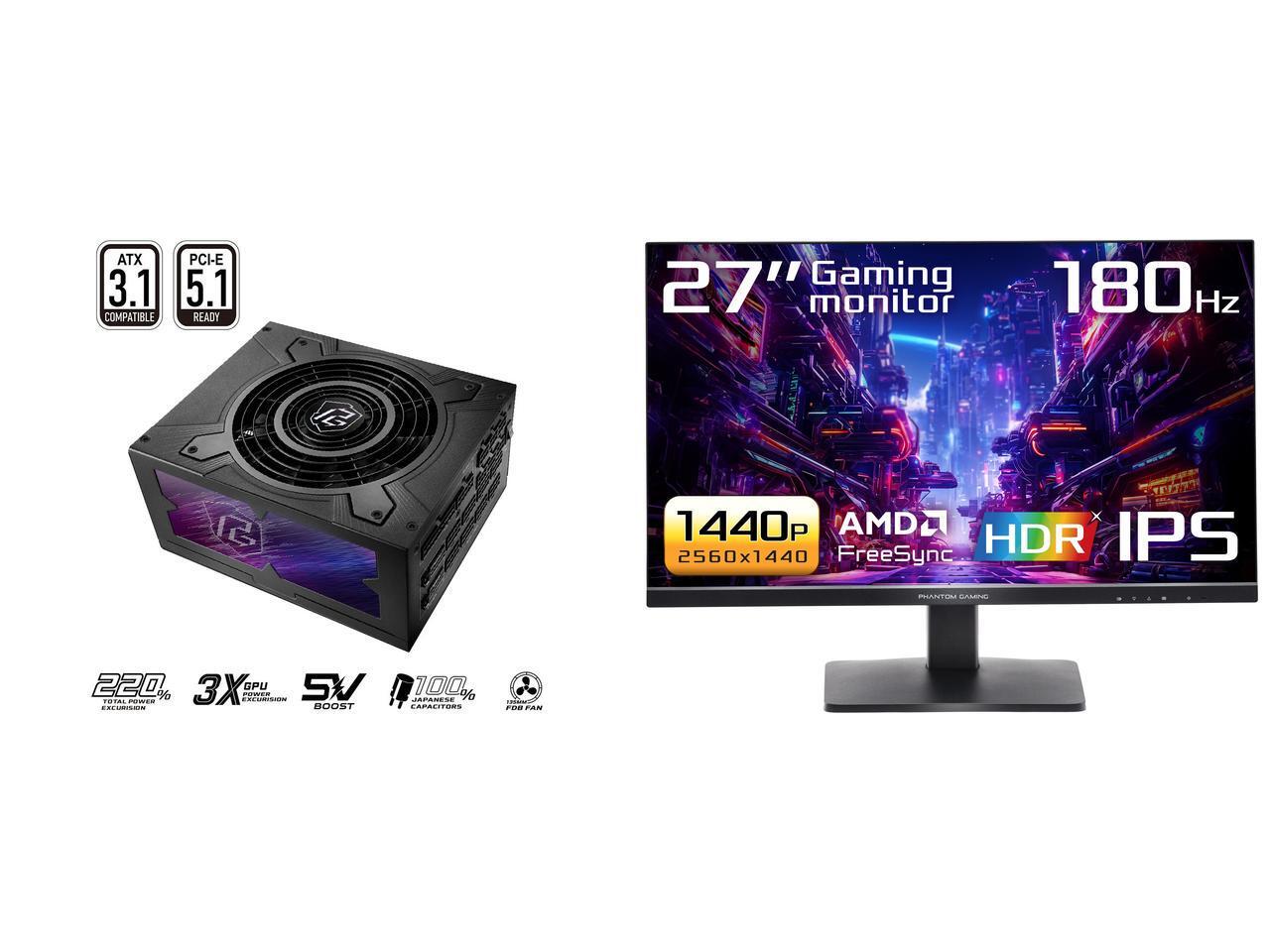

This Combo Includes 2 Items
PG-1600G
GOLD 1600W FULL MODULAR POWER SUPPLY
POWERFUL FUTURE
BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
Native PCIe 12V-2x6 Cable
Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
Cable Over-Temperature Protection
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.
+5V BOOST Mode
Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.
iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & CYBENETICS CERTIFIED
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.
CYBENETICS LAMBDA A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.
Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Features
- 27” QHD (2560 x 1440) Flat IPS Display
- 180Hz High Refresh Rate
- 1ms Response Time (MPRT)
- sRGB 99% Color Gamut
- Wide Viewing Angles (178-Degree)
- AMD FreeSync™ Technology
- VESA DisplayHDR™ 400
- Flicker Free Technology
- Low Blue Light Technology
- 2 x HDMI™ 2.0, 1 x DisplayPort™ 1.4
- Tilt Adjustment
Features
- 27” QHD (2560 x 1440) Flat IPS Display
- 180Hz High Refresh Rate
- 1ms Response Time (MPRT)
- sRGB 99% Color Gamut
- Wide Viewing Angles (178-Degree)
- AMD FreeSync™ Technology
- VESA DisplayHDR™ 400
- Flicker Free Technology
- Low Blue Light Technology
- 2 x HDMI™ 2.0, 1 x DisplayPort™ 1.4
- Tilt Adjustment
180Hz High Refresh Rate
Experience exceptional visual smoothness and dynamic performance with the 180Hz high refresh rate gaming monitor. Say goodbye to delays and blurriness!
QHD Resolution Display
Indulge in gaming with a QHD monitor featuring IPS panel technology for immersive visuals.
AMD FreeSync™ Technology
Removes screen tearing and stutter, creating a superior and ultra-smooth visual performance.
VESA DisplayHDR™ 400
Enjoy vivid, detailed images with precise color accuracy on the VESA DisplayHDR 400 certified monitor.
Flicker-Free Technology
Eliminates flicker, reducing eyestrain for a comfortable viewing experience.
Learn more about the ASRock PG-1600G
General| Brand | ASRock |
|---|
| Series | PG |
|---|
| Model | PG-1600G |
|---|
| Part Number | PG-1600G |
|---|
Details| Color | Black |
|---|
| Type | ATX3.1 & PCIe5.1 |
|---|
| Maximum Power | 1600 W |
|---|
| Fans | 135mm Striped Axial FDB Fan |
|---|
| Main Connector | 24Pin |
|---|
| +12V Rails | Single |
|---|
| PCI-Express Connector | 2 x 12+4-Pin, 8 x 6+2-Pin |
|---|
| SATA Power Connector | 12 |
|---|
| CrossFire | CrossFire Ready |
|---|
| Max PSU Length | 180 mm |
|---|
| Modular | Full Modular |
|---|
| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| PSU Noise Level | Cybenetics A |
|---|
| Over Voltage Protection | Yes |
|---|
| Overload Protection | Yes |
|---|
| MTBF | >100,000 Hours |
|---|
| Connectors | 1 x 24 pin ATX, 2 x 4+4 pin EPS 12V, 2 x 12+4 pin PCIe, 8 x 6+2 pin PCIe, 6 x 4 pin Peripheral, 12 x SATA |
|---|
Features| Features | 80 PLUS GOLD Certified, Cybenetics PLATINUM and LAMBDA A Certified, ATX 3.1 & PCIe 5.1 Ready, Fully Modular Cable Design, Native 12V-2x6 Connector Dual Color Design with TempGuard, 100% Highly Reliable Japanese Capacitors, 135mm Striped Axial FDB Fan, iCool Intelligent Fan Control Mode, 5V BOOST Mode, 10-Year Warranty, OCP/SCP/OVP/UVP/OTP/OPP Protections, Total Power Excursion 220% |
|---|
Dimension & Weight| Dimensions | 180mm x 150mm x 86mm |
|---|
Details| Power Rating | 1600W |
|---|
| Efficiency | > 87% |
|---|
Output| +12V1 Max. Current | 133.3A |
|---|
Connectors| 12V Power Connector | 2 x 4+4 Pin EPS 12V, 2 x 12+4 Pin PCIe5.1 12V |
|---|
| Peripheral Connector | 6 |
|---|
Fans| Fans Total Quantity | 1 |
|---|
| Top Fans Size | 135mm |
|---|
| Top Fans Bearing Type | Fluid Dynamic Bearing |
|---|
| Rear Fans Size | 135mm |
|---|
| Rear Fans Bearing Type | Fluid Dynamic |
|---|
Protection| Over Load Protection | Yes |
|---|
| Short Circuit Protection | Yes |
|---|
| Under Voltage Protection | Yes |
|---|
| Over Current Protection | Yes |
|---|
| Over Power Protection | Yes |
|---|
| Over Temperature Protection | Yes |
|---|
Additional Information| First Listed on Newegg | November 27, 2024 |
|---|
