This Combo Includes 2 Items

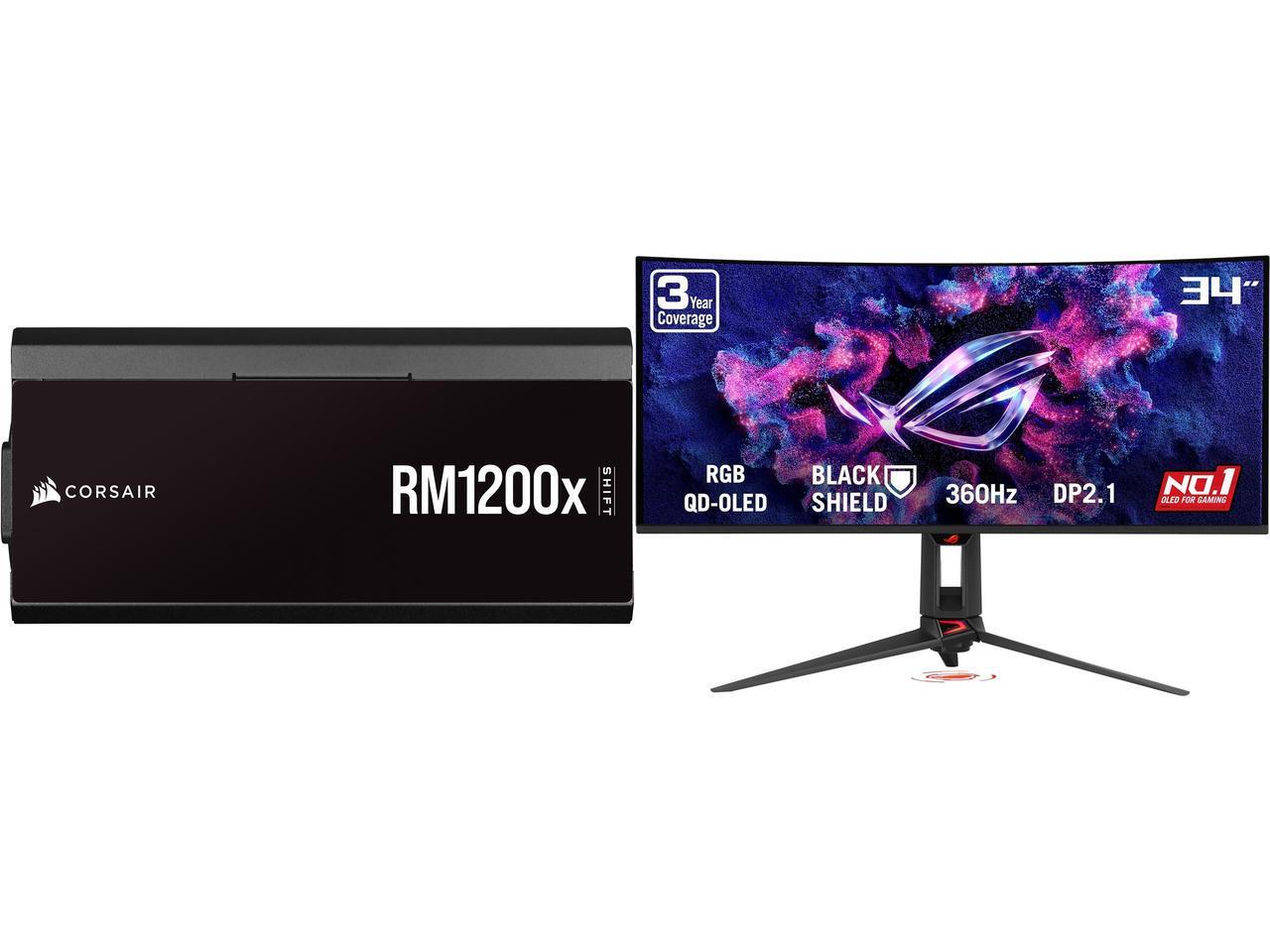

Learn more about the Corsair Corsair RM1200x
General| Brand | CORSAIR |
|---|
| Series | RMx SHIFT Series |
|---|
| Model | Corsair RM1200x |
|---|
| Part Number | cp-9020254-na |
|---|
Details| Type | ATX 3.1 |
|---|
| Maximum Power | 1200 W |
|---|
| Fans | 1 x 140mm fluid dynamic bearing fan |
|---|
| Main Connector | 1x 24-pin ATX (24-pin) Connector |
|---|
| PCI-Express Connector | 4 x 6+2-Pin |
|---|
| SATA Power Connector | 16 connectors |
|---|
| SLI | Yes |
|---|
| Haswell Support | Yes |
|---|
| Max PSU Length | 160 mm |
|---|
| Modular | full modular |
|---|
| Efficiency | > 87% |
|---|
| Energy-Efficient | 80 PLUS Gold, Cybenetics Gold certified |
|---|
| PSU Noise Level | cybenetics A- |
|---|
| Input Voltage | 100V a.c-240V a.c
200V a.c-240V a.c (Only for China &Korea) |
|---|
| Input Frequency Range | 47 - 63 Hz |
|---|
| Input Current | 15A-7.5A (100V a.c-240V a.c) 10A (200V a.c-240V a.c) |
|---|
| Output | +5V@20A, +3.3V@20A, +12V@100A, +5Vsb@3A |
|---|
| MTBF | >100000 hours |
|---|
| Connectors | 1 x ATX 2 x EPS 8 x PCIe 16 x SATA 8 x PATA |
|---|
| Cable Spec | 1x ATX CABLE 24-PIN (24): One cable (610mm) 2x EPS/ATX12V CABLE 8-PIN (4+4) : Two cables (650mm) 1x PCIe CABLE 12+4-PIN(12+4): One cable (650mm) 2x PCIe CABLE 8-PIN (6+2)X2: Two cables (650mm + 100mm) 4x PCIe CABLE 8-PIN (6+2): Four cables (650mm) 4x SATA CABLE (4 SATA - (right angle)): Four cables (450mm + 115mm + 115mm + 115mm) 2x PATA CABLE (4-PIN): Two cables (450mm + 100mm + 100mm + 100mm) |
|---|
Features| Features | Fully Modular, 80 PLUS Gold Certified, A- Noise Rating, Zero RPM Fan Mode, Modern Standby Support, Multi GPU Ready, 140mm FDB Fan, 10 Year Warranty, GEFORCE RTX 50 SERIES READY |
|---|
Dimension & Weight| Dimensions | 7.09" x 5.91" x 5.08" |
|---|
| Weight | 4.4 lbs |
|---|
Package| Package Content | 1x 24-pin ATX (24-pin) Connector 2x ATX 12V/EPS12V (4+4-pin) Connector 1x PCIe 5 (12+4-pin) 12VHPWR Connector 4x PCIe (6+2-pin, dual) Connectors 4x PCIe (6+2-pin) Connectors 16x SATA (Straight) Connectors 8x PATA Connectors |
|---|
Details| Power Rating | 1200W |
|---|
Connectors| 12V Power Connector | 2 x 8 pin EPS 12V, 1 x 24 pin ATX 12V |
|---|
| Peripheral Connector | 8 connectors |
|---|
Fans| Top Fans Size | 140 mm |
|---|
| Top Fans Bearing Type | Fluid Dynamic |
|---|
| Rear Fans Size | 140mm |
|---|
| Rear Fans Bearing Type | Fluid Dynamic Bearing |
|---|
Additional Information| First Listed on Newegg | January 31, 2023 |
|---|
