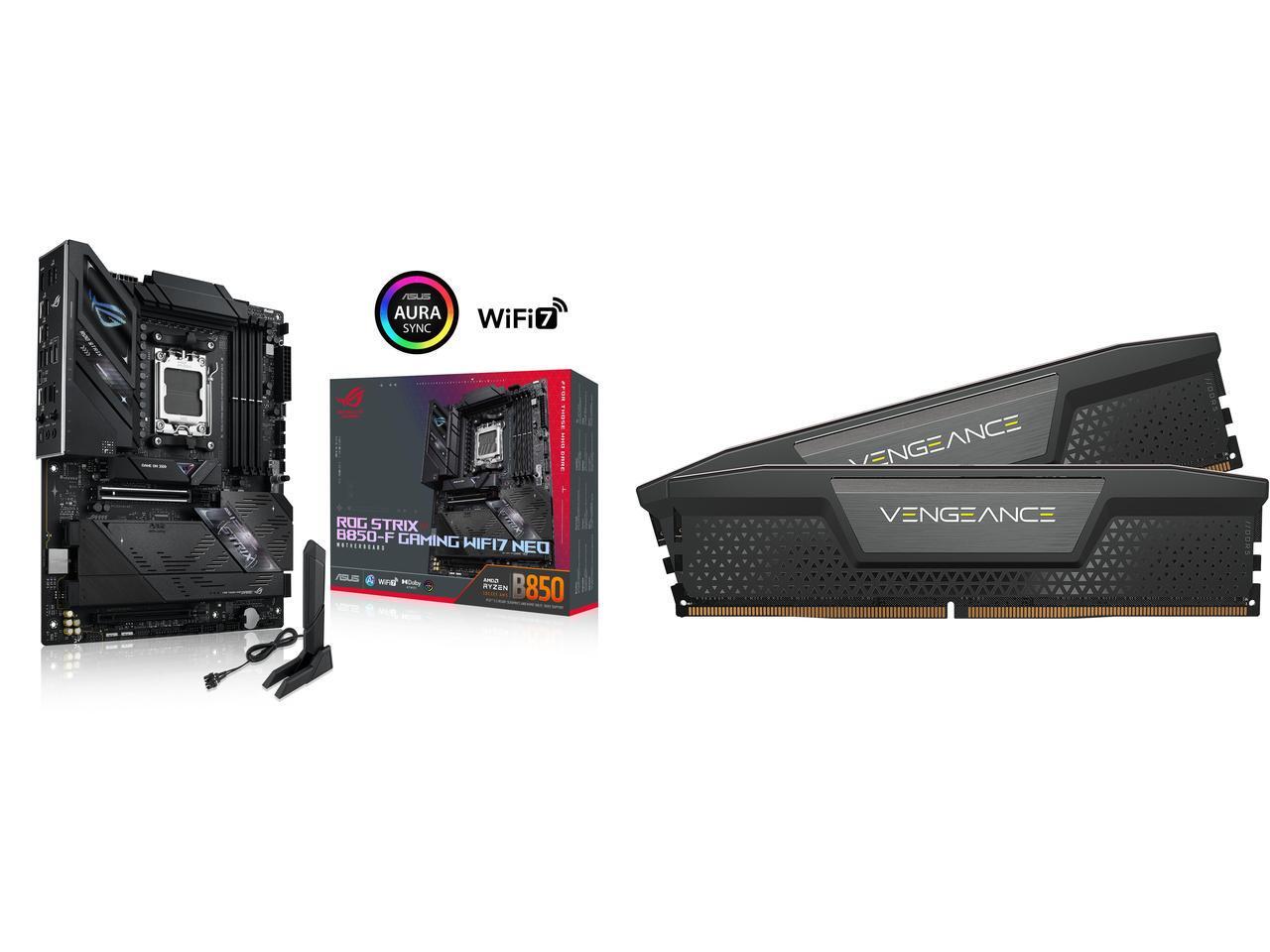

This Combo Includes 2 Items
Learn more about the ASUS ROG STRIX B850-F GAMING WIFI7 NEO
Model| Brand | ASUS |
|---|
| Model | ROG STRIX B850-F GAMING WIFI7 NEO |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots (supports x8 mode) AMD Ryzen 8500 & 8300 Series Desktop Processors 1 x PCIe 4.0 x16 slots (supports x4 mode) |
|---|
| PCI Express 4.0 x16 | AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 |
|---|
Storage Devices| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
* M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz sampling rate. |
|---|
Onboard LAN| Max LAN Speed | 5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 4 x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C) 6 x USB 5Gbps port(s) (5 x Type-A + 1 x USB Type-C) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 20Gbps connector (support(s) USB Type-C) 2 x USB 5Gbps header(s) support(s) 4 additional USB 5Gbps ports 3 x USB 2.0 header(s) support(s) 6 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s)
Miscellaneous 3 x Addressable RGB Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
|---|
Software Feature| BIOS Feature | 64 MB (512Mb) Flash ROM, UEFI AMI BIOS |
|---|
| Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - AIDA64 Extreme (60 days free trial) - HWiNFO - ASUS GlideX - TurboV Core - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|---|
Features| Features | Asynchronous Clock Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 header(s) |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 3x M.2 rubber package(s) 1 x M.2 backplate rubber package(s)
Documentation 1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | March 19, 2026 |
|---|
