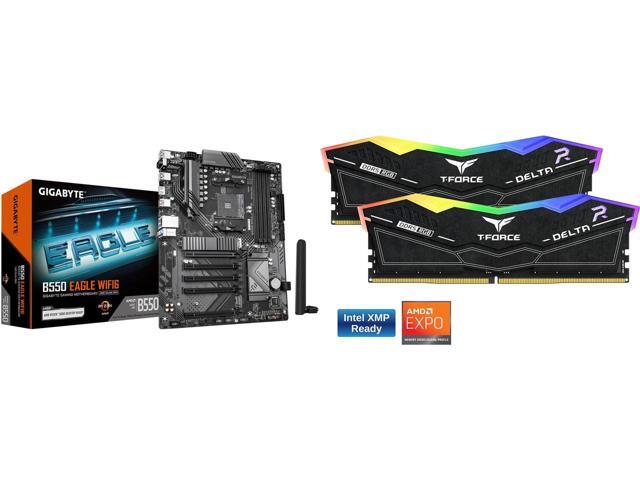

This Combo Includes 2 Items
Learn more about the GIGABYTE B550 EAGLE WIFI6
Model| Brand | GIGABYTE |
|---|
| Model | B550 EAGLE WIFI6 |
|---|
Supported CPU| CPU Socket Type | AM4 |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
Rear Panel Ports| USB 3.0 | 10 x USB 3.0 |
|---|
| HDMI | 1 x HDMI |
|---|
Physical Spec| Form Factor | ATX |
|---|
Memory| Number of Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
|---|
| Memory Standard | DDR4 2133 / DDR3 1600 / DDR4 2400 / DDR4 2667 / DDR4 2933 / DDR4 3200 |
|---|
Expansion Slots| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|
| PCI Express x16 | 1 x PCI Express x16 |
|---|
| PCI Express x4 | 3 x PCI Express x4 |
|---|
| PCI Express x1 | 2 x PCI Express x1 |
|---|
Onboard Audio| Audio Channels | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|---|
Onboard LAN| Max LAN Speed | (1 Gbps/100 Gbps/10 Mbps) |
|---|
Rear Panel Ports| eSATA | 1 x eSATA 3Gb/s |
|---|
Memory| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
Model| Series | Prime |
|---|
| Part Number | B550 EAGLE WIFI6 |
|---|
Supported CPU| CPU Type | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|---|
Memory| ECC Supported | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|---|
| Memory Feature | DDR4, 3200 MHz, 4, 128 GB |
|---|
Expansion Slots| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
|---|
| PCI Slots | 1 x PCI Slot |
|---|
Storage Devices| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs |
|---|
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|---|
Onboard LAN| LAN Chipset | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
|---|
| Wireless LAN | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|---|
| Bluetooth | BLUETOOTH 5.3 |
|---|
Rear Panel Ports| Back I/O Ports | 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
(Note) Actual support may vary by CPU. |
|---|
| PS/2 | 1 |
|---|
| COM | 3 |
|---|
| Video Ports | 1 |
|---|
| RJ45 | 1 x RJ45 |
|---|
| USB 3.1 | 2 x USB 3.1 |
|---|
| USB 1.1/2.0 | 9 x USB 2.0 |
|---|
| Game/MIDI Ports | 1 |
|---|
| Audio Ports | 6 Ports |
|---|
Internal I/O Connectors| Onboard USB | 2 x USB 3.0 + 8 x USB 2.0 |
|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
|---|
Physical Spec| Dimensions (W x L) | 30.5cm x 24.4cm |
|---|
| Power Pin | 24 Pin |
|---|
Software Feature| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
Features| Features | AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors Digital twin 10+3+1 phases VRM solution Dual Channel DDR4 : 4*DIMMs with AMD EXPO™Memory Module Support EZ-Latch : PCIe slots with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal : VRM Thermal Armor Advanced Fast Networking : GbE LAN & Wi-Fi 6 Extended Connectivity : HDMI, Displayport PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect |
|---|
Packaging| Package Contents | 1 unit |
|---|
Additional Information| First Listed on Newegg | March 25, 2025 |
|---|
