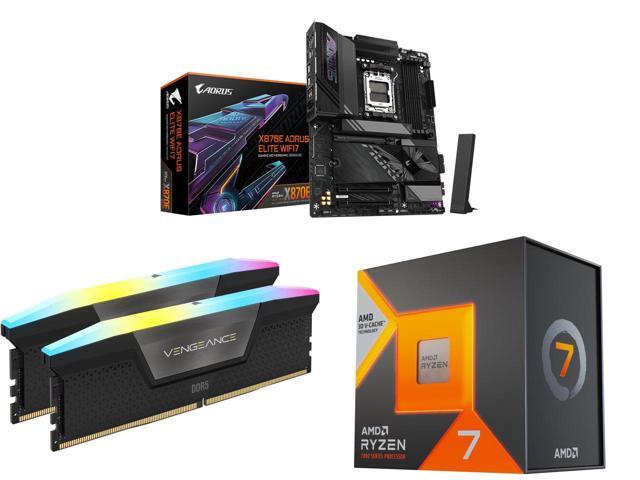

This Combo Includes 3 Items
AMD RYZEN™ 7 7800X3D PROCESSOR
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7800X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe 5.0® storage support, ultra-fast WiFi® 6E wireless, 8 cores/16 processing threads, and dedicated video accelerators, elevate your creator experience with an AMD Ryzen™ 7 7800X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0, supported through 2025.
Technical Specifications — AMD Ryzen™ 7 7800X3D
| Cores / Threads |
Total Cache |
Architecture |
TDP |
PCIe® Version |
Socket |
Unlocked for Overclocking |
Cooler |
| 8/16 |
104MB |
"Zen 4" |
120W |
5.0 |
AM5 |
Yes |
Cooling device not included - Processor Only |
Learn more about the GIGABYTE X870E AORUS ELITE WIFI7
Model| Brand | GIGABYTE |
|---|
| Model | X870E AORUS ELITE WIFI7 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Chipsets| Chipset | AMD X870E |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 5200 |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
|---|
Expansion Slots| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|---|
| PCI Express x4 | Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
|---|
| SATA RAID | 0/1/10 |
|---|
Onboard Audio| Audio Chipset | Realtek ALC1220 |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | BLUETOOTH 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x SMA antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers |
|---|
| Other Connectors | 1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
|---|
Software Feature| BIOS Feature | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
|---|
| Windows 11 | Supported |
|---|
Features| Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup |
|---|
Additional Information| First Listed on Newegg | September 30, 2024 |
|---|
