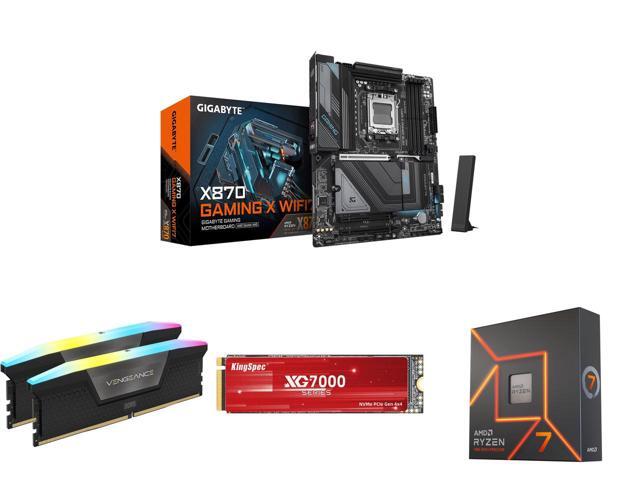

This Combo Includes 4 Items
Blazing Speed, Ultimate Experience
Powered by the PCIe 4.0 interface, this SSD delivers up to 7400MB/s read and 6600MB/s write speeds, enabling lightning-fast boot-ups, game loading, and large file transfers.
Massive Capacity for All Your Needs
With up to 8TB of storage, you can easily store AAA games, 4K/8K videos, creative assets, and more - ideal for both everyday and professional use.
Wide Compatibility Across Devices
Compatible with desktops, laptops, PS5, and NVMe-enabled NAS, thanks to its standard M.2 2280 form factor.
Intelligent Caching
Supports HMB technology and delivers up to 710K read / 670K write IOPS, ensuring faster load times, low latency, and a smooth, responsive gaming experience.
Consistent Performance & Long Lifespan
Built with premium 3D NAND flash and equipped with smart cache and ECC technology, ensuring reliable performance and data integrity even under heavy loads.
Efficient Thermal Management
Equipped with a graphene heatsink and intelligent thermal control algorithms that dynamically adjust the workload, it significantly reduces heat buildup and ensures stable performance during extended use.
Optimized for Gaming, Editing & Heavy Workloads
Whether you're gaming, editing 8K videos, or managing huge data sets, this SSD is engineered to handle intensive workloads with ease - a top choice for creators and professionals.
3-Year Warranty for Peace of Mind
Backed by a 3-year warranty, offering long-term reliability you can count on for everyday use and beyond.
The ultimate gaming and streaming experience
Whatever the setting, whatever the resolution, lead your team to victory with AMD Ryzen™ 7 7700X, a superb 8-core gaming processor.
The world's most advanced PC processor
Experience the speed of AMD Ryzen™ 7 7700X desktop processor. Build a rig with the winning performance you need to dominate the games you love.
The latest technologies from AMD
AMD Ryzen™ 7 7700X processor is built to help you beat the clock with time-saving connectivity like PCle® 5.0, 16 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0.
Learn more about the GIGABYTE X870 GAMING X WIFI7
Model| Brand | GIGABYTE |
|---|
| Model | X870 GAMING X WIFI7 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 5200 |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
|---|
Expansion Slots| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|
| PCI Express x1 | Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | BLUETOOTH 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers |
|---|
| Other Connectors | 1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector |
|---|
Software Feature| BIOS Feature | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
|---|
Features| Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
|---|
Additional Information| First Listed on Newegg | September 30, 2024 |
|---|
