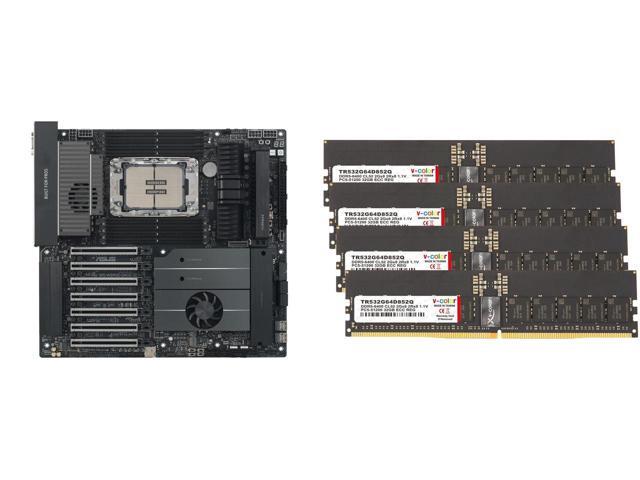

This Combo Includes 2 Items

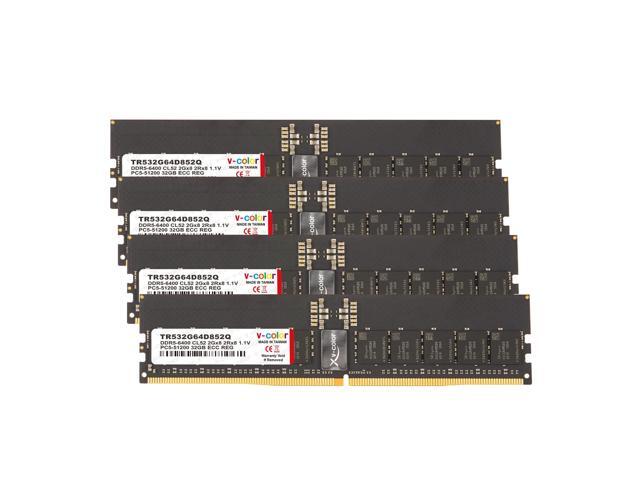

Equipped with high quality Hynix IC. Each IC is tested rigorously with auto sorting equipment designed by v-color.
FOR WORKSTATION MOTHERBOARDS. NOT COMPATIBLE WITH DESKTOP PC AND LAPTOP.
Supports ECC functionality to detect and correct data errors and features a built-in temperature-monitoring thermal sensor to prevent overheating, thereby enhancing memory reliability.
Operating temperature range: 0 to 85 °C
Limited Lifetime Warranty
Learn more about the ASUS Pro WS W890E-SAGE SE
Model| Brand | ASUS |
|---|
| Model | Pro WS W890E-SAGE SE |
|---|
Supported CPU| CPU Socket Type | LGA 4710 |
|---|
| CPU Type | Xeon 600 (LGA4710) |
|---|
Chipsets| Chipset | Intel W890 |
|---|
Memory| Number of Memory Slots | 8x288pin (DDR5) |
|---|
Expansion Slots| PCI Express 5.0 x16 | Intel Xeon 690/670/650 Series Processors* 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)** Intel Xeon 630 Series Processor* 7 x PCIe 5.0 slot(s) (Seven at x16/x0/x16/x0/x16/x0/x16)**
*** CXL (Compute Express Link) is only supported in PCIEX16(G5)_1, PCIEX16(G5)_3, PCIEX16(G5)_5, and PCIEX16(G5)_7 |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | Intel Xeon 690/670/650 Series Processors** M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) MCIO connector (supports PCIe 5.0 x8, and runs at x4/x4) Intel Xeon 630 Series Processor** M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|---|
Rear Panel Ports| Back I/O Ports | 1 x Clear CMOS Button / 1 x D-Sub / 1 x Flash BIOS Button / 2 x LAN (RJ45) / 2 x Mini DisplayPort / 2 x USB4 / 6 x USB 3.2 Gen 2 Type-A |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 20Gbps connector (support(s) USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) 2 x 4-pin VRM Fan header (with one of the VRM fans onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Miscellaneous 2 x Addressable RGB Gen 2 header(s) 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x Reset(FlexKey) button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x M.2 slot (Key E) 7 x Probelt measurement points 1 x ReTry button 3 x RSVD header(s)/switch(s) 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin Front Panel System header 1 x RTC Battery header 1 x VROC key header 1 x Thermal Sensor header |
|---|
Software Feature| BIOS Feature | 512Mb Flash ROM, UEFI AMI BIOS(text-based) |
|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey |
|---|
Physical Spec| Form Factor | EEB |
|---|
| Dimensions (W x L) | 12.0" x 13.0" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector |
|---|
Features| Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design - Fan-based active cooling design for VRM and M.2 heatsinks ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable RGB Gen 2 header(s) Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x 4-pin to 24-pin adapter cable for ATX power connector Additional Cooling Kit 1 x AngleBoost Fan Kit 2 x Thermal pad for M.2 22110 Miscellaneous 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x Screw package for M.2 Key E 1 x AMI license sticker 1 x M.2 backplate rubber package(s) 1 x E2A CPU carrier (for Intel Xeon 690 Series Processors) 1 x E2B CPU carrier (for Intel Xeon 670/650/630 Series Processors) Documentation 1 x ACC Express activation key card 1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | April 24, 2026 |
|---|
