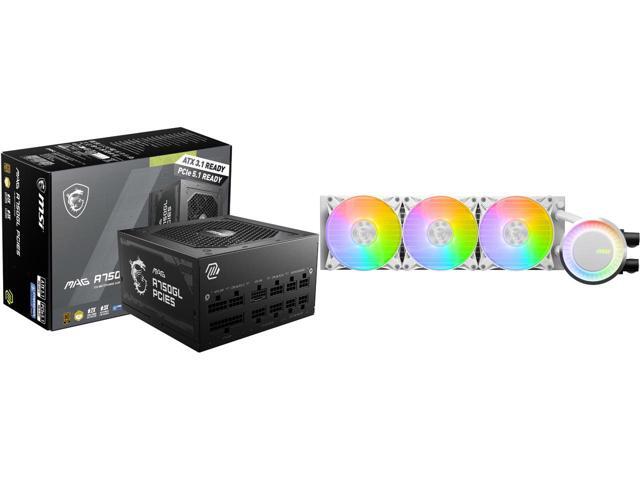

This Combo Includes 2 Items
Overflow with Power
The MAG A750GL PCIE5 power supply offers 80 PLUS Gold-certified energy efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 450W), and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.
80 PLUS Gold
The efficiency of a power supply directly influences system performance and power consumption.
An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.
ATX 3.0 Compatible, Fully Modular
Being ATX 3.0 compatible, the MAG A750GL PCIE5 power supply can handle up to 2x total power excursions and 3x GPU power excursions.
A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.
PCIe 5.0 GPU Supported
The MSI MAG A750GL PCIE5 power supply features extra GPU power feeds (3 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.
Alternatively, through the native 16-pin PCIe connector, the PSU can provide up to 450W of power to a PCIe 5.0 GPU.
Compact Size
A compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.
Flat Black Cables
The flat black cables allow for improved cable management and provide more space for airflow.
Because of its fully modular design, only the necessary cables need to be plugged in and the rest can be stored in the supplied cable bag.
Fluid-Dynamic Bearing Fan
Developed for quiet and stable operation, a 120 mm Fluid-Dynamic Bearing fan achieve a good balance between cooling performance and noise level.
Extensive Connectivity
By offering a wide range of connectivity options, the MAG A750GL PCIE5 power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.
The cable connectors are made of premium copper alloy, which offers better current surge protection than generic phosphor bronze.
Output Specifications
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.
MAG CORELIQUID E360 WHITE
The Colder, The Better
The MAG CORELIQUID E Series AIO CPU liquid coolers are inspired by a solar eclipse, presented with Mystic Light ARGB lighting. This innovative product combines advanced cooling technology with a striking visual design.
Effective Cooling System
Effectively reducing the temperature of the heat source, the water block of the MAG CORELIQUID E series can separate hot and cold coolant into different chambers to lower the temperature of the heat source.
A durable three-phase motor at the pump's core generates minimal vibrations for long-lasting operation.
Full CPU Coverage
With multi-die CPU layouts, notably AM5 processors, the hotspot can sometimes be off center.
In response to this trend, the MAG CORELIQUID E-Series has an enlarged cold plate area.
MSI Center Support
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through MSI motherboard:
- Silent, Game Mode, and Balanced profiles
- Customizable radiator fan speed curves
- Customizable pump speed curves
Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths. This improves thermal dissipation between coolant and fan-cooled air.
Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.
Enhanced Micro-Channels
The internal contact between the coolant and the copper cold plate features more micro-channels with deeper profiles.
These upgrades significantly increase the internal surface area, which in turn improves efficiency at the heart of the system.
Rotatable Eclipse Blockhead
Inspired by the solar eclipse, the manually rotatable ARGB blockhead with MSI logo (up to 270°) can be aligned with any system orientation.
The ARGB blockhead & fan lighting effects can customized through the Mystic Light utility within MSI Center software.*
* Requires 5V ARGB MSI motherboard header (3-pin)
Fan Construction
Fluid Dynamic Bearing (FDB) fans are widely recognized for their exceptional efficiency & durability, making them the premium choice for liquid cooling solutions.
The fan blades are made of high-purity acrylic for vivid light diffusion.
The MAG CORELIQUID E360 WHITE also includes an optional low-noise adapter cable that limits fan speeds for quieter performance.
AMD & Intel CPU Socket Compatible
Supported Intel CPU socket types:
- LGA 1700, 1200, 1156, 1155, 1151, 1150
Supported AMD CPU socket types:
Includes thermal paste, mounting screws and cables.
Learn more about the MSI MAG A750GL PCIE5
General| Brand | MSI |
|---|
| Model | MAG A750GL PCIE5 |
|---|
Details| Color | Black |
|---|
| Type | ATX12V |
|---|
| Maximum Power | 750 W |
|---|
| Fans | 1 x 120 mm |
|---|
| PFC | Active |
|---|
| SATA Power Connector | 5 |
|---|
| Max PSU Length | 150 mm |
|---|
| Modular | Full Modular |
|---|
| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| Protection | OVP, OCP, OTP, OPP , SCP, UVP |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Input Frequency Range | 47 - 63 Hz |
|---|
| Input Current | 10A (Max.) |
|---|
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
|---|
| Connectors | 1 x MB (24/20 pins)
2 x CPU (8/4 pins)
3 x PCIe (8/6 pins)
1(450W) x 12VHPWR (PCI-E 5.0)
8 x SATA
4 x Molex
1 x Molex to FDD Adapter |
|---|
Dimension & Weight| Dimensions | 11.81 * 8.66 * 4.92" |
|---|
Additional Information| First Listed on Newegg | July 20, 2023 |
|---|
