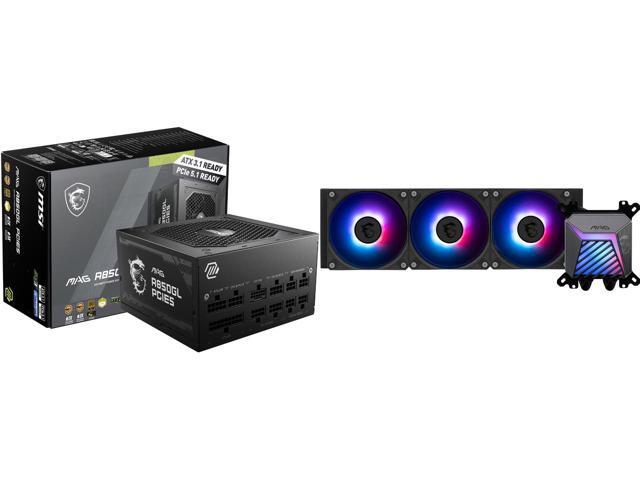

This Combo Includes 2 Items
Overflow with Power
The MAG A850GL PCIE5 power supply offers 80 PLUS Gold-certified energy efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 600W), and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.
80 PLUS Gold
The efficiency of a power supply directly influences system performance and power consumption.
An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.
ATX 3.0 Compatible, Fully Modular
Being ATX 3.0 compatible, the MAG A850GL PCIE5 power supply can handle up to 2x total power excursions and 3x GPU power excursions.
A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.
PCIe 5.0 GPU Supported
The MSI MAG A850GL PCIE5 power supply features extra GPU power feeds (4 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.
Alternatively, through the native 16-pin PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.0 GPU.
Compact Size
A compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.
Flat Black Cables
The flat black cables allow for improved cable management and provide more space for airflow.
Because of its fully modular design, only the necessary cables need to be plugged in and the rest can be stored in the supplied cable bag.
Fluid-Dynamic Bearing Fan
Developed for quiet and stable operation, a 120 mm Fluid-Dynamic Bearing achieves a good balance between cooling performance and noise level.
Extensive Connectivity
By offering a wide range of connectivity options, the MAG A850GL PCIE5 power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.
The cable connectors are made of premium copper alloy, which offers better current surge protection than generic phosphor bronze.
Output Specifications
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.
Effortless assembly, endless possibilities
The MAG CORELIQUID A15 embodies a bold military-inspired design, featuring sharp, angular lines that exude strength and precision. A refined paint finish combined with brushed aluminum accents elevates the cooler head’s premium look. Paired with ARGB GEN2 lighting effects, it highlights the striking mix of materials, delivering eye-catching details that will make your setup truly stand out.
Full CPU Coverage
The new generation full-plane copper base eliminates the traditional screw perforation design, significantly enhancing water-tightness and ensuring more reliable system operation. Equipped with a precise 0.1mm micro-channel design, it efficiently absorbs CPU heat and works in tandem with the high-performance pump to quickly dissipate heat, delivering exceptional cooling performance.
Improved Water Channel Design
Improved water channel design works seamlessly with the high-flow pump, efficiently dissipating the heat absorbed by the copper base. This ensures excellent cooling performance, keeping the system cool and stable even under heavy loads, elevating both performance and reliability to new heights.
ARGB GEN2
Through MSI Center, ARGB GEN2 lighting effects are easily controlled, with indirect lighting subtly integrated into the curved grooves, creating a vibrant interplay of colors and shadows that highlights the product's understated and refined design. The frosted exterior finish perfectly complements the steel-gray painted cover, with only the semi-transparent MSI logo exposed. The light from the logo harmonizes with the rounded corners, delivering an exquisite visual experience.
CycloBlade 9 hybrid blade design
MSI's CycloBlade 9 fan features a hybrid blade design, delivering powerful airflow and high static pressure. This ensures extreme cooling performance during intense gaming while maintaining low noise levels for an immersive experience. Additionally, the ARGB GEN2 lighting effects make your rig stand out on the battlefield, making it the ultimate choice for esports players.
Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths.
This improves thermal dissipation between coolant and fan-cooled air.
Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.
Adjustable Offset kit
The adjustable offset kit provides 2 positions and allows for precise adjustment base on the position of the CPU, ensuring optimal alignment and significantly improving the cooling performance.
MSI Center Optimization
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through an MSI motherboard:
- Silent, Game Mode, and Balanced profiles
- Customizable radiator fan speed curves
UNI Bracket
The pre-installed and easy-to-use UNI Bracket supports both Intel and AMD sockets, significantly reducing assembly time and improving the quality of DIY builds for gamers.
Learn more about the MSI MAG A850GL PCIE5
General| Brand | MSI |
|---|
| Model | MAG A850GL PCIE5 |
|---|
| Series | RMx Series |
|---|
Details| Type | ATX12V |
|---|
| Maximum Power | 850 W |
|---|
| Modular | Full Modular |
|---|
| Fans | 1 x 120 mm |
|---|
| PFC | Active |
|---|
| Main Connector | 20+4Pin |
|---|
| +12V Rails | Single |
|---|
| SATA Power Connector | 8 |
|---|
| Efficiency | > 80% |
|---|
| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Input Frequency Range | 47 - 63 Hz |
|---|
| Input Current | 12A |
|---|
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
|---|
| Approvals | true |
|---|
Dimension & Weight| Dimensions | 140 x 150 x 86 mm |
|---|
| Weight | 2.82 kilograms |
|---|
Details| Connectors | 1 x MB (24/20 pins)
2 x CPU (8/4 pins)
4 x PCIe (8/6 pins)
1 x 12VHPWR (PCI-E 5.0)
8 x SATA
4 x Molex
1 x Molex to FDD Adapter |
|---|
| Color | Black |
|---|
| Fan LED | RGB |
|---|
| Max PSU Length | 150 mm |
|---|
| Protection | OVP, OCP, OTP, OPP , SCP, UVP |
|---|
| Cable Spec | 20_plus_4_pin_atx, 1, ATX |
|---|
Package| Package Content | a850gl, MPG A850GL, 1, false |
|---|
Details| Type | ATX 12V |
|---|
| Power Rating | 600W |
|---|
| Peak Power | 850 watts |
|---|
| +12V Rails | 2 |
|---|
| SLI | Certified |
|---|
| Modular | No |
|---|
| Efficiency | > 85% |
|---|
| Approvals | true, not_applicable |
|---|
Input| Frequency Range | 50/60 Hz |
|---|
| Input Current | 10A @ 115V, 5A @ 230V |
|---|
Output| +3.3V Max. Current | 8A |
|---|
| +12V1 Max. Current | 9A |
|---|
| +12V2 Max. Current | 10A |
|---|
| +12V3 Max. Current | 30A |
|---|
| +12V4 Max. Current | 28A |
|---|
| +12V5 Max. Current | 29A |
|---|
| +12V6 Max. Current | 28A |
|---|
| +5VSB Max. Current | 5A |
|---|
Connectors| Main Connector | 20+4 Pin |
|---|
| 12V Power Connector | 1 x 4 Pin ATX 12V |
|---|
| SATA Power Connector | 16 |
|---|
| Floppy Connector | 1 |
|---|
| Peripheral Connector | 1 |
|---|
Fans| Fans Total Quantity | 1 |
|---|
| Top Fans Size | 120mm |
|---|
| Top Fans Noise Level | Air |
|---|
| Rear Fans Size | 120mm |
|---|
Feature| Features | a850gl, Full Modular, full, Air, ATX, 10 Year Limited Manufacturer, 850W (PCIE 5), MAG A850GL PCIE5 |
|---|
Dimensions & Weight| Dimensions | 20' |
|---|
| Weight | 2.82 kilograms |
|---|
Details| Size/Dimensions | 12 in x 8.75 in x 4.92 in |
|---|
Additional Information| First Listed on Newegg | July 06, 2023 |
|---|
