2 Item Combo

$379^.98

$439.98

In stock. Limit 2 per customer.

Build with it

Sold by Newegg

Shipped by Newegg

Combo Return Policy

Newegg.com cannot guarantee the compatibility of Combo items. Please contact the manufacturer(s) directly if you have issues or concerns regarding compatibility.
Some combos are restricted from returning individual products for a refund and must be returned in their entirety.
Combos may be removed from orders if any item is out of stock, or if you order a quantity beyond the set limit.
Using PC components and systems for cryptocurrency mining is known to significantly decrease the lifespan of the product due to overuse. This includes, but is not limited to: CPUs, video cards, solid-state and hard disk drives. In general, Newegg will not accept returns of products which have exceeded the product’s lifespan due to overuse.
See the Combo Specials Return Policy

Combo: 4878161

double click image to zoom in

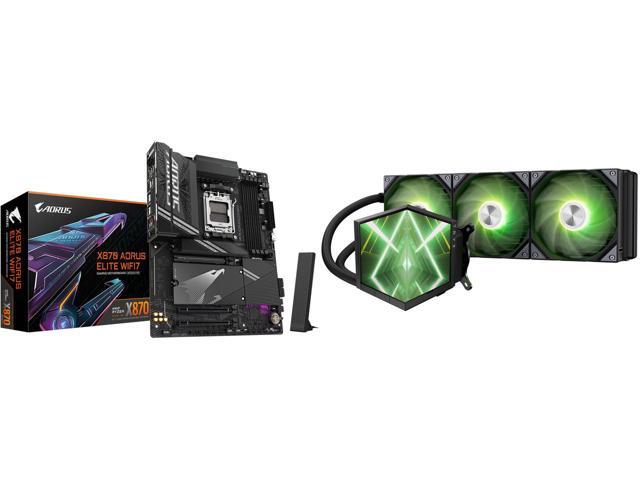

Motherboard CPU Cooler Combo - GIGABYTE X870 AORUS ELITE WIFI7 Bundle with TRYX L-S360A-DM3M-G0K

AMD Motherboards

Water / Liquid Cooling

"AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
DDR5 Compatible: 4*DIMMs with AMD EXPO Support
Power Design: 16+2+2
Thermals: VRM and M.2 Thermal Guard
Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
Networking: Wi-Fi 7, 2.5GbE LAN
5-Year Warranty

This Combo Includes 2 Items

Overview

Specs

Reviews

Products	STAGE 360 ARGB	STAGE 360 ARGB WH	PANORAMA SE 360 ARGB	PANORAMA SE 360 ARGB WH	PANORAMA 360 ARGB	PANORAMA 360 ARGB WH
Display Type	IPS	IPS	AMOLED	AMOLED	AMOLED	AMOLED
Screen Size	4.0 inch x 2	4.0 inch x 2	6.67 Inch	6.67 Inch	6.67 Inch	6.67 Inch
Screen Resolution	254PPI	254PPI	372PPI	372PPI	372PPI	372PPI
Screen Rotation	No	No	90°/180°	90°/180°	No	No
Cooling Solution	Asetek 7th Gen V2	Asetek 7th Gen V2	Asetek Adela	Asetek Adela	Asetek 8th Gen V2	Asetek 8th Gen V2
Item TDP	280w TDP	280w TDP	280w TDP	280w TDP	320w TDP	320w TDP
Fan ARGB Control	Motherboard	Motherboard	Motherboard	Motherboard	KANALI / Motherboard	KANALI / Motherboard
Fan Air Pressure	2.49mmAq	2.49mmAq	1.8mmAq	1.8mmAq	2.49mmAq	2.49mmAq
Radiator Thickness	27mm	27mm	27mm	27mm	30mm	30mm
Coverage	Cooler 6 Years/ Screen 3 Years	Cooler 6 Years/ Screen 3 Years	Cooler 6 Years/ Screen 2 Years	Cooler 6 Years/ Screen 2 Years	Cooler 6 Years/ Screen 2 Years	Cooler 6 Years/ Screen 2 Years

ITEM TECHNICAL FEATURES

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5200
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

PCI Express 5.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4	Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID	0/1/10

Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

BIOS Feature	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software	Norton Internet Security (OEM version) LAN bandwidth management software
Windows 11	Supported
