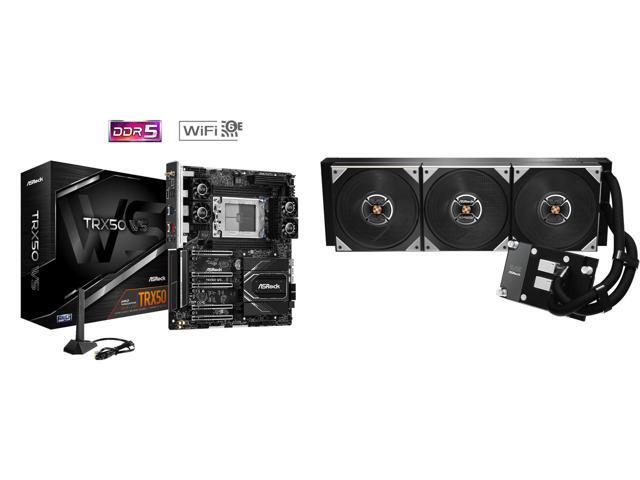

Motherboard CPU Cooler Combo - ASRock TRX50 WS Bundle with ASRock WS TR 360D

Server Motherboards

Water / Liquid Cooling

Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series and AMD Ryzen Threadripper 9000/7000 Series Processors
18+3+3 Power Phase Design, 110A SPS for VCore
4 x DDR5 DIMMs Supports Quad Channel ECC Registered memory, up to 7600+ (OC)
3 PCIe 5.0 x16, 2 PCIe 4.0 x16
Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 MCIO (PCIe Gen5x4), 2 SlimSAS (PCIe Gen4x4 / 4 SATA3)
1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (Front)
Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN
802.11ax WiFi 6E + Bluetooth

This Combo Includes 2 Items

ASRock TRX50 WS Extended ATX Motherboards supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series, AMD Ryzen Threadripper 9000/7000 Series Processors

(4)

ASRock TRX50 WS Extended ATX Motherboards supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series, AMD Ryzen Threadripper 9000/7000 Series Processors

$699^.99 –

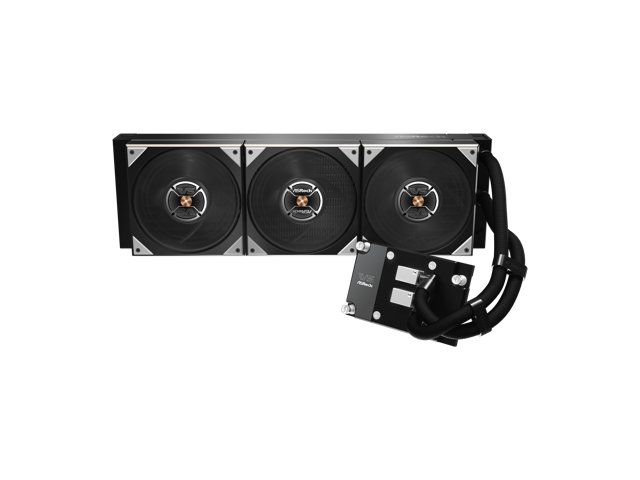

ASRock WS TR 360D 360mm AIO Liquid CPU Cooler for AMD Threadripper sTR5/SP6/sWRX9/sWRX8/sTRX4/TR4/SP3, Dual-Pump Redundancy with Alarm, Brazed Full-Copper Cold Plate, 6-Year Warranty

$429^.99 –

Specs

Reviews

Learn more about the ASRock TRX50 WS


Best Seller Ranking	#49 in Server Motherboards

Model
Brand	ASRock
Model	TRX50 WS

Supported CPU
CPU Socket Type	Socket sTR5
CPU Type	Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series and AMD Ryzen Threadripper 9000/7000 Series Processors

Chipsets
North Bridge	AMD TRX50

Memory
Memory Slots	4 x DDR5 288-pin
Memory Standard	DDR5 7600 (OC)
Maximum Memory Supported	1TB
Channel Supported	Quad Channel
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express 5.0 x16	CPU: - 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)*
PCI Express 4.0 x16	- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* * Supports NVMe SSD as boot disks

Storage Devices
SATA	4 x SATA 6.0Gb/s
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x MCIO PCIe Gen5x4 Connector - 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Onboard Audio
Audio Channels	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio

Communication
Max LAN Speed	1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless LAN	- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support * Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. * A 6GHz compatible router is required for 6E functionality. - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.

Ports and Connectors
Back I/O Ports	2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Other Connectors	2 x Thermistor Cable Headers 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 2 x Addressable LED Headers* 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 3 pin ATX Power Connector* 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)***** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). * CPU_FAN2/WP supports the fan power up to 2A (24W). ** CHA_FAN1~3/WP support the fan power up to 2A (24W). * Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU. ** It is required to connect both ATX12V1 and ATX12V2; otherwise, the system may not boot up properly. ** It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking. ***** It is required to connect a 6 pin PCIE 12V Power Cable to GFX_12V1; otherwise, the system may not boot up properly.

Features
Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Quad Channel DDR5 Rock-Solid Durability - Ultra Low-Loss PCB - 18+3+3 Power Phase, 110A SPS Design - Pre-Installed I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 10.9"

Packaging
Package Contents	1 x User Manual 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Thermistor Cables 1 x Multi PSU Adaptor Cable 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets

Additional Information
First Listed on Newegg	November 21, 2023
