Combo: 4878719
double click image to zoom in

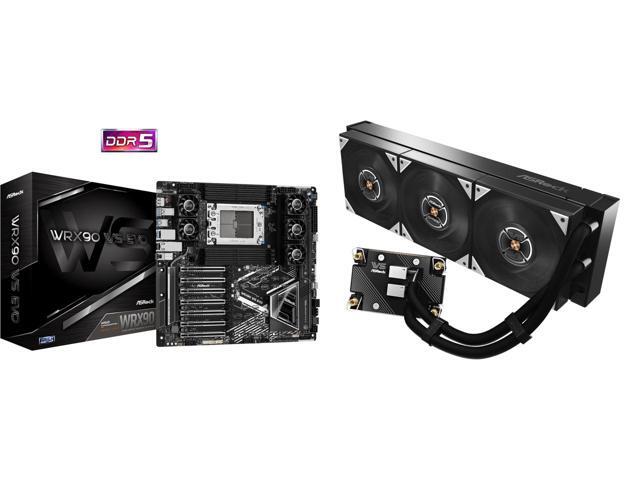

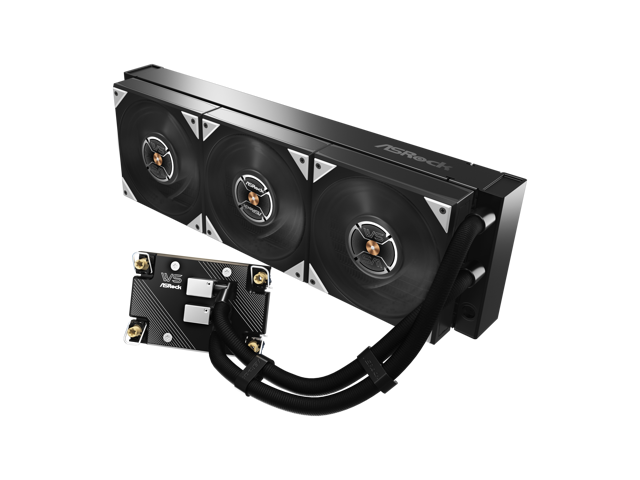

Motherboard CPU Cooler Combo - ASRock WRX90 WS EVO Bundle with ASRock WS XE 360D
- Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
- 18+3+3 Power Phase Design, 110A SPS Design for VCore
- 8 x DDR5 DIMMs Supports Eight Channel ECC Registered memory, up to 7600+ (OC)
- 7 PCIe 5.0 x16
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 2 MCIO Connector (PCIe Gen5x4/ 4 SATA3), 1 SlimSAS SFF-8654 Connector (PCIe Gen4x4), 1 SlimSAS SFF-8654 Connector (PCIe Gen4x4/ 4 SATA3)
- 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 4 USB 3.2 Gen2 Type-A(Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (4 Front)
- Intel X710 dual 10G LAN, 1 Dedicated IPMI LAN
This Combo Includes 2 Items
Specs
Reviews
Learn more about the ASRock WRX90 WS EVO
| Best Seller Ranking | #35 in Server Motherboards |
|---|
| Brand | ASRock |
|---|---|
| Model | WRX90 WS EVO |
| CPU Socket Type | Socket sTR5 |
|---|---|
| CPU Type | Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors |
| North Bridge | AMD WRX90 |
|---|
| Memory Slots | 8 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 7600 (OC) |
| Maximum Memory Supported | 2TB |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 5.0 x16 | CPU: - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)* - 15µ Gold Contact in VGA PCIe Slots *Supports NVMe SSD as boot disks |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| SAS | 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) |
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode* - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| Audio Channels | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| Max LAN Speed | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s - Support PXE 1 x Dedicated IPMI (Realtek RTL8211F) |
| Back I/O Ports | 1 x DisplayPort 1.1a 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 2 x USB 3.2 Gen1 Type-A Ports 2 x RJ-45 LAN Ports 1 x RJ45 Dedicated IPMI LAN Port 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) *USB_TC1 supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging; USB_TC2 supports USB PD 3.0 up to 5V@3A (15W) charging. |
|---|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Other Connectors | 2 x Thermistor Cable Headers 1 x Front VGA Header 1 x COM Port Header 1 x Power LED and Speaker Header 1 x Intelligent Platform Management Bus Header 1 x PSU SMBus Header 1 x BMC SMBus Header 1 x Auxiliary Panel Header 2 x Addressable LED Headers* 1 x CPU Fan Connector (4-pin)** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 3 pin ATX Power Connector***** 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)******* 1 x Right Angle Front Panel Audio Connector 2 x SGPIO Headers 1 x CPU HP-SMBus Connector 1 x Non Maskable Interrupt Button Header 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Clear CMOS Button |
| Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Eight Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Ultra Low-Loss PCB - 18+3+3 Power Phase, 110A SPS for VCore - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - Dual Intel 10G LAN EZ Update - ASRock Auto Driver Installer |
|---|
| Form Factor | EEB |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | February 22, 2024 |
|---|
