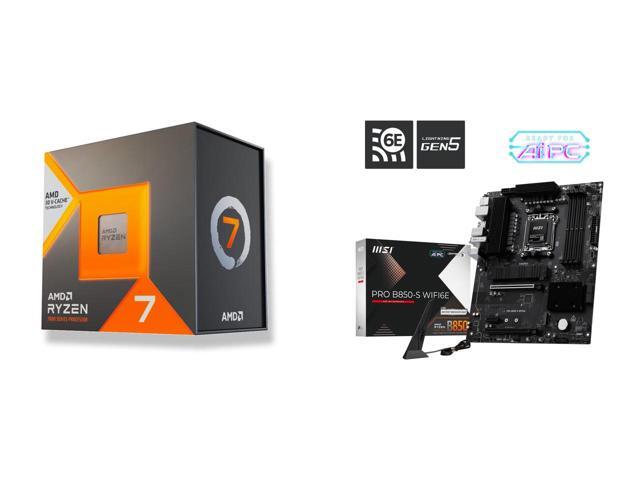

This Combo Includes 2 Items
AMD RYZEN™ 7 7700X3D PROCESSOR
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7700X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe 5.0® storage support, ultra-fast WiFi® 6E wireless, and 8 cores/16 processing threads, elevate your creator experience with an AMD Ryzen™ 7 7700X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0.
Technical Specifications — AMD Ryzen™ 7 7700X3D
| Cores / Threads |
Total Cache |
Architecture |
TDP |
PCIe® Version |
Socket |
Cooler |
| 8/16 |
104MB |
"Zen 4" |
120W |
5.0 |
AM5 |
Cooling device not included - Processor Only |
Business Elegance
The PRO B850-S WIFI6E is a business-oriented ATX motherboard with a 12 Duet Rail Power System, constructed around the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0 M.2, 2.5G LAN, Wi-Fi 6E and DDR5 that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO B850-S WIFI6E motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD B850
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B850-S WIFI6E is able to sustain heavy CPU power loads to support system-demanding settings:
- Digital PWM IC
- 12 Duet Rail Power System (P-PAK)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: VRM heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)
1 x PCIe 4.0/3.0 x4 slot
1 x PCIe 3.0 x1 slot
Gen5 M.2 Connector
The PRO B850-S WIFI6E motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)
1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
- 2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
- Wi-Fi 6E: Features the Wi-Fi 6E solution (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
- USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
- HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Learn more about the Ryzen 7 7700X3D
Model| Brand | AMD |
|---|
| Processors Type | Desktop |
|---|
| Series | Ryzen 7 7000 Series |
|---|
| Name | Ryzen 7 7700X3D |
|---|
| Model | 100-100002235WOF |
|---|
Details| Processor Architecture | Zen 4 |
|---|
| CPU Socket Type | Socket AM5 |
|---|
| Core Name | Raphael (Zen 4) |
|---|
| # of Cores | 8-Core |
|---|
| # of Threads | 16-Threads |
|---|
| Operating Frequency | 4.0 GHz |
|---|
| Max Turbo Frequency | Up to 4.5 GHz |
|---|
| L1 Cache | 512KB |
|---|
| L2 Cache | 8MB |
|---|
| L3 Cache | 96MB |
|---|
| Manufacturing Tech | 5nm |
|---|
| Instruction Set | 64-Bit |
|---|
| Hyper-Threading Support | Yes |
|---|
| Memory Types | 2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600 |
|---|
| Memory Channel | 2 |
|---|
| Max Memory Size | 128 GB |
|---|
| ECC Memory | Yes (Requires mobo support) |
|---|
| Virtualization Technology Support | Yes |
|---|
| Integrated Graphics | AMD Radeon Graphics |
|---|
| Graphics Base Frequency | 2200 MHz |
|---|
| Graphics Max Dynamic Frequency | 2.2 GHz |
|---|
| PCI Express Revision | 5.0 |
|---|
| Max Number of PCI Express Lanes | 28 / 24 (Total/Usable) |
|---|
| Multimedia Instruction | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64 |
|---|
| Thermal Design Power | 120W |
|---|
| Cooling Device | Cooling device not included - Processor Only |
|---|
| Compatible Desktop Chipsets | AMD A620, AMD X670E, AMD X670, AMD B650E, AMD B650, AMD X870E, AMD X870, AMD B840, AMD B850 |
|---|
| Operating System Supported | Windows 11 (64-Bit Edition)
Windows 10 (64-Bit Edition)
RHEL (x86 64-Bit)
Ubuntu (x86 64-Bit) |
|---|
| Security & Reliability | AMD Secure Processor
AMD Platform Secure Boot
Windows Secure Boot
UEFI Secure Boot
Windows Device Guard
Supervisor Mode Execution Prevention (SMEP)
Guest Mode Execution (GMET) Trap
Virtualization-Based Security (VBS)
Windows Secured-Core PC
Firmware TPM
AMD-V (SVM)
AMD AVIC (Interrupt Virtualization)
AMD-Vi (I/O MMU Virtualization)
Second Level Address Translation (SLAT)
Advanced Encryption Standard New Instructions (AES-NI)
AMD Enhanced Virus Protection (NX bit)
AMD Shadow Stack |
|---|
Additional Information| First Listed on Newegg | June 10, 2026 |
|---|
