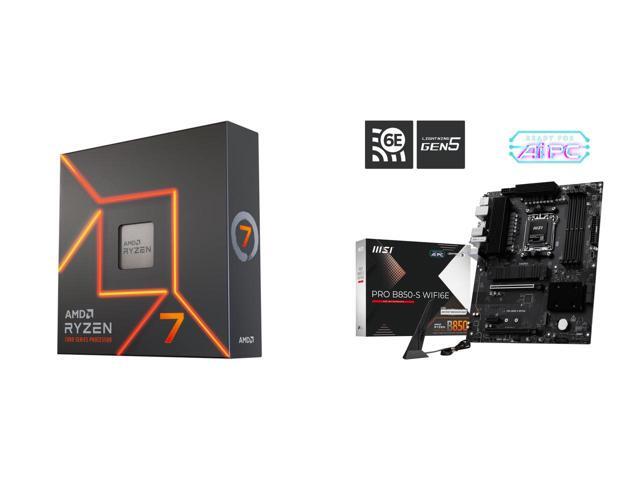

This Combo Includes 2 Items
The ultimate gaming and streaming experience
Whatever the setting, whatever the resolution, lead your team to victory with AMD Ryzen™ 7 7700X, a superb 8-core gaming processor.
The world's most advanced PC processor
Experience the speed of AMD Ryzen™ 7 7700X desktop processor. Build a rig with the winning performance you need to dominate the games you love.
The latest technologies from AMD
AMD Ryzen™ 7 7700X processor is built to help you beat the clock with time-saving connectivity like PCle® 5.0, 16 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0.
Business Elegance
The PRO B850-S WIFI6E is a business-oriented ATX motherboard with a 12 Duet Rail Power System, constructed around the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0 M.2, 2.5G LAN, Wi-Fi 6E and DDR5 that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO B850-S WIFI6E motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD B850
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B850-S WIFI6E is able to sustain heavy CPU power loads to support system-demanding settings:
- Digital PWM IC
- 12 Duet Rail Power System (P-PAK)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: VRM heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)
1 x PCIe 4.0/3.0 x4 slot
1 x PCIe 3.0 x1 slot
Gen5 M.2 Connector
The PRO B850-S WIFI6E motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)
1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
- 2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
- Wi-Fi 6E: Features the Wi-Fi 6E solution (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
- USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
- HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Learn more about the Ryzen 7 7700X
Model| Brand | AMD |
|---|
| Processors Type | Desktop |
|---|
| Series | Ryzen 7 7000 Series |
|---|
| Name | Ryzen 7 7700X |
|---|
| Model | 100-100000591WOF |
|---|
Details| Processor Architecture | Zen 4 |
|---|
| CPU Socket Type | Socket AM5 |
|---|
| Core Name | Raphael (Zen 4) |
|---|
| # of Cores | 8-Core |
|---|
| # of Threads | 16-Threads |
|---|
| Operating Frequency | 4.5 GHz |
|---|
| Max Turbo Frequency | Up to 5.4 GHz |
|---|
| L1 Cache | 512KB |
|---|
| L2 Cache | 8MB |
|---|
| L3 Cache | 32MB |
|---|
| Manufacturing Tech | Zen 4 - TSMC 5nm FinFET |
|---|
| Instruction Set | 64-Bit |
|---|
| Memory Types | 2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600 |
|---|
| Memory Channel | 2 |
|---|
| Max Memory Size | 128 GB |
|---|
| ECC Memory | Supported |
|---|
| Integrated Graphics | AMD Radeon Graphics |
|---|
| PCI Express Revision | 5.0 / 4.0 / 3.0 |
|---|
| Thermal Design Power | 105W |
|---|
| Cooling Device | Cooling device not included - Processor Only |
|---|
| Compatible Desktop Chipsets | AMD A620 / AMD B650 / AMD B650E / AMD B840 / AMD B850 / AMD X670 / AMD X670E / AMD X870 / AMD X870E |
|---|
| Operating System Supported | Windows 11 |
|---|
Additional Information| First Listed on Newegg | September 27, 2022 |
|---|
