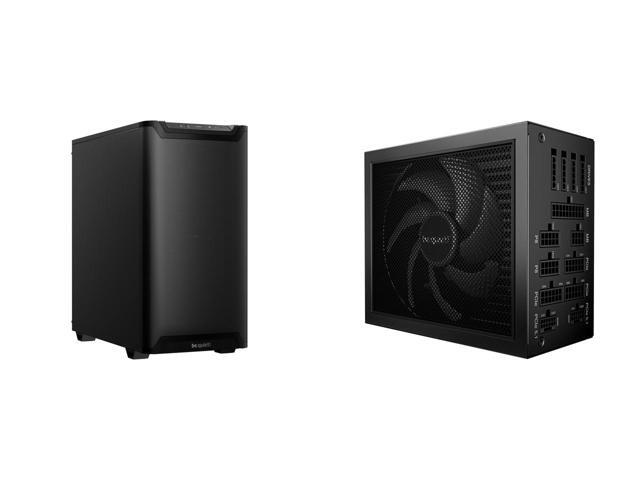

This Combo Includes 2 Items
PURE BASE 501
Airflow Black
Comfortably compact
Pure Base 501 Airflow Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
- High airflow intake front panel and top cover for maximum performance
- 2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- USB 3.2 Gen. 2 Type C for best connectivity
- Comfortable cable management with clever cable routing design
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 Airflow Black offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 3 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
DARK POWER 14
850W
No compromise silence and performance
Dark Power 14 850W features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.57%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Active and semi-passive cooling can be selected with the push of a button
- Aluminum heat sink to support the semi-passive cooling concept and improve longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
THE HIGHEST EFFICIENCY POSSIBLE
I am Titanium!
Dark Power 14 850W is certified with 80 PLUS® Titanium and Cybenetics Titanium for a stunning energy efficiency rating of up to 95.6%. This provides lots of benefits for a high-end system, including less power consumption and an overall cooler and quieter operation.
NEXT GEN
With ATX 3.1 compatibility
Dark Power 14 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and perfect for current and future high-end systems.
PUSH THE BUTTON!
Switch effortlessly between active and semi-passive cooling
A button on the rear of the power supply allows switching between a balanced active cooling mode, where the Silent Wings fan spins all the time, or a semi-passive mode, where the fan does not spin under low load and only starts when additional cooling is required for more demanding operations. A post-ventilation setting keeps the fan spinning after cooling down for a short period of 2–5 minutes to prevent frequent and noisy starts and stops.
HEAT SINK AND INTEGRATED SILENT WINGS
Simply fan-tastic
A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power 14 850W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations and sits unshakably. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption.
READY FOR OVERCLOCKING
Maximum strength
Dark Power 14 850W is particularly suitable for overclocking. With the simple push of a button, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control between the default four 12V-rail mode and the alternative massive single-rail operation.
PEAK TECHNOLOGY
Higher efficiency and lower ripple noise
Dark Power 14 850W is state-of-the-art technology. With an Active Rectifier and full bridge LLC Technology it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
105°C CAPACITORS FROM JAPAN
Just the best
Each component in Dark Power 14 850W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life.
PERFECTLY MODULAR
As all things should be
Modular, sleeved cables measuring up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
Learn more about the be quiet! PURE BASE 501 Airflow
Model| Brand | be quiet! |
|---|
| Model | PURE BASE 501 Airflow |
|---|
| Part Number | BG074 |
|---|
Details| Type | ATX Full Tower |
|---|
| Color | Black |
|---|
| Case Material | ABS / Steel |
|---|
| Motherboard Compatibility | ATX/ Micro ATX / Mini ATX |
|---|
| Side Panel | without Side Window |
|---|
| LED | No |
|---|
| Dust Filters | Bottom / Front / Top |
|---|
Expansion| Internal 3.5" Drive Bays | 2 |
|---|
| Internal 2.5" Drive Bays | 5 |
|---|
| Expansion Slots | 7 |
|---|
Front Panel Ports| Front Ports | 1x USB 3.2 Gen. 2 Type C, 2x USB 3.2 Type A, HD Audio, (combined) |
|---|
Cooling System| Fan Options | Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm |
|---|
| Pre-installed Fans | Front - 1 x 140mm / Rear - 1 x 140mm |
|---|
| Radiator Options | Front - Up to 360mm / Rear - Up to 140mm / Top - Up to 240mm |
|---|
Dimensions & Weight| Max GPU Length | 368 mm |
|---|
| Max CPU Cooler Height | 178 mm |
|---|
| Max PSU Length | 180 mm |
|---|
| Dimensions | 518 x 292 x 503 |
|---|
| Weight | 8.0 kg |
|---|
Additional Information| First Listed on Newegg | December 09, 2024 |
|---|
