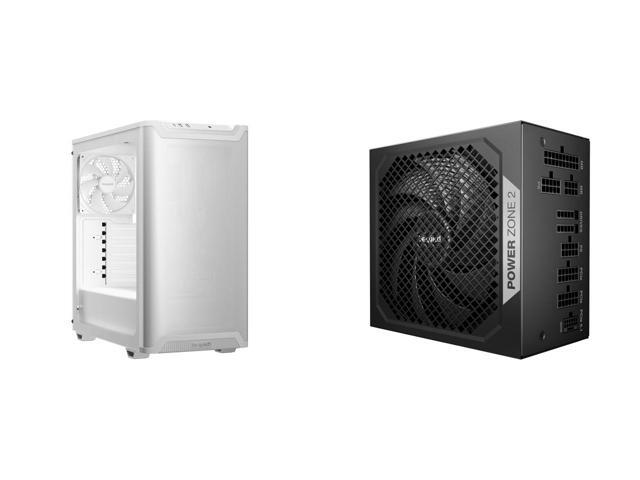

This Combo Includes 2 Items
PURE BASE 501
Airflow Window White
Comfortably compact
Pure Base 501 Airflow Window White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
- High airflow intake front panel and top cover for maximum performance
- 2 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- USB 3.2 Gen. 2 Type C for best connectivity
- Comfortable cable management with clever cable routing design
- Side panel made of tempered glass
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Window White is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM White provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 Airflow Window White offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 3 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Window White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
SHOW ME WHAT YOU'VE GOT
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window White. The window is made of tinted and tempered glass with white painted side bars.
POWER ZONE 2
1000W
Exceptional efficiency for Gamers
Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.
- 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.0%)
- Semi-passive zero-RPM cooling
- Fan runs on for 2-5 minutes to avoid frequent starting noise
- Pure Wings 3 140mm fan for quiet and efficient cooling
- 90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
- Advanced voltage regulation and stability thanks to LLC technology
- Unique look with an unmistakable mesh design
- One massive high-performance 12V-rail
- 10-year manufacturer’s warranty
PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.
SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
A large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.
PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.
FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery
Power Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
HIGH-CLASS TECHNOLOGIES
All packed in a stunning design
With its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
"Power Zone 2 is something special: it is our first semi-passive power supply series, the first with a 140mm fan and certainly stands out in terms of design. Power Zone always brings to mind the image of a good friend who will not let you down no matter what."
Christian Joppien, Head of Global Product Management
Learn more about the be quiet! PURE BASE 501 Airflow
Model| Brand | be quiet! |
|---|
| Model | PURE BASE 501 Airflow |
|---|
| Part Number | BGW75 |
|---|
Details| Type | ATX Full Tower |
|---|
| Color | White |
|---|
| Case Material | ABS / Steel / Tempered Glass |
|---|
| Motherboard Compatibility | ATX/ Micro ATX / Mini ATX |
|---|
| Side Panel | Tempered Glass Panel |
|---|
| LED | No |
|---|
| Dust Filters | Bottom / Front / Top |
|---|
Expansion| Internal 3.5" Drive Bays | 2 |
|---|
| Internal 2.5" Drive Bays | 5 |
|---|
| Expansion Slots | 7 |
|---|
Front Panel Ports| Front Ports | 1x USB 3.2 Gen. 2 Type C, 2x USB 3.2 Type A, HD Audio, (combined) |
|---|
Cooling System| Fan Options | Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm |
|---|
| Pre-installed Fans | Front - 1 x 140mm / Rear - 1 x 140mm |
|---|
| Radiator Options | Front - Up to 360mm / Rear - Up to 140mm / Top - Up to 240mm |
|---|
Dimensions & Weight| Max GPU Length | 368 mm |
|---|
| Max CPU Cooler Height | 178 mm |
|---|
| Max PSU Length | 180 mm |
|---|
| Dimensions | 518 x 292 x 503 |
|---|
| Weight | 8.4 kg |
|---|
Additional Information| First Listed on Newegg | December 09, 2024 |
|---|
