Combo: 4883279

double click image to zoom in

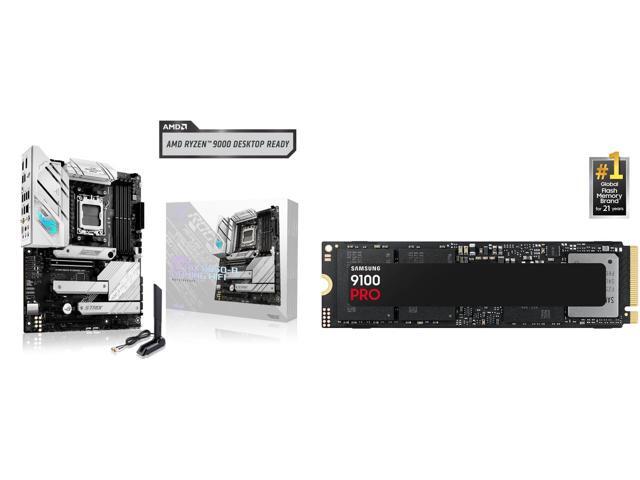

ASUS ROG Strix B650-A Gaming WiFi ATX motherboard, 12+2 power stages, DDR5, 3x M.2, PCIe 4.0, 2.5G LAN, WiFi 6E, USB 3.2 Gen 2x2, Aura Sync; SAMSUNG SSD 9100 PRO 1TB, PCIe 5.0, 14,800MB/s read, ideal for AI, gaming, workstations

AMD Motherboards

Internal SSDs

AM5 Socket: Ready for AMD Ryzen™ Desktop 9000*, 8000*, and 7000 Series Processors
BIOS Update maybe required when used with AMD Ryzen™ Desktop 9000 and 8000 Series CPU Processors
Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C® and eight additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 4.0 x16 SafeSlot
High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking

This Combo Includes 2 Items

Overview

Specs

Reviews

Brand	ASUS
Model	STRIX B650-A GAMING WIFI

USB 3.0	10 x USB 3.0
HDMI	1 x HDMI

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Maximum Memory Supported	128GB
Channel Supported	Dual Channel

ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II

PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)* * PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
PCI Slots	1 x PCI Slot

M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode). When PCIEx16_2 slot is operating, M.2_3 will be disabled.
SATA RAID	AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Bluetooth	Bluetooth v5.2

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
COM	3
Video Ports	1
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1
USB 1.1/2.0	9 x USB 2.0
S/PDIF Out	1 x Optical, 1 x Coaxial
S/PDIF In	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header 1 x AURA RGB headers 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x COM_DEBUG header

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Software Feature
Software	windows_10
Windows 11	Supported
