Combo: 4885257

double click image to zoom in

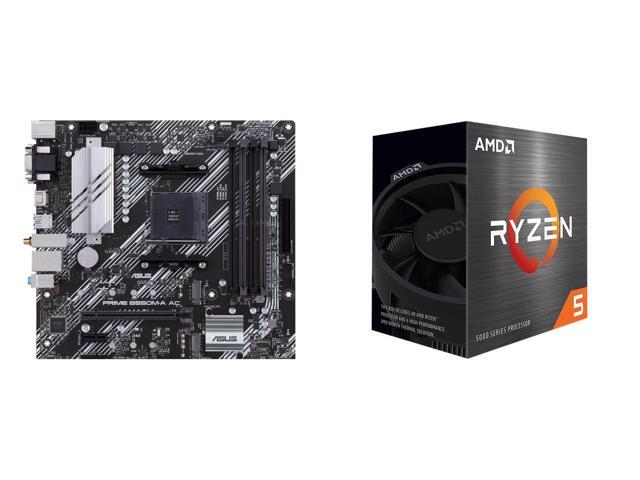

ASUS PRIME B550M-A AC mATX motherboard: PCIe 4.0, dual M.2, WiFi, HDMI, D-Sub, DVI, SATA 6Gbps, USB 3.2 Gen 2, Aura Sync RGB. AMD Ryzen 5 5500 6-Core 3.6GHz, AM4, 65W, No Integrated Graphics.

AMD Motherboards

Desktop CPU Processor

AMD AM4 socket: Ready for Ryzen™ 5000 Series/4000 G-Series/3000 Series Desktop Processors
Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+
Ultrafast connectivity: Dual M.2, PCIe 4.0, 802.11ac Wi-Fi, USB 3.2 Gen 2 Type-A
Aura Sync RGB: Synchronizable LED effects across compatible PC gear
Audio Features: LED-illuminated design, Audio Shielding, Premium Japanese Audio Capacitors, Dedicated Audio PCB Layers
DIGI+ VRM & EPU support
DDR4 memory support

This Combo Includes 2 Items

Overview

Specs

Reviews

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors * Refer to www.asus.com for CPU support list.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 2.0
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered

PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x16	None
PCI Express x1	2 x PCIe 3.0 x1

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series / 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series / 4000 G-Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

Audio Chipset	Realtek ALC887/897
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0

Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors
