Win the Competition

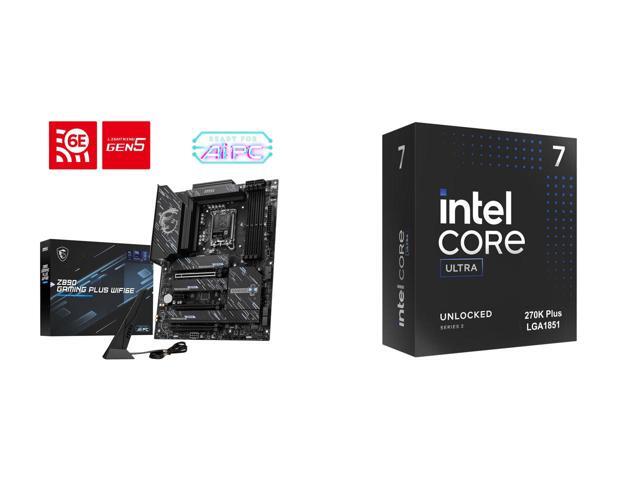

The Z890 GAMING PLUS WIFI6E Intel LGA 1851 gaming motherboard delivers the latest connectivity, including Wi-Fi 6E, 5G LAN, USB 20Gbps, PCIe 5.0, and M.2 Gen5. Designed for AI-PCs and EZ DIY, it’s an ideal Z890 ATX motherboard for Intel Core Ultra CPU.
Supports Intel Core Ultra Processors (Series 2)
The Z890 GAMING PLUS WIFI6E motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: ATX
- Socket Type: LGA 1851
- Chipset: Intel Z890
Ultra Power - 14 Duet Rail Power System with 55A DrMOS
With exclusive Core Boost technology and dual 8 pin power connectors, the Z890 GAMING PLUS WIFI6E is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 14 Duet Rail Power System with 55A DrMOS
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8800+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP Profiles: in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8800+ MT/s OC, supports Intel XMP.
1 x Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor II also shields the point of contact from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor* and EZ PCIe Clip II)
- 2 x PCIe 4.0/3.0 x4 slots
- 1 x PCIe 4.0/3.0 x1 slot
* MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connectors
The Z890 GAMING PLUS WIFI6E motherboard features the latest M.2 slots:
- 1 x Gen5 x4 128Gbps slot*
- 3 x Gen4 x4 64Gbps slots**
* with EZ M.2 Shield Frozr II
** with M.2 Shield Frozr
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
High-Speed Connectivity
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
Wi-Fi 6E: Features Wi-Fi 6E solution (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 7.1-Channel HD Audio with Audio Boost.
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
