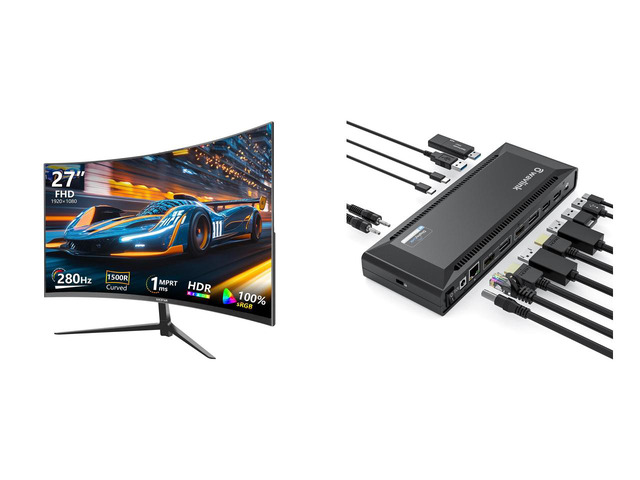

The new USB Type-C connector works seamlessly with this Dual 4K Universal Docking Station
You can easily connect your DisplayPort and HDMI monitors.This 14-in-1 docking station supports USB Power Delivery (up to 100 watts max. for laptop charging), so you can power and charge your laptop directly through its USB-C port. Because a single power adapter can be used for your dock and laptop, you can reduce clutter at your workstation.
Plus, you dont need to carry or remember an extra power adapter when you are traveling to or from the office. Including the latest Windows 10, 8.x, 8 and 7, Mac OS, Linux (Ubuntu only) and Android drivers for better performance.
100W USB-C Charging
Keeps from juggling between power shortage and connectivity, your USB-C laptop can be charged with max 100W power delivery by connecting to the usb-c dock.
Incredible Transfer Speed
5Gbps superspeed data transfer supported between peripherals connecting to USB 3.0 ports, you can also charge your smartphone or tablet with the fast-charge type A port.
Blazing-fast Gigabit Ethernet
Wired network connections up to 1000Mbps are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of Gigabit Ethernet.
Crystal-clear Sound
With separate microphone input and amplified audio output, you can enjoy crystal-clear conference calls and will be amazed at the immersive music it gives you.
5K@60HZ Output
14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene. It also helps to improve operational efficiency on images and video editing.
Connect to USB-C/A Laptops
Support most laptops with USB-C or USB-A ports, USB 3.0 A to C cable prepared for laptops without USB-C ports while only for transferring data, not for charging.
Compatible Systems: Windows7/8/8.1/10(32/64-bit), Mac OS 10.14 or later, Chrome OS, Android, Ubuntu, performance might be limited on Ubuntu, Chrome OS and Android.
Top Class Non-slip Design
Made of high-quality materials, the non-slip pads are evenly distributed on the back of the product, which effectively prevent the device from accidentally sliding off.
Reliable Security
Integrated lock slot (security keyhole) accommodates standard security locks to safeguard equipment from being taken by others.
Medium Size
This universal dock is an ideal choice for enterprises and designers with medium size 223 x 83 x 26mm/8.8 x 3.3 x 1.0 inches(L x W x H).
-HDMI or DisplayPort support resolution up to dual 4K.
-Two DisplayPort support maximum single 5K resolution.
-Supports multiple video display modes for intensive work.
-Gigabit Ethernet port supports fast and stable wired connection.
-6 USB ports for your USB devices.
-Non-slippery pads on the bottom protect the device from falling.
System Requirements
-Processor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better,
-Memory: 8GB
-Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better
System Compatible
Supported Operating Systems: displaylink.com/downloads
Extensive Compatibility
The docking station is compatible with the latest laptops and specific smart devices with Type C port. (Please make sure the type-c port of your pc support charging.)
Notice1: Laptops without USB-C ports
You can use USB 3.0 A to C cable if your laptop does not own any USB-C port. (This A to C cable is not used for Power Delivery but only for transferring data;please charge your laptop by the original power adapter.)
Notice 2: Dual 4K Display
There are two ports in each section(Display 1&2)that supports one monitor at a time, thus please choose the type of port you need.
Notice 3: Single 5K Display
5K resolution is accessible by connecting dual DP port together to a single display. For Windows up to 5120x2880@60Hz, Mac OS only supports up to 5120x1440@60Hz.
Attention
- The maximum resolution will be 3840x2160 (UHD) if both video outputs are being used.
-Max 5K (5120 x 2880@60Hz) resolution only via dual Display Ports with 5K monitor.
-Supports DP 1.2 and make sure monitor settings are configured to use DP 1.2 and not 1.1.
-On HDMI output make sure your HDMI cable is capable of 4K @ 60Hz.
-This docking station is not compatible with the graphics card on notebook PC (NVIDIA GeForce).
- 2.4Ghz wireless devices, such as wireless keyboard and mouse adapters, may not works well on USB 3.0 ports, connecting to a USB 2.0 port is recommended.
-Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC).
-If playing UHD content (4K), the system must be capable of decoding the 4K video in the graphics processor.
Package Includes:
- 1 x USB-C Dual 4K Universal Docking Station
- 1 x USB-C to C Cable(E-Mark Chip) 1meter
- 1 x USB 3.0 A to C Cable 1meter
- 1 x Quick Start Guide
- 1 x DC20V/6.5A 130Watt Power Adapter
This item has DL-6950 chipset which made by Displaylink.
Supported Operating Systems
Attention: It's worth noting that displaylink driver installation is required
For Windows: Windows 11, Windows 10, Windows 7, Windows 8.1, Windows 8
For macOS: Ventura 13, Monterey 12, Big Sur 11, Catalina 10.15, Mojave 10.14
For Android: Android 5 (Lollipop) onwards with USB OTG mode
CHROME: chromeOS build R51 or lat
Ubuntu: Ubuntu 20.04, Ubuntu 22.04
Drivers& Updates: displaylink.com/downloads
Troubleshooting: support.displaylink.com
Mac macOS High Sierra needs attention:
1, Since macOS High Sierra 10.13, the user has to explicitly enable this system extension in the Security & Privacy system preference after installation and before the DisplayLink software is allowed to run.
2, macOS Catalina 10.15 requires the user to permit "Screen Recording" in order for DisplayLink devices to work properly.
The system requirements for 4K are higher than the system specs , due to the extra resources needed to process the high resolution. The recommended specs are below:
For Productivity:
Processor: Intel Core i5 2+GHz / AMD Trinity or better, Memory: 4GB
Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM graphics processors or better.
For Full screen video playback
Processor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better, Memory: 8GB
Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better.
Disk: 7200RPM or SSD
If playing UHD content (4K), the system must be capable of decoding the 4K video in the graphics processor.
