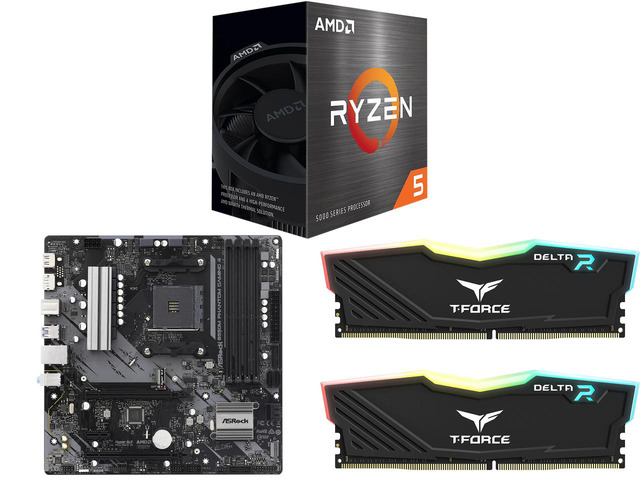

This Combo Includes 3 Items
B550M Phantom Gaming 4
Based on AMD B550 chipset, this micro ATX motherboard from ASRock helps you to build a compact yet powerful AMD desktop. By adopting premium components, it unleashes the full potential of 3rd Gen and future generation AMD Ryzen processors. With PCIe 4.0 M.2 slot, USB 3.2 Gen 1 ports, and addressable RGB headers, it is ready to connect to offer high data transfer speed and to broaden up stunning lighting effect.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removing the bottleneck and increasing performance.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 2280 M.2
Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY — POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Pursuing the perfect revolution
The R on the heat spreader represents Revolution. The heat spreader is built with a lighter and thinner metal material. The hollow “R” design is very stereoscopic and matches with the ultra wide angle luminous area.
Full color, dazzling and 120° ultra wide angle force flow lighting effect
The full range, 120° ultra wide angle luminous area at the top emits colorful bright light. The color of the light changes smoothly to provide gamers with an unparalleled visual feast, no matter it is day or night.
ASYMMETRIC minimalist design
The one-piece, geometric line design makes the heat spreader look simple but energetic, and the Cubist style in the new art movement is also presented, which is a perfect combination of technology and aesthetics.
T-FORCE DELTA RGB Gaming Memory Modules Support Various Kinds of Controlled Software
T-FORCE DELTA RGB memory module supports ASUS Aura Sync / GIGABYTE RGB Fusion 2.0 / MSI Mystic Light Sync / ASROCK-Polychrome Sync / BIOSTAR Advanced VIVID LED DJ software. These lightning controlled pieces of software allow gamers to control lighting effects and lighting synchronization with T-FORCE DELTA RGB luminous memory module. It creates a unique, dazzling color aesthetics and offers a brilliant RGB system!
The transmitting performance can be greatly increased with JEDEC RC 2.0
Using the latest customized JEDEC RC 2.0 circuit board to increase the distance between the power layer and the signal layer. Compared to ordinary memory, the transmitted signal is raised by 35%. There will be no interference between the power and the signal, and better performance. It completely releases the transmission of memory module, and offers players the ultimate sensation of overclocking and a highly stable overclocking memory module.
XMP 2.0 — 1 STEP overclocking technology
It is plug and play ready. Overclocking can be super easy without the hassle of manually adjusting the BIOS. It is compatible with both Intel & AMD platform, therefore gamers can easily enjoy overclocking without worries.
Ultra low working voltage saves energy UP TO 40%
With low working voltage 1.2~1.4V from DDR4 DELTA RGB, it is not only energy saving but can also reduce the temperature and the heat generated to offer the high speed running memory a stable and long time operation.
QVL approved by motherboard manufacturers
Multiple compatibility verifications with mainstream DDR4 motherboards ensure its stability with all motherboards on the QVL (Qualified Vendor List). Therefore, you wouldn’t’ have to worry about compatibility issues when purchasing high speed memory.
| Module Type |
DDR4 288 Pin Non-ECC Unbuffered DIMM |
| Frequency |
2666 |
2666 |
3000 |
| Latency |
CL16-18-18-38 |
CL18-18-18-43 |
CL16-18-18-38 |
| Capacity |
8GB / 16GB
8GB x 2 / 16GB x 2 |
32GB / 32GB × 2 |
8GB / 16GB
32GB / 4GB × 2
8GB × 2 / 16GB × 2
32GB × 2 |
| Data Transfer Bandwidth |
21,300 MB/S
(PC4 21300) |
21,300 MB/s
(PC421300) |
24,000 MB/s
(PC424000) |
| Voltage |
1.2V |
1.2V |
1.35V |
| Frequency |
3200 |
3200 |
3600 |
| Latency |
CL16-18-18-38 |
CL16-20-20-40 |
CL14-15-15-35 |
| Capacity |
8GB / 16GB
32GB / 8GB × 2
16GB × 2 / 32GB × 2 |
8GB / 16GB
32GB / 8GB × 2
16GB × 2 / 32GB × 2 |
8GB × 2 / 16GB × 2 |
| Data Transfer Bandwidth |
25,600MB/s
(PC425600) |
25,600MB/s
(PC425600) |
28,800MB/s
(PC428800) |
| Voltage |
1.35V |
1.35V |
1.45V |
| Frequency |
3600 |
4000 |
4000 |
| Latency |
CL18-22-22-42 |
CL18-22-22-42 |
CL18-24-24-46 |
| Capacity |
8GB / 16GB
32GB / 8GB × 2
16GB × 2 / 32GB × 2 |
8GB × 2 |
16GB × 2 |
| Data Transfer Bandwidth |
28,800MB/s
(PC428800) |
32,000MB/s
(PC432000) |
32,000MB/s
(PC432000) |
| Voltage |
1.35V |
1.35V |
1.4V |
| Dimensions |
49(H) x 147(L) x 7(W)mm |
| Warranty |
Life time warranty |
PRECAUTIONS
[1] For more details about how to control the lighting effect by the software (ASUS Aura Sync / GIGABYTE RGB Fusion 2.0 / MSI Mystic Light Sync / ASROCK-Polychrome Sync / BIOSTAR Advanced VIVID LED DJ), please visit the official website of the software developer (ASUS/GIGABYTE/MSI/ASRock/BIOSTAR).
NOTES
We reserve the right to modify product specifications without prior notice.
T-FORCE is TEAM force. The red “T” represents TEAMGROUP’s passion for the storage products. The black “F” represents TEAMGROUP’s over 18 years of dedication to storage products. Since we released T-FORCE gaming product line in 2016, we have won multiple product design awards, for example, Red Dot design award, iF design award, Computex d&i award, Golden Pin design award and Taiwan Excellence. The high quality and extreme performance gaming products from TEAMGROUP allow all gamers to break the speed limit and enjoy the ever-changing world of gaming.
Learn more about the Ryzen 5 5500
Model| Brand | AMD |
|---|
| Processors Type | Desktop |
|---|
| Series | Ryzen 5 5000 Series |
|---|
| Name | Ryzen 5 5500 |
|---|
| Model | 100-100000457BOX |
|---|
Details| CPU Socket Type | Socket AM4 |
|---|
| CPU Code Name | Cezanne |
|---|
| # of Cores | 6-Core |
|---|
| # of Threads | 12-Threads |
|---|
| Operating Frequency | 3.6 GHz |
|---|
| Max Turbo Frequency | 4.2 GHz |
|---|
| L1 Cache | 384KB |
|---|
| L2 Cache | 3MB |
|---|
| L3 Cache | 16MB |
|---|
| Manufacturing Tech | 7nm |
|---|
| Instruction Set | 64-Bit |
|---|
| Memory Types | DDR4 3200 |
|---|
| Integrated Graphics | None Integrated Graphics |
|---|
| Thermal Design Power | 65W |
|---|
| Cooling Device | Wraith Stealth |
|---|
Additional Information| First Listed on Newegg | April 04, 2022 |
|---|
