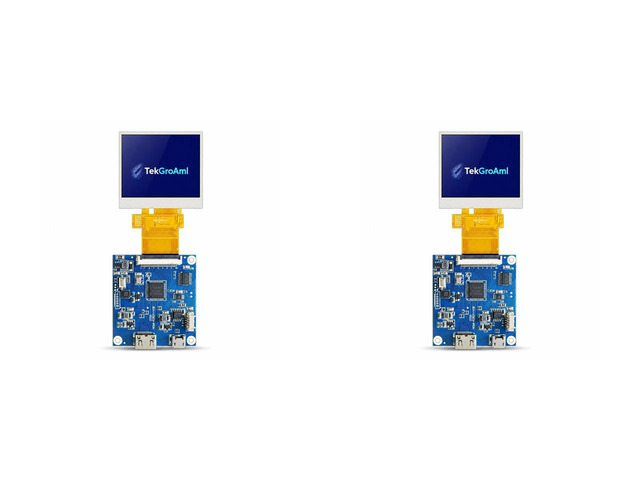

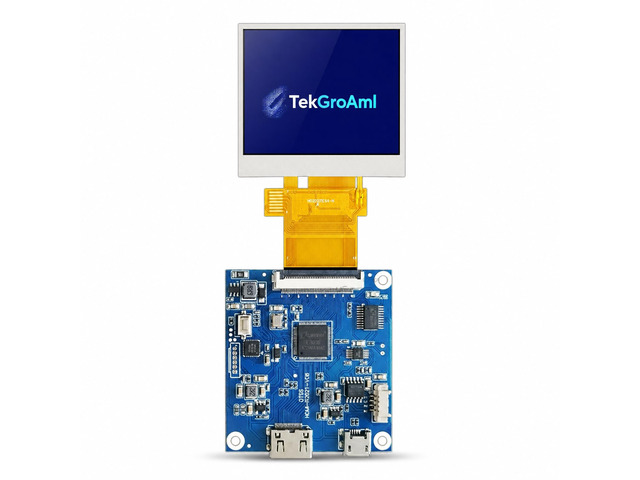

2 Inch 480x360 Square mini H/D LCD Display, for DIY Dashboard & Embedded Project
Different mini LCD Screen and H/D Board
2 inch mini LCD Display |
2.8 inch mini LCD Screen |
4 inch mini LCD Screen |
5 inch mini LCD Screen |
6.8 inch mini LCD Screen |
|
|---|---|---|---|---|---|
|
Customer Reviews
|
— |
—
|
— |
—
|
— |
|
Price
|
— | — | — | — | — |
|
Screen size
|
2 inch | 2.8 inch | 4 inch | 5 inch | 6.8 inch |
|
Resolution
|
480x360 | 480x640 | 720x720 | 720x1280 | 480x1280 |
|
Dimension
|
46.00 (H) x 40.87 (V)mm | 50.00 (H) x69.20 (V)mm | 74.45 (H) x 78.28 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
|
Display Area
|
40.8 (H) x 30.6 (V)mm | 43.20 (H) x 57.60(V)mm | 71.93(H) x 71.93 (V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
|
Data interface
|
RGB 18bit | 3SPI-RGB18BIT | 3WSPI+RGB18BIT | 3SPI+RGB18BIT | MIPI |
|
Backlight
|
6 White LED | 6 White LED | 10 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |
Specification
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? Raspberry-Pi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for Raspberry Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.
2 Inch 480x360 Square mini H/D LCD Display, for DIY Dashboard & Embedded Project
Different mini LCD Screen and H/D Board
|
2 inch mini LCD Display |
2.8 inch mini LCD Screen |
4 inch mini LCD Screen |
5 inch mini LCD Screen |
6.8 inch mini LCD Screen |
|---|---|---|---|---|
| Customer Reviews | ||||
| — |
—
|
— |
—
|
— |
| Price | ||||
| — | — | — | — | — |
| Screen size | ||||
| 2 inch | 2.8 inch | 4 inch | 5 inch | 6.8 inch |
| Resolution | ||||
| 480x360 | 480x640 | 720x720 | 720x1280 | 480x1280 |
| Dimension | ||||
| 46.00 (H) x 40.87 (V)mm | 50.00 (H) x69.20 (V)mm | 74.45 (H) x 78.28 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
| Display Area | ||||
| 40.8 (H) x 30.6 (V)mm | 43.20 (H) x 57.60(V)mm | 71.93(H) x 71.93 (V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
| Data interface | ||||
| RGB 18bit | 3SPI-RGB18BIT | 3WSPI+RGB18BIT | 3SPI+RGB18BIT | MIPI |
| Backlight | ||||
| 6 White LED | 6 White LED | 10 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |
Specification
| Screen size | 2 Inch |
|---|---|
| LCM outline size | 46.00 (H) x 40.87 (V)mm |
| Active area | 40.8 (H) x 30.6 (V) |
| Number of pixels | 480(H)X360(V) pixels |
| Pixel arrangement | RGB stripe |
| Viewing direction | ALL o'clock |
| Controller / Driver | mini H/D |
| Data interface | RGB 18bit |
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? Raspberry-Pi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for Raspberry Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.
-
