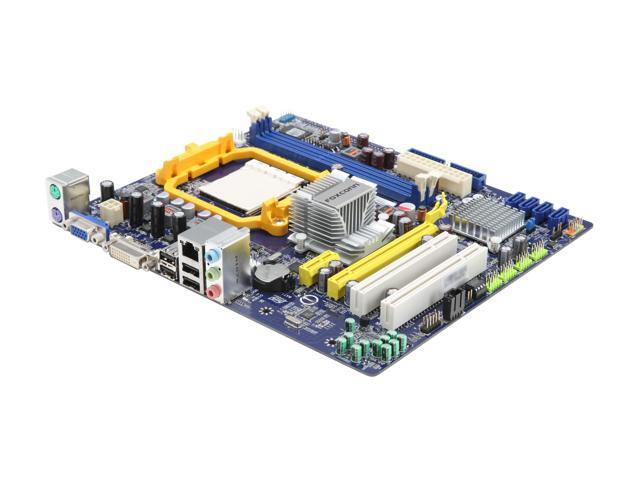

Foxconn A76ML-K 3.0 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard

Sold and Shipped by Newegg

AMD 760G
Phenom II
DDR3 1600(OC)/1333

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Based on the AMD 760G chipset with SB710 southbridge, the A76ML-K 3.0 supports socket AM3 processor, AMD Phenom™II model. The ATI Radeon™ 3000 graphics engine with onboard VGA output meets everyday home and office needs, and with Dual channel DDR3 memory support up to 1600MHz(overclocking), the A76ML-K 3.0 delivers all-round system performance. Gigabit LAN, 5.1 channel HD audio and SATA RAID area all included onboard, and with the added benefit of FoxOne™ Premium technology, for easy overclocking and system-monitoring, this motherboard represents excellent value for money, whilst still providing excellent productivity and performance.

Learn more about the Foxconn A76ML-K 3.0

Model

Brand: Foxconn

Model: A76ML-K 3.0

Supported CPU

CPU Socket Type: AM3

CPU Type: Phenom II(Support TDP limit of 95W CPU)

FSB: 2200 MHz Hyper Transport (4400 MT/s)

Chipsets

Chipset: AMD 760G + SB710

Memory

Number of Memory Slots: 2×240pin

Memory Standard: DDR3 1600(OC)/1333/1066

Maximum Memory Supported: 8GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 2.0 x16: 1 x PCI Express 2.0 x16

PCI Express x1: 1 x PCI Express x1

PCI Slots: 2 x PCI Slots

Storage Devices

PATA: 1 x ATA133 2 Dev. Max

SATA 3Gb/s: 4 x SATA 3Gb/s

SATA RAID: 0/1/10

Onboard Video

Onboard Video Chipset: ATI Radeon 3000

Onboard Audio

Audio Channels: 6 Channels

Onboard LAN

Max LAN Speed: 10/100/1000Mbps

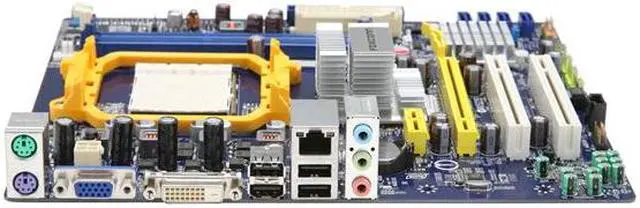

Rear Panel Ports

PS/2: 2

Video Ports: D-Sub + DVI

USB 1.1/2.0: 4 x USB 2.0

Audio Ports: 3 Ports

Internal I/O Connectors

Onboard USB: 8 x USB 2.0

Other Connectors: 1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x ATA133 IDE connector
1 x CD-in connector
1 x Front Audio header
1 x Front Panel header
1 x Intrusion Alarm header
1 x S/PDIF out header
1 x TPM header
1 x COM header
1 x Speaker

Physical Spec

Form Factor: Micro ATX

Dimensions (W x L): 9.6" x 8.4"

Power Pin: 24 Pin

Features

Features: MD Phenom II processor, Socket AM3

4.4 GT/s HyperTransport

Dual channel DDR3 1600(oc)/1333/1066 x 2 DIMMs, Max 8GB

1x PCIe x16, 1x PCIe x1, 2x PCI

1x ATA133, 4x Serial ATA II w / RAID 0, 1, 0+1 JBOD

5.1 channel HDA

Gigabit LAN

12 USB 2.0 ports
