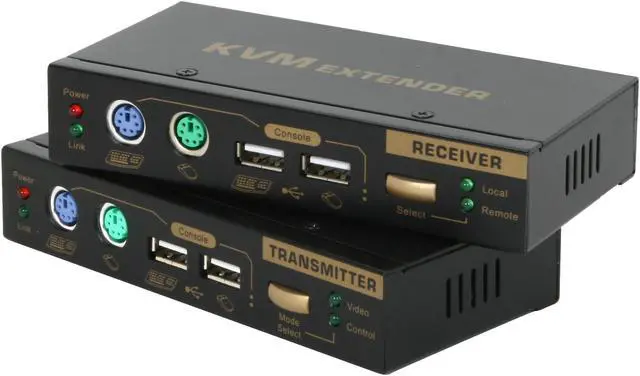

LINKSKEY LKV-E235 CAT5 USB & PS/2 VGA KVM Extender Set
- 2 Ports Computer Connections
- 2 Ports Monitor Connections
- Video Resolution 1600 x 1200
Overview
Specs
Reviews
The LKV-E235 CAT5 KVM Extender Set allows KVM extension over CAT5 up to 150M (495 feet)using only an ordinary good quality CAT5 cable. By utilizing CAT5 extension technology, users can very easily extends the KVM control over a longer distance while still keeping a good signal quality across 150M as a result of its easy-to-use video adjustment by OSD operation. Applicable either over an exhibition room, working floors, security room, locked server room, or other mission-critical scenarios, the LKV-E235 CAT5 KVM Extender Set allows you to locate your server physically far back from the user due to security or spatial concerns. It supports for both USB and PS/2 keyboard and mouse interface on both console side and computer side.

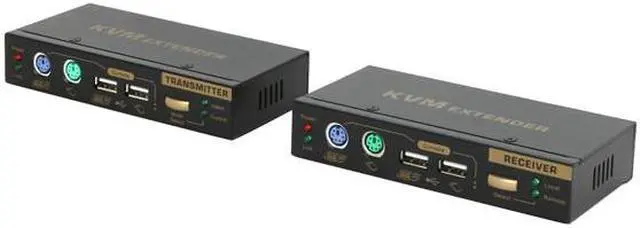

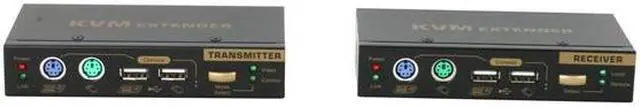

LKV-E235-TX & LKV-E235-RX for Transmitter Unit and Receiver UnitThe LKV-E235 CAT5 KVM Extender Set comprises a pair of two disparate units- The LKV-E235-TX (Transmitter unit) and the LKV-E235-RX (Receiver unit). The Transmitter Unit is located near the computer that is to be extended 150M away to the Remote Console on the Receiver Unit. Both the Transmitter Unit and the Receiver Unit provides a KVM console for user access on both locations.
A Built-in KVM Switch on the Remote Console for More VersatilityThe LKV-E235-RX also has a built-in KVM Switching function that allows user to switch between a near-by computer and the remote computer 150M (495 feet)away. The Remote user not only can control the far-end computer via the CAT5 extension from 150M away, but can also switch to its near-end computer for flexible management on the same console. This KVM switching feature will definitely add value to the CAT5 extension as it will add more convenience and flexibility for the remote users.
Button/Local Console Hotkeys for Remote Console Access ControlThe LKV-E235-TX (Transmitter Unit) provides both a front-panel button as well keyboard hotkeys that can be issued on the local console to configure the remote console access control for normal mode or view-only mode. These controls are only available on Transmitter Unit (the LKV-E235-TX) and not on the Receiver Unit, which might be located within non-secured area and access should be restricted. With the button and these hotkeys, users can either block or grant access, or toggle on/off the view-only mode on the console of the Receiver Unit. For someone who does need to use different hotkey preceding sequence, it also provides 5 alternatives for choice. Thus, the Local Console (i.e. the LKV-E235-TX unit) will have permanent access of the computer without limitation; the Remote Console (i.e. the LKV-E235-RX unit) can be enabled with full access or view-only access, or access disabled entirely from the local console.

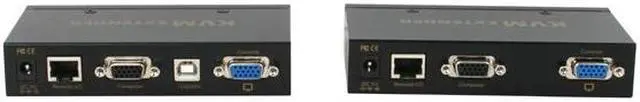

Dual keyboard/mouse interface support for USB and PS/2 on computer sideThe LKV-E235 CAT5 KVM Extender Set also provides extension support for both USB and PS/2 keyboard and mouse interface on computer side; while on the console side, it supports physical PS/2 keyboard, mouse and HDB 15 video interface.
Fine-tuning video parameters by OSD Menu operationThe LKV-E235 is manufactured with a sturdy metal case for robust and reliable usage over years to come. And its deployment is just as simple as can be. Video settings such as gain and equalization can be done by OSD operation.
EDID Transparent/Emulation SupportThe LKV-E235 also supports Transparent/Emulation modes for EDID data emulation. Simply by using OSD Menu operation, users can designate the EDID emulation to use the EDID data copy from either the default EDID (factory default) or that from the local or remote monitor.
LKV-E235-TX & LKV-E235-RX for Transmitter Unit and Receiver UnitThe LKV-E235 CAT5 KVM Extender Set comprises a pair of two disparate units- The LKV-E235-TX (Transmitter unit) and the LKV-E235-RX (Receiver unit). The Transmitter Unit is located near the computer that is to be extended 150M away to the Remote Console on the Receiver Unit. Both the Transmitter Unit and the Receiver Unit provides a KVM console for user access on both locations.
A Built-in KVM Switch on the Remote Console for More VersatilityThe LKV-E235-RX also has a built-in KVM Switching function that allows user to switch between a near-by computer and the remote computer 150M (495 feet)away. The Remote user not only can control the far-end computer via the CAT5 extension from 150M away, but can also switch to its near-end computer for flexible management on the same console. This KVM switching feature will definitely add value to the CAT5 extension as it will add more convenience and flexibility for the remote users.
Button/Local Console Hotkeys for Remote Console Access ControlThe LKV-E235-TX (Transmitter Unit) provides both a front-panel button as well keyboard hotkeys that can be issued on the local console to configure the remote console access control for normal mode or view-only mode. These controls are only available on Transmitter Unit (the LKV-E235-TX) and not on the Receiver Unit, which might be located within non-secured area and access should be restricted. With the button and these hotkeys, users can either block or grant access, or toggle on/off the view-only mode on the console of the Receiver Unit. For someone who does need to use different hotkey preceding sequence, it also provides 5 alternatives for choice. Thus, the Local Console (i.e. the LKV-E235-TX unit) will have permanent access of the computer without limitation; the Remote Console (i.e. the LKV-E235-RX unit) can be enabled with full access or view-only access, or access disabled entirely from the local console.
Dual keyboard/mouse interface support for USB and PS/2 on computer sideThe LKV-E235 CAT5 KVM Extender Set also provides extension support for both USB and PS/2 keyboard and mouse interface on computer side; while on the console side, it supports physical PS/2 keyboard, mouse and HDB 15 video interface.
Fine-tuning video parameters by OSD Menu operationThe LKV-E235 is manufactured with a sturdy metal case for robust and reliable usage over years to come. And its deployment is just as simple as can be. Video settings such as gain and equalization can be done by OSD operation.
EDID Transparent/Emulation SupportThe LKV-E235 also supports Transparent/Emulation modes for EDID data emulation. Simply by using OSD Menu operation, users can designate the EDID emulation to use the EDID data copy from either the default EDID (factory default) or that from the local or remote monitor.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-714-255-8898
- Support Website
