Will this RAM fit in a 1U server chassis?

I would say "it depends on the motherboard". A 1U chassis is 1.75" outside dimension, top to bottom. Motherboards mount ~5/16" off the bottom and are 1/16" thick. The height of the memory connector between the motherboard and the bottom of the DIMM is probably 1/16". The DIMM height is 1 1/4" top to bottom. The bottom & cover of the chassis together are about 1/8" = 2/16". 2/16 + 5/16 + 1/16 + 1/16 + 1 + 4/16 = 1 13/16 = 1.82, so it would NOT fit standing straight up. However some motherboards might have "leaning" memory connectors for low profile cases that might allow just enough space. If you need to use a 1U case, I would recommend finding a low profile DIMM. They will have only 1 row of RAM chips, not two.

$119^.00

Free 30-day Returns

Limit 99999 per customer.

Sold by MemoryMasters

Hot Seller

4.7 (270 seller ratings)

Shipped by MemoryMasters

Price alert

Add to wish list

Meet Your Seller

MemoryMasters

See Seller Store

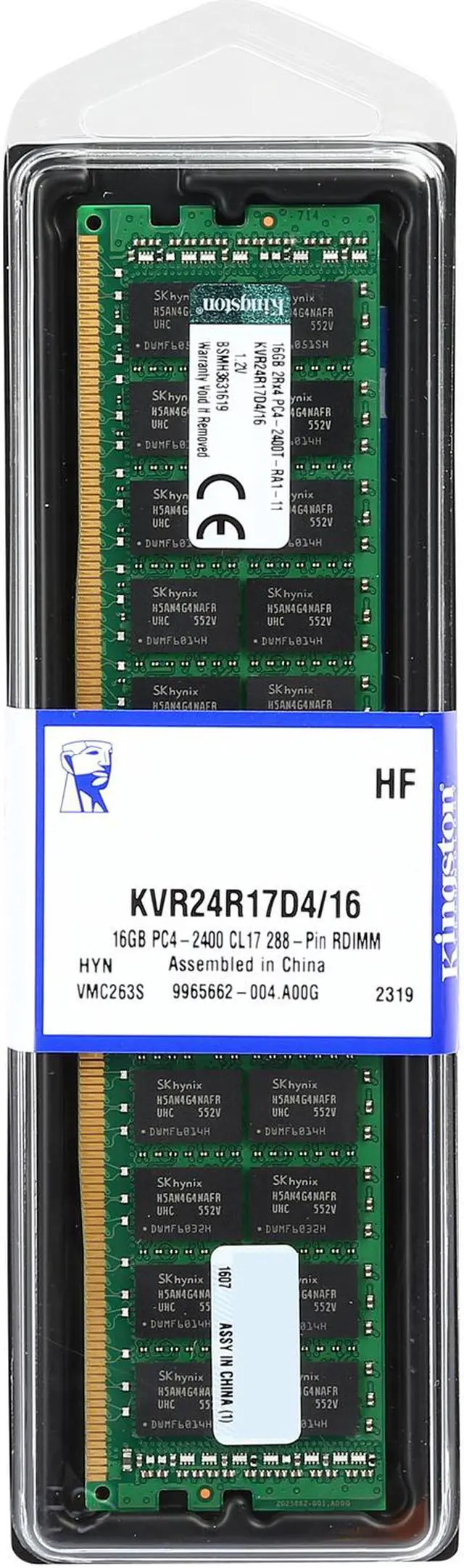

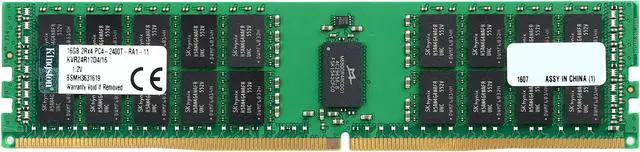

Main image of Kingston Value 16GB ECC Registered DDR4 2400 (PC4 19200) Server Memory Model KVR24R17D4/16

Alt view image 2 of 2 - Kingston Value 16GB ECC Registered DDR4 2400 (PC4 19200) Server Memory Model KVR24R17D4/16

Shop All Kingston Technology Corp. Products | Visit MemoryMasters Store

Kingston Value 16GB ECC Registered DDR4 2400 (PC4 19200) Server Memory Model KVR24R17D4/16

(4) Write a Review

Capacity: 16GB

4GB
16GB
32GB

Rank: 2Rx4

1Rx8
2Rx4

Designed and Tested to meet JEDEC
Free Technical Support

Specs

Reviews (4)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Kingston Technology Corp. KVR24R17D4/16

Model
Brand	Kingston
Series	Value
Model	KVR24R17D4/16

Details
Capacity	16GB
Type	288-Pin DDR4 SDRAM
Speed	DDR4 2400 (PC4 19200)
CAS Latency	CL17
Timing	17-17-17
Voltage	1.20V
ECC	Yes
Buffered/Registered	Registered
Rank	2Rx4
Heat Spreader	No

Features
Features	Power Supply: VDD = 1.2V (1.14V to 1.26V) VDDQ = 1.2V (1.14V to 1.26V) VPP - 2.5V (2.375V to 2.75V) VDDSPD = 2.25V to 2.75V Functionality and operations comply with the DDR4 SDRAM datasheet 16 internal banks Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600 Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Supports ECC error correction and detection On-Die Termination (ODT) Temperature sensor with integrated SPD This product is in compliance with the RoHS directive. Per DRAM Addressability is supported Internal Vref DQ level generation is available Write CRC is supported at all speed grades CA parity (Command/Address Parity) mode is supported

Additional Information
First Listed on Newegg	May 05, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 60 days
This item is covered by MemoryMasters Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIAE9AKW39793
