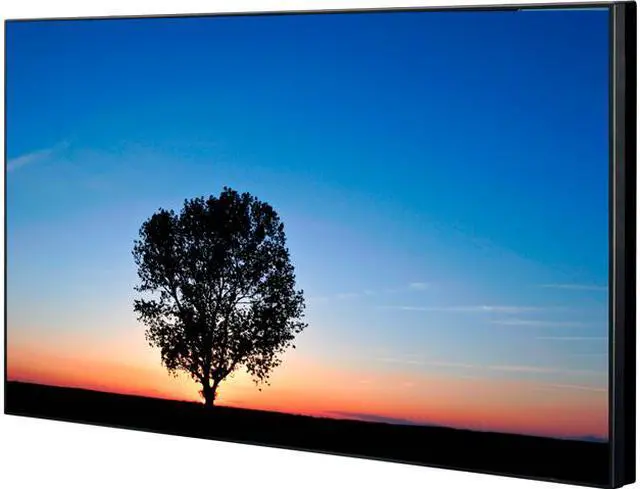

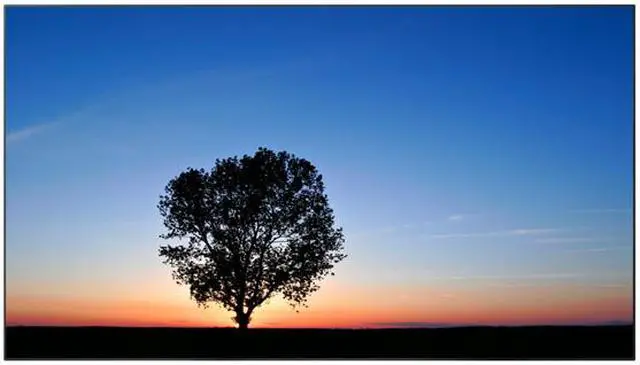

Direct-lit LED Backlight Used
Direct LED backlight construction with full-screen LED layout enables Industry's top class of brightness 800 cd/m2.
Also, the black reproduction is maintained in dark areas while bright areas are displayed more brightly to achieve a high level of contrast.
High Reliability Enables Continuous 24-Hour Operation
The use of a highly durable panel and electronic components allows continuous 24-hour operation, ideal for installation in public places, surveillance stations, etc. A built-in cooling fan automatically operates (when set to Auto) depending on the temperature. This prevents overheating in the upper screens of a multi-screen installation, which are easily subject to heating.
The IPS panel has a wide viewing angle, so colors don't change when the image is viewed from right or left angles. Information can be accurately relayed to groups of people in large areas, like public spaces.
The super-narrow bezel results in joints that are only 5.3 mm wide for video wall installations. Even in large-screen configurations, the screen borders can barely be seen, so images are powerful and natural.
Note: Bezel-to-bezel distance means the combined top and bottom (or left and right) bezel width of adjacent displays in multi-screen configuration. The gap between displays is not included.
Seam Hides Video Mode
When this mode is turned off, a full-screen image of the display panel, including edges (the entire width of the frame), is displayed. This is especially suitable for displaying text information, since no words are hidden by the frame.
The image areas that are hidden by borders can be adjusted in both vertical and horizontal directions.
The Multi-Display function enlarges images up to five times their original size, both vertically and horizontally. It enlarges images by the same zoom ratio in both vertical and horizontal directions, such as 2x2, 3x3, 4x4 and 5x5, or by different ratios in order to effectively use vertically or horizontally elongated spaces. LCD display versatility can be further enhanced by freely selecting the zoom ratio to match the installation space.
The optional Installation Mount makes it much easier to configure a video wall. There's no need for complicated display positioning, and fluctuations between installers are covered. It also saves time and cuts labor costs.
Video wall fluctuations occur when the bezels are not correctly aligned vertically and horizontally and the surfaces are not properly adjusted. Installation is quick and easy using the rigid frame, with easy adjustment using surface alignment magnets. This structure also makes the displays easier to remove when performing maintenance.
Attaching the cover frame to the unit provides even stronger protection against impacts. The screw holes for attaching the frame cannot be seen, so they do not adversely affect the beauty of the display.
The tough, 0.4-mm cover protects the unit from impacts. The joints between the body and the cover are also tight and free from gaps.
Model | TH-55LFV50U | TH-55LFV50W | |
Display | Screen Size | 54.6-inch | 55-inch |
Panel Type | IPS / Direct LED | ||
Effective Display Area (W x H) | 1,209.6 x 680.4 mm (47.62" x 26.78") | ||
Resolution (H x V) | 1,920 x 1,080 pixels | ||
Brightness (Typ) | 800 cd/m2 | ||
Contrast Ratio | 1,400:1 | ||
Dynamic Contrast Ratio | 500,000:1 | ||
Viewing Angle (Horizontal/Vertical) | 178°/178° | ||
Operating Life (Typ) | 60,000 hours (Backlight half-life) | ||
Connection Terminal | VIDEO IN x 1, Audio IN (Shared with Component IN) x 1 | ||
HDMI x 1 | |||
Component IN x 1, Audio IN (Shared with Video In) x 1 | |||
DVI-D IN x 1, Audio IN (Shared with PC In) x 1 | |||
PC IN x 1, Audio IN (Shared with DVI-D In) x 1 | |||
DVI-I Out x 1, Audio Out x 1 | |||
Control | Serial | D-Sub 9-pin x 1, RS-232C Compatible | |
LAN | RJ45 x 1 (Web browser control only) | ||
IR Transmitter In/Out | IR x 1/x 1 | ||
Audio | Speaker Out | External Speaker Terminal, 20 W [10 W x 10 W] | |
Electrical | Power Requirements | 110-127 V AC, 50 Hz/60 Hz |
220-240 V AC, 50/60 Hz, 110 V AC, 60 Hz (Taiwan Only) |
Power Consumption | 320 W | 320 W | |
Stand-by Condition | 0.5 W | 0.5 W | |
Mechanical | Dimensions | 1,215.5 x 686.3 x 121.2 mm (47.85" x 27.02" x 4.77" ) | |
Weight (Approx.) | 36.0 kg (79.3 lbs) | ||
Bezel Width | 3.4 mm (0.14") [Left/Top], 1.9 mm (0.08") [Right/Bottom] | ||
Bezel to Bezel | 5.3 mm (0.21") [Multi Screen] | ||
Operation Environment | Temperature | 0°C to 40°C (32°F to 104°F) | |
Humidity (Non condensation) | 10 % to 90 % |
