What exactly do you do with the rubber mounts? I pulled them through the holes but it seems you're just meant to set your fan on a horizontal fan slot... they don't get any more secure than that? And I'm guessing you can't use them at all vertically?

The rubber mounts are kind of a pain, but they are definitely worth it. They have noticeably reduced vibration noise in my case. You have to really crank on them to get them through all the way (I thought for sure it was going to tear), but it should secure quite nicely horizontally or vertically. It'll have a little more play than metal screws, but it's rubber so it's all absorbed anyway. Hope this helps!

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

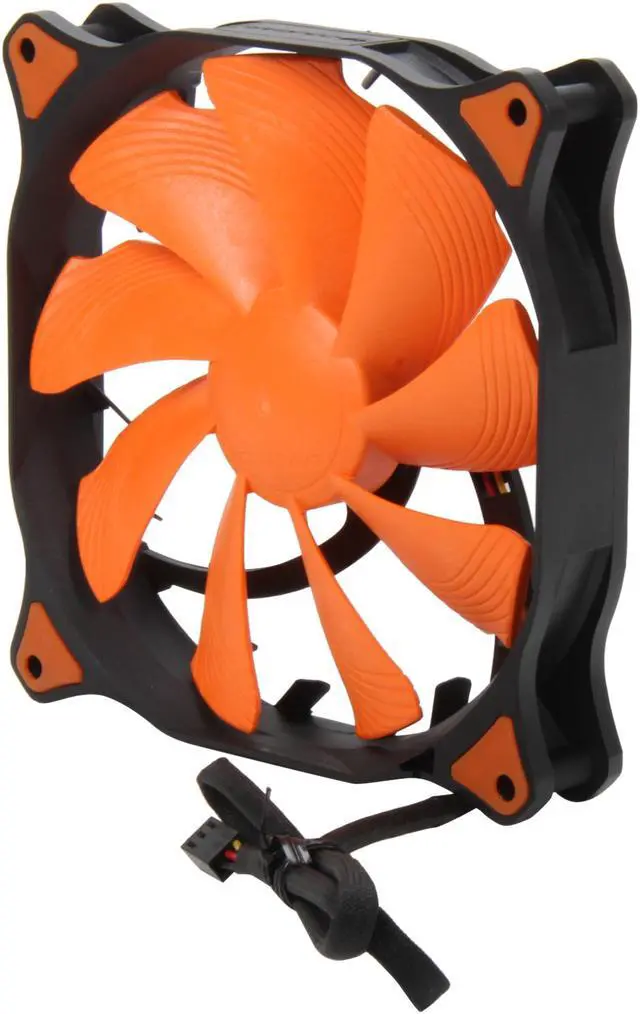

Main image of COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

100%

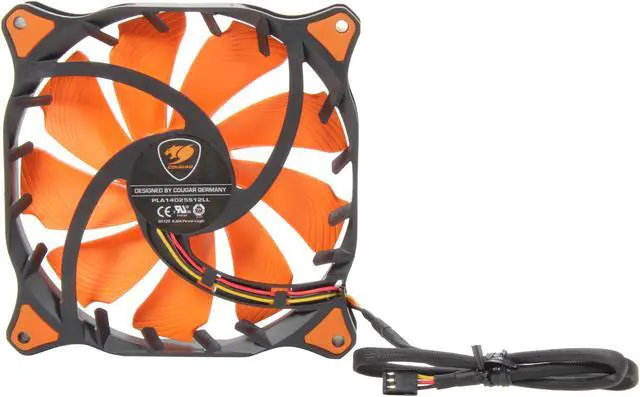

Alt view image 2 of 5 - COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

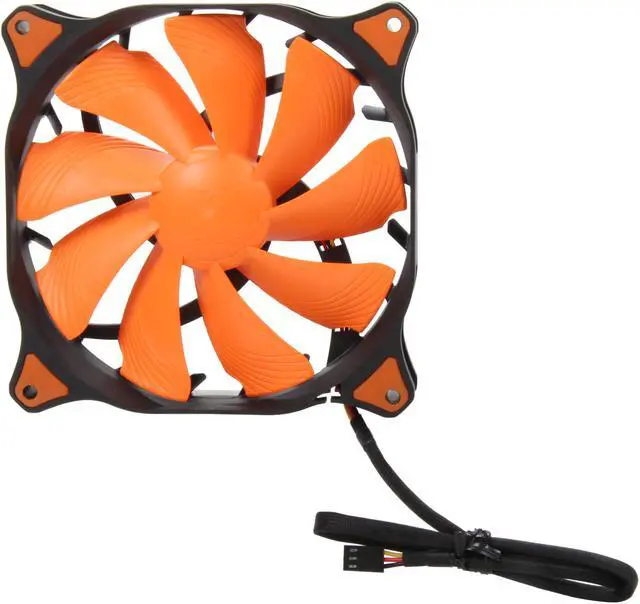

Alt view image 3 of 5 - COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

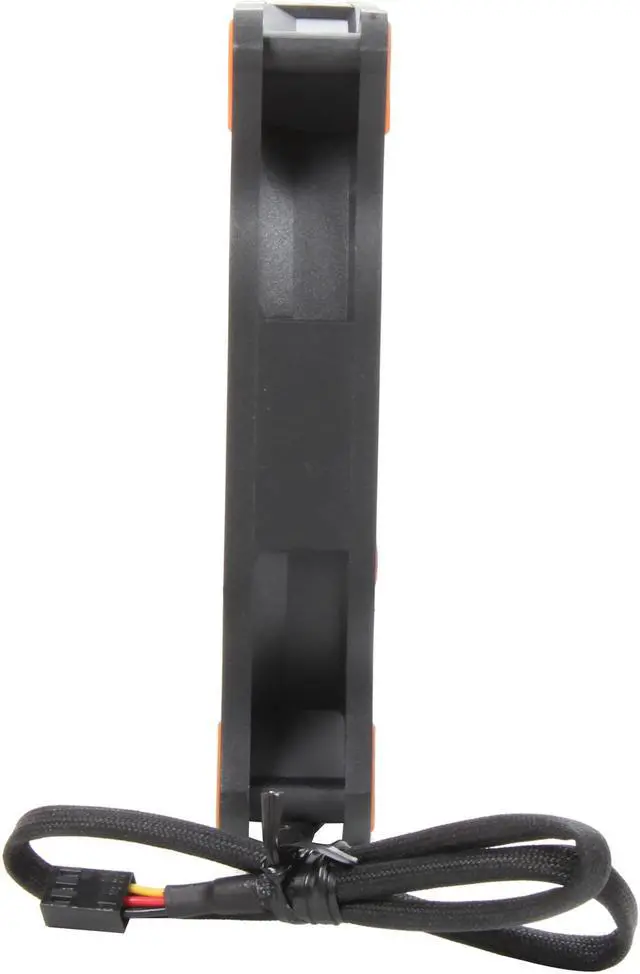

Alt view image 4 of 5 - COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

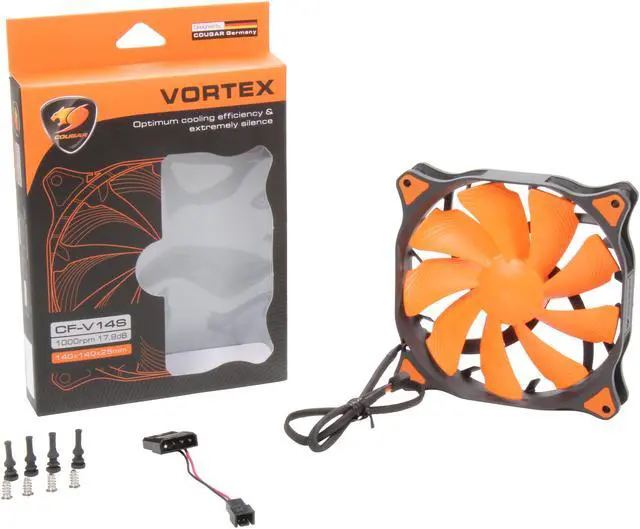

Alt view image 5 of 5 - COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

360^°

Shop All COUGAR Products

COUGAR CF-V14S Vortex Hyper-Spin 150,000 Hours 14CM Silent Cooling Fan

(55) Write a Review

140mm
1000 RPM 64.5CFM or 109.6 m3 / h
Hyper-spin

Overview

Specs

Reviews (55)

Any questions? Our AI beta will help you find out quickly.

Try me now

Features

HIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME PATENTED DESIGN
- Optimum airflow, air pressure & extremely silent performance
DIVERSION GROOVE BLADE DESIGN
- Innovative blade design focus air flow & optimum cooling efficiency (Patent)
ANTI-VIBRATION PAD DESIGN
- Reduce the vibrations efficiently & silent operation
AERO-DYNAMICAL DESIGN
- Air-inlet with optimal aero-dynamical design reducing noisy air turbulence
TOOL-LESS FIXED PINS
- Rubber fixed pins also reduces vibrations (fan run more quietly) and Tool-less makes it easy to mount, with no tools required

Details

HIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME PATENTED DESIGN

Optimum airflow, air pressure & extremely silent performance

COUGAR VORTEX PWM 120mm Fan: PWM-FUNCTION

DIVERSION GROOVE BLADE DESIGN

Innovative blade design focus air flow & optimum cooling efficiency (Patent)

COUGAR VORTEX PWM 120mm Fan: PWM-FUNCTION

ANTI-VIBRATION PAD DESIGN

Reduce the vibrations efficiently & silent operation

COUGAR VORTEX PWM 120mm Fan: PWM-FUNCTION

AERO-DYNAMICAL DESIGN

Air-inlet with optimal aero-dynamical design reducing noisy air turbulences

Specification

Model	CF-V14S
Marketing name	VORTEX 140
Dimensions	140 x 140 x 25
Speed	1000
Air flow @ 12V (CFM, m3/h)	60.5 / 109.6
Air pressure @ 12V (mm H2O)	1.18
Noise	17.9dB
Bearing type	Hyper-spin
Connector	3pin
Cable length	450mm
Cable sleeve	Yes
Accessories	3 to 4pin adapter
	Tool-less fixed pins
	Screws
Carton	Color box with PVC window
Lifetime L10 (hours / 25°C)	150000

COUGAR VORTEX PWM videos

Model
Brand	Cougar
Model	CF-V14S

Details
Fan Counts	1 Fan
Fan Controller	No Controller
Type	Case Fan
Compatibility	Case
Fan Size	140mm
Fan Thickness	25mm
Bearing Type	Hyper-spin
RPM	1000 RPM
Air Flow	64.5 CFM / 109.6 CMH
Noise Level	17.9dB
Power Connector	3 Pin
Color	Orange

Features
Features	HIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME UNIQUE DESIGN Optimum airflow, air pressure & extremely silent performance DIVERSION GROOVE BLADE DESIGN Innovative blade design focus air flow & optimum cooling efficiency ANTI-VIBRATION PAD DESIGN Reduce the vibrations efficiently & silent operation AERO-DYNAMICAL DESIGN Air-inlet with optimal aero-dynamical design reducing noisy air turbulences TOOL-LESS FIXED PINS Rubber fixed pins also reduces vibrations (fan run more quietly) and Tool-less makes it easy to mount, with no tools required

Dimensions & Weight
Dimensions	140 x 140 x 25mm

Package Contents
Package Contents	Case Fan 3 to 4pin adapter Tool-less fixed pins Screws
