Does it come bandled with RAM? As it is said "2 x 260Pin SO-DIMM DDR4 2400"

Mine was bundled with Gskill ram as a promotion, but unless otherwise noted I would assume no. I think what you are reading is the ram specification

Is it compatible with 8th generation Intel processors as well?

no, but CARC Mini on smallformfactor forum has a 8th Gen version available.

Is there any possibility to buy this without the MXM card just with the MXM cooler ?

You can get the desktop and sell the card to me. You can find me on thinkpad forum, User ID: RMSMajestic

The manual only lists the Z270 chipset board as supporting Intel RAID on the SATA ports. Does that board also allow Intel RAID on the M2_1 and M2_3 m.2 ports? How about M2_2?

even if it does, you are gonna be bottlenecked by the total bandwidth of PCH chip as well

Is this ready to go out of the box? What else does it need to get running? I know it has no peripherals

You need to also buy a processor and memory.

Is there enough room within the motherboard layout to use an Intel Stock CPU Cooler?

Hello, Thank you for contacting us in regards to your question. Yes, rest assured. You will have room still. Thank you, Newegg Support

What version of hdmi?

Most likely 2.0b, asrocks website says it's capable of 4k @60 Hz

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 2 wish lists)

Main image of ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

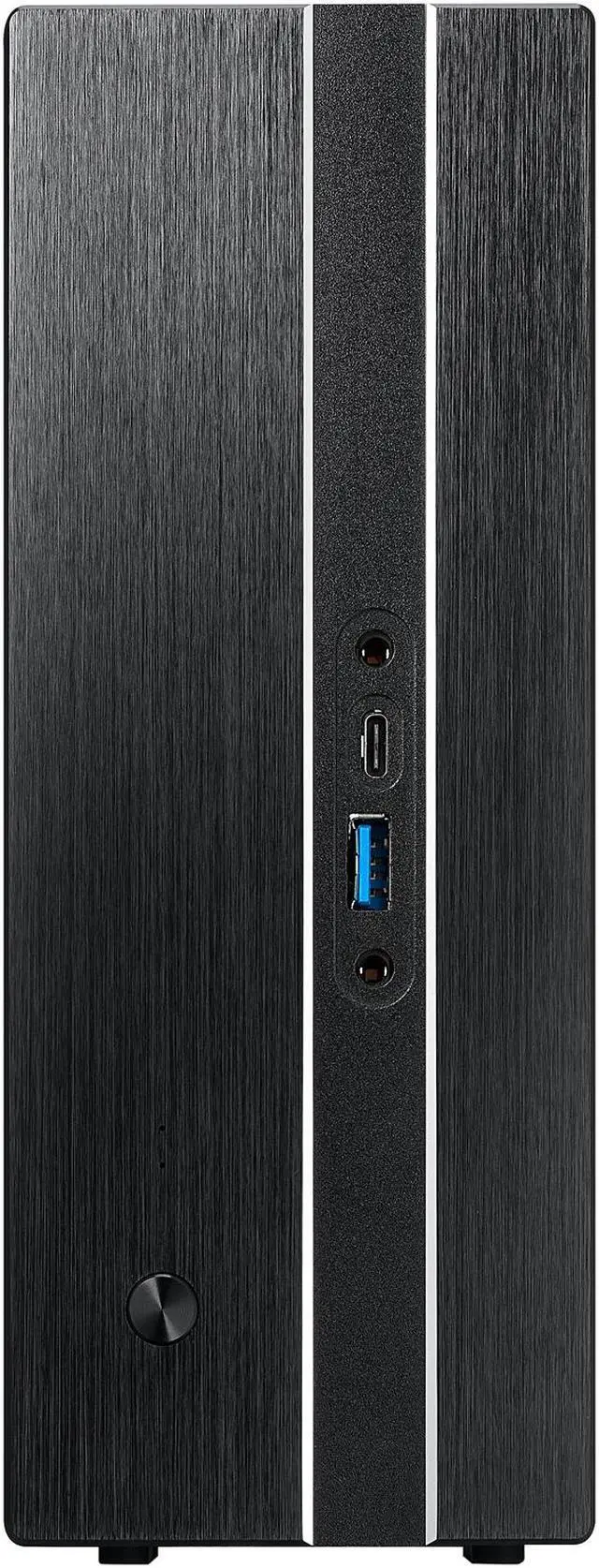

Alt view image 2 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

Alt view image 3 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

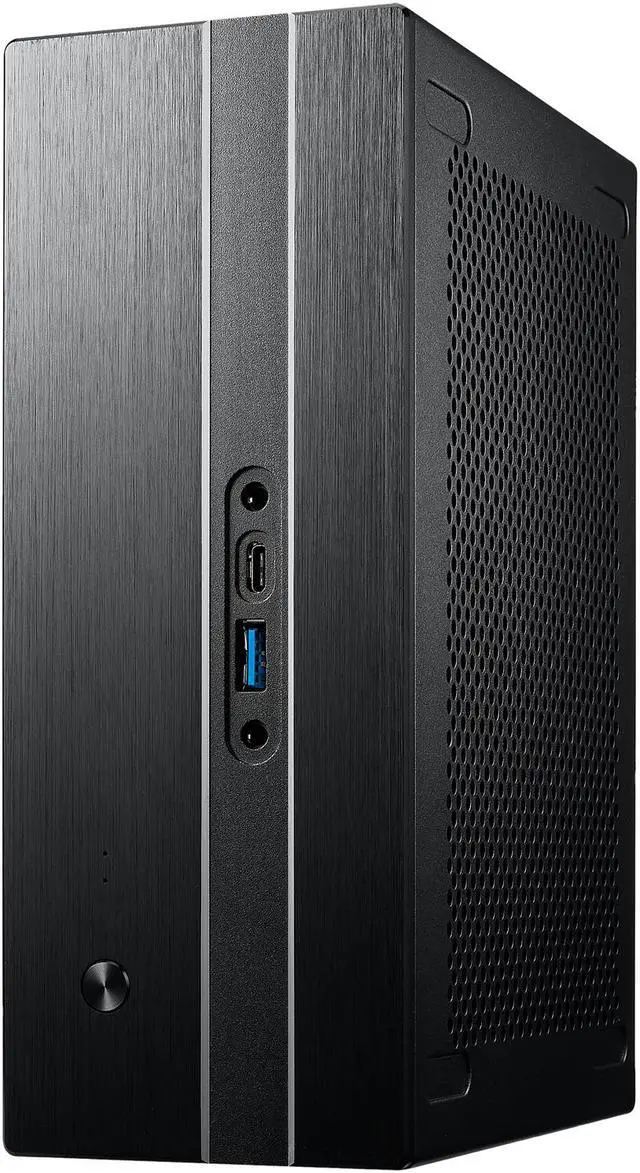

Alt view image 4 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

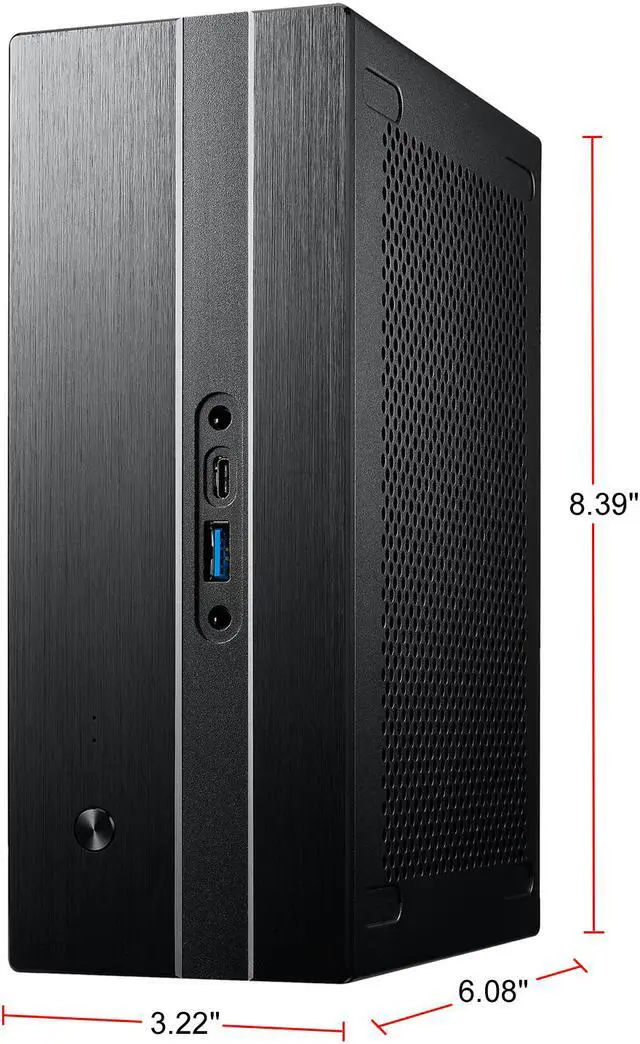

Alt view image 5 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

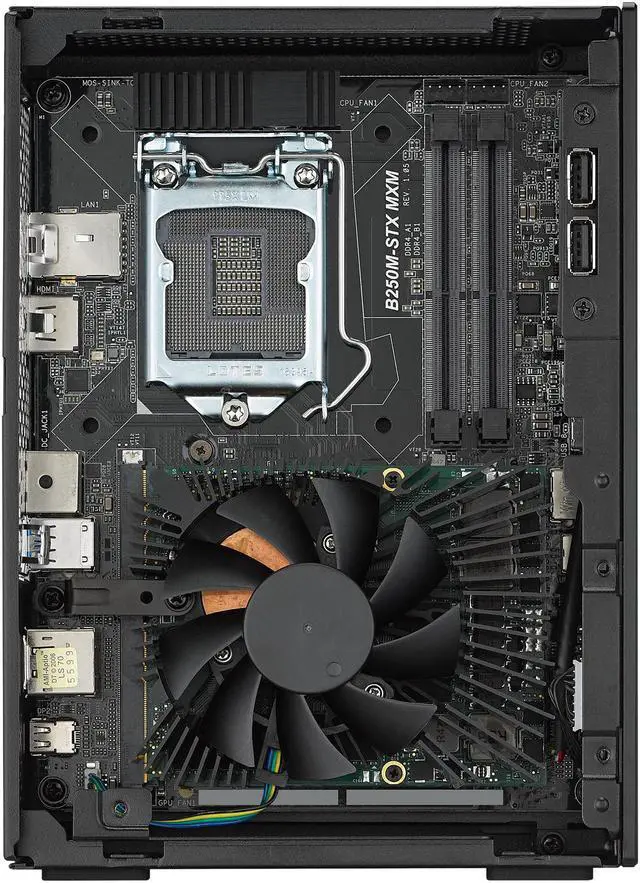

Alt view image 6 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

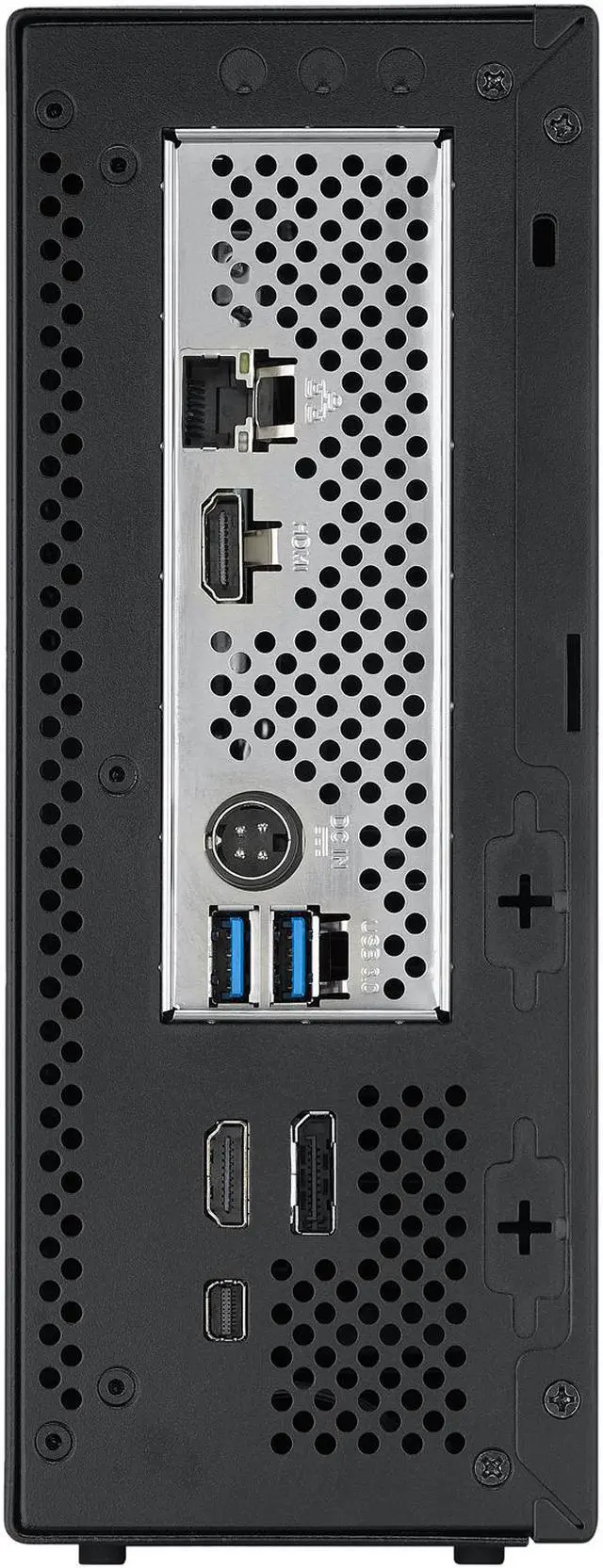

Alt view image 7 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

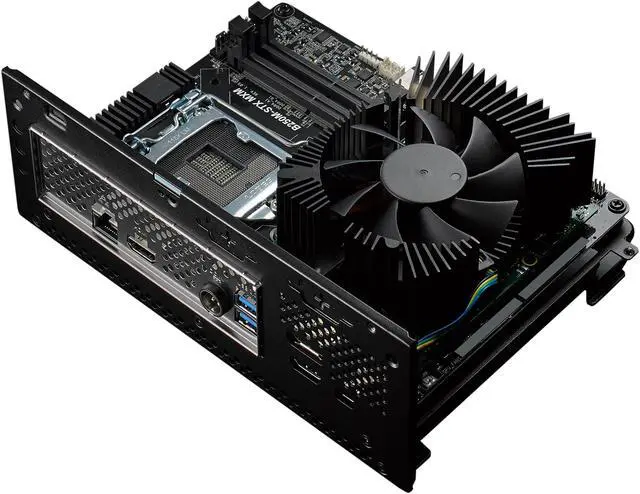

Alt view image 8 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

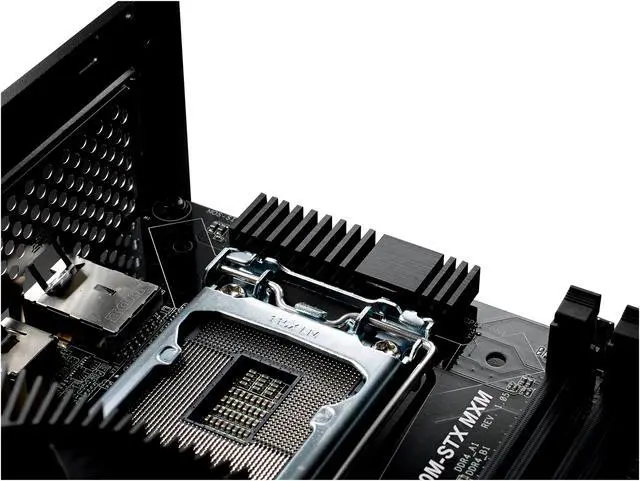

Alt view image 9 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

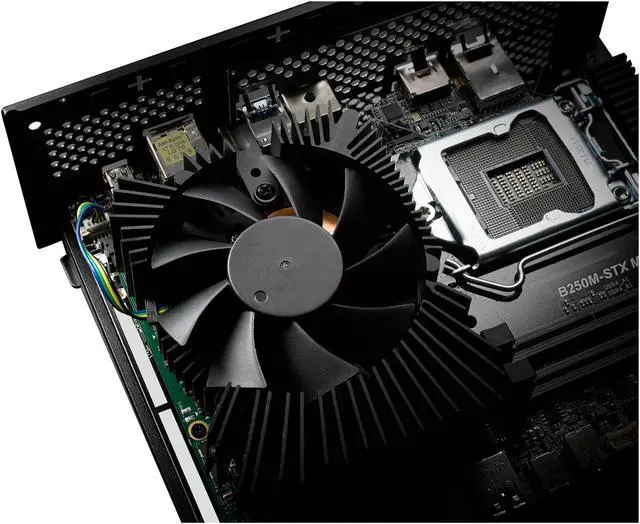

Alt view image 10 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

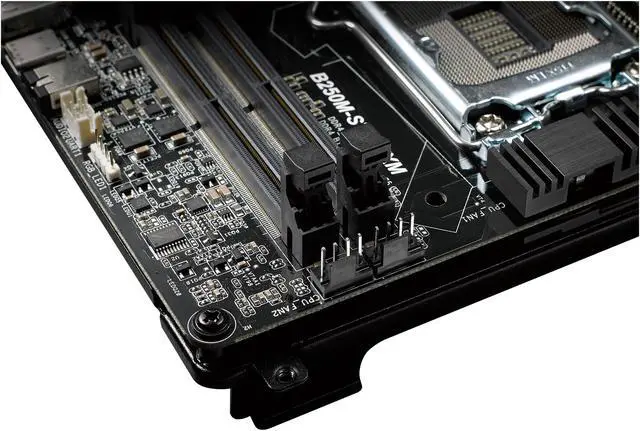

Alt view image 11 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

Alt view image 12 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

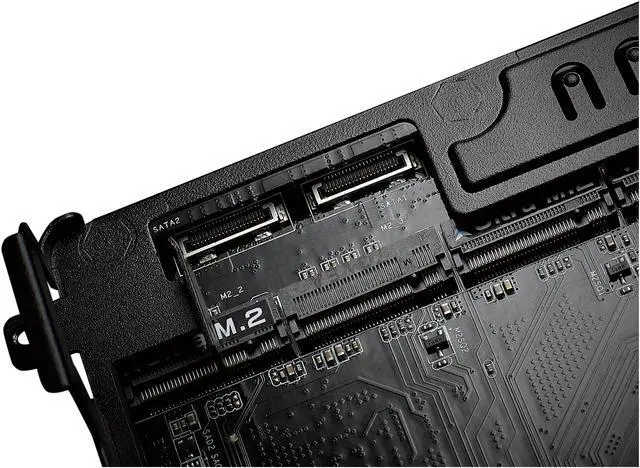

Alt view image 13 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

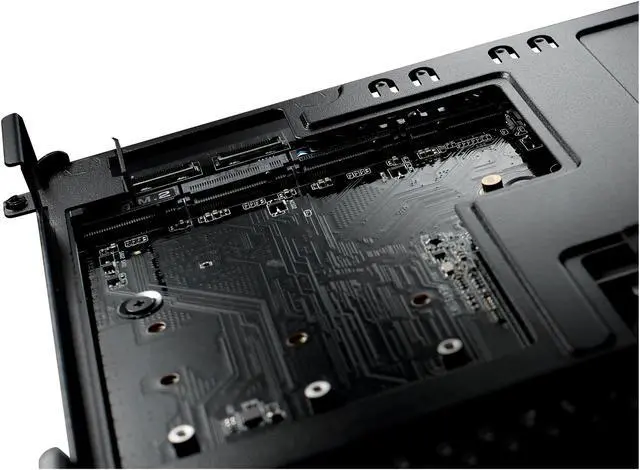

Alt view image 14 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

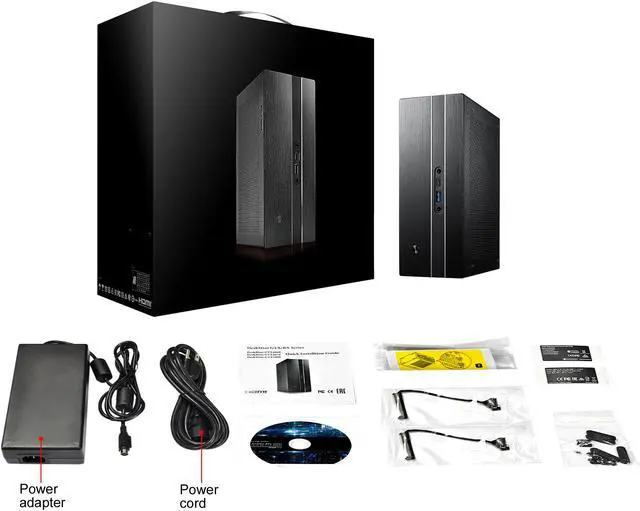

Alt view image 15 of 15 - ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

Shop All ASRock Products

ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

(1) Write a Review

Supports Intel 6th/7th Core i7/i5/i3/ Pentium / Celeron Processors (Socket 1151) (Max. TDP 65W)
2 x 260Pin SO-DIMM DDR4 2400
NVIDIA GeForce GTX 1060 (6GB GDDR5)

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

The ASRock DESKMINI can be configured to deliver the computing power of a full-sized PC in a super compact chassis of only 2.7L. It comes with NVIDIA GeForce GTX 1060 (MXM Type B) which is ready for VR and Ultra HD 4K. It can take 6th/7th Intel Core processors, DDR4 memory, M.2 SSD, and Intel Optane Memory to make a powerful mini workstation. You can also create a unique style by connecting LED strip to its RGB LED header.

1. LGA1151 Socket Type	4. Rich USB Ports	7. 2 x USB 3.1 Gen1
Supports Intel® 6th/7th Processors	USB 3.1 Gen1 Type-C USB 3.1 Gen1
2. MXM Type B Graphics	5. Great Connectivity	8. Multi 4K@60Hz Outputs
NVIDIA GTX GTX10XX Series NVIDIA Quadro Cards AMD RX5XX / RX4XX Series	Intel® Gigabit LAN Intel® 802.11ac WiFi	DisplayPort HDMI Mini DisplayPort
3. Dual DDR4 SO-DIMMs	6. HDMI output
3200MHz DDR4, up to 32GB

MXM Type B Graphics
DeskMini GTX/RX supports MXM Type B graphic card for maximum performance to fulfill the need of gaming and other task with ease.

Multi 4K@60Hz Outputs
Equipped with multiple video output that supports revolutionary 4K@60Hz signal to give unhindered graphics performance.

VR READY
The tiny little machine with its rock-solid performance makes DeskMini GTX/RX the best VR machine, prepare yourself well to enjoy the impressive world of Virtual Reality

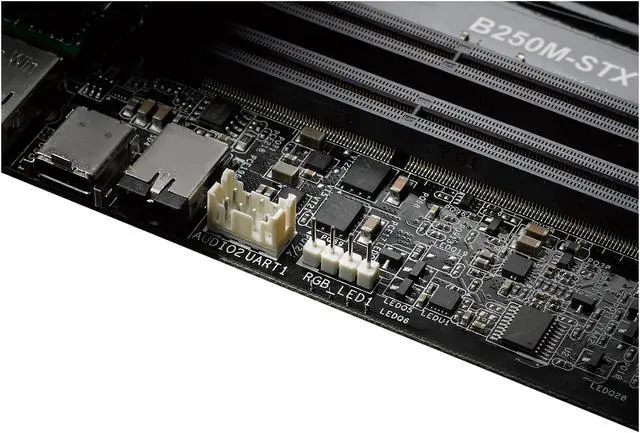

RGB LED Header
Build your own colorful lighting system! ASRock RGB LED allows user to connect LED strip and create their unique PC style easily.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Triple Ultra M.2 (For Z270 SKU Only)
Triple of the world's fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, two of which also supports SATA3 6Gb/s M.2 modules.

USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.

Small But Powerful
The World's First Micro-STX mini PC that supports Intel desktop processor, MXM Type-B graphic cards, 3x Ultra M.2 slots and three display outputs. Such incredible performance in a tiny 2.7-liter size.

CPU Type	Supports Intel 7th/6th Gen LGA1151 Processors (Max. TDP 65W) * Not Compatible with Intel 8th Gen CPUs
CPU Socket	Intel Socket LGA1151

Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 2400
Max Memory Supported	32GB

Storage Installed	No Hard Drive
Serial ATA	2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
M.2 Slot	M.2_1: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb M.2_2: Type 2280/2260/2242 PCIe Gen3 x4 M.2_3: Type 2280/2260 SATA 6Gb

Discrete Graphic Card	NVIDIA GeForce GTX 1060 (6GB GDDR5)
Integrated Graphics	Intel HD Graphics Integrated by CPU

LAN	Intel i219V
Max LAN Speed	1Gbps

ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

Learn more about the ASRock DESKMINI GTX 1060

Customer Reviews of the ASRock DESKMINI GTX 1060

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Front USB	1 x USB 3.1 Gen1 Type-C 1 x USB 3.1 Gen1 Type-A
Front Audio Ports	1 x Head Phone with Mic Jack 1 x Mic-In
Other Front Ports	Connectors: - 2 x USB 2.0 Headers - 1 x Front Panel Header - 2 x 4-Pin Fan Connectors - 1 x GPU Fan Connector - 1 x 4-Pin DC Power DIN (Supports 19V Power Adapters) - 1 x RGB LED Header

HDMI	2
DisplayPort	1 x DisplayPort, 1 x Mini DisplayPort
Rear USB	2 x USB 3.1 Gen1 Type-A
