Specifications: Supports standard and widescreen (16:9 & 16:10) aspect ratio
Connects up to 6 adapters per system
Chip: DisplayLink DL-3500
Resolution (max):
4:3 ratio: 2048 x 1536
16:10 ratio: 2048 x 1280
16:9 ratio: 2048 x 1152
Supports 24-bit color depth
Video memory: 64MB
Integrated 2.0/5.1 channel audio (32, 44.1, 48KHz, 16-bit, SNR=90dB)
USB bus powered and hot-pluggable
Interfaces/ Port:
1, 19-pin, HDMI, Female
1, 10-pin, USB 3.0, Micro B, Female
USB 3.0 cable:
USB 3.0 Micro B (M) to USB 3.0 Type A (Male)
Length: 3.3 ft (1m)
Color: Black
Certifications/Standards: FCC, RoHS
Specifications: Supports standard and widescreen (16:9 & 16:10) aspect ratio
Chipset: MCT Trigger T5-301
Connects up to 6 adapters per system
Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Supports 32-bit color depth at 1920 x 1200 (16:10), 2048 x 1152 (16:9), and 1600 x 1200 (4:3) resolutions
Display rotation: 0, 90, 180, and 270 degree
Display modes: Primary, Extend and Mirror
USB bus powered and hot-pluggable

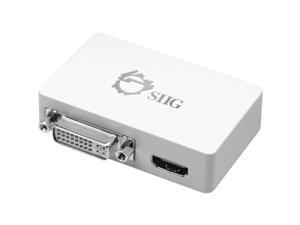

Specifications: Chipset: DisplayLink DL-3900
Compliant with Universal Serial Bus 3.0 Specification
Compatible with both standard (4:3) and widescreen (16:9 and 16:10) aspect ratios
Automatically detects the connected displays using VESA compliant protocols
Allows connecting up to 3 adapters and up to 6 monitors per system
Operating power consumption: 2.5W
Display modes: Primary, Extended, Mirror
Resolution:
Standard (4:3 & 5:4):
1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600, 640x480
Widescreen (16:9 & 16:10):
2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x800, 1280x768, 1280x720
Interfaces/Ports:
1x 9-pin, Type B, USB 3.0, Female, Input
1x 29-Pin, DVI-I, Female, Output
1x 19-Pin, HDMI, Femal...
Specifications: Supports standard and widescreen (16:9 & 16:10) aspect ratio
Chipset: MCT Trigger 5 T5-302
Connects up to 6 adapters per system
Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Compliant with HDMI 1.2 Specification
Supports 32-bit color depth at 1920 x 1200 (16:10), 2048 x 1152 (16:9), and 1600 x 1200 (4:3) resolutions
Display rotation: 0, 90, 180, and 270 degree
Display modes: Primary, Extend and Mirror
USB bus powered and hot-pluggable

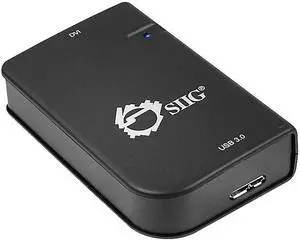

Specifications: Chipset: DisplayLink DL-3500
Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Complies with DVI specification v1.0
Compliant with VESA auto display identification
Display modes: Primary, Extended, Mirror
Resolutions:
Standard (4:3):
1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640s480
Widescreen (16:9 & 16:10):
2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720
Video memory: DDR2 512MB
Supports hot-pluggable
Product:
Dimensions: 2.08"(W) x 0.78"(H) x 3.42"(D)
weight: 0.13 lbs
color: Black
material: Plastic
Interfaces/Port:
1x 10-pin, USB 3.0, Micro B, Female, Input
1x 29-pin, DVI-I, Female, Output
Cable:
USB 3.0 Type A to Micro B (0.3m)
Color Black
Environmental conditions:
Operating temperature: 32 to 104 degrees...
