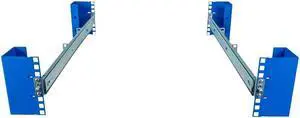

RackSolutions 1U Universal Rail with 24" Depth and Wirebar - Adjustable Mounting Depth (10" - 31.5") - Compatible with Dell, HP, IBM, Apple Servers- Type: Rack Rails
- Weight Capacity: 45 lbs. (20.4 kgs)
- Specification: Rail OEM: All Purpose
Server Compatibility: Apple, Dell, HP and IBM
Rack Type:
Mounts in any type of 4Post rack
2Post versions are also available
Hole Type:
Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type: Fixed
Mounting Depth Range: 0" to 31.75" (0 mm to 806.5 mm)
Equipment Width:
Maximum: 17.625 (448 mm)
1U Minimum: 16.625" (422 mm)
Equipment Depth:
The rack rails support flange is 23 1/2" (597 mm) long.
The rack rail will support servers computers or equipment up to 35" (889 mm) deep.
Overall Installation Depth: Maximum overall depth is the same as th...
- Model #: 1UKIT-109
