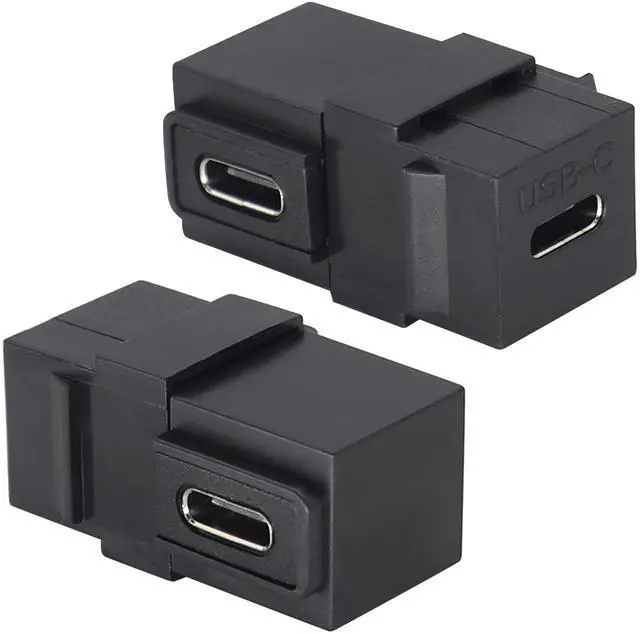

BUCIER 90 Degree USB C 3.1 Keystone Insert Jack Connector Right Angled USB 3.1 Type-C Female to Female Keystone Insert Socket Adapter Coupler for Wall Plate Outlet Panel (90 Degree/Black/2 Pack)

Quantity:(2-Pack)

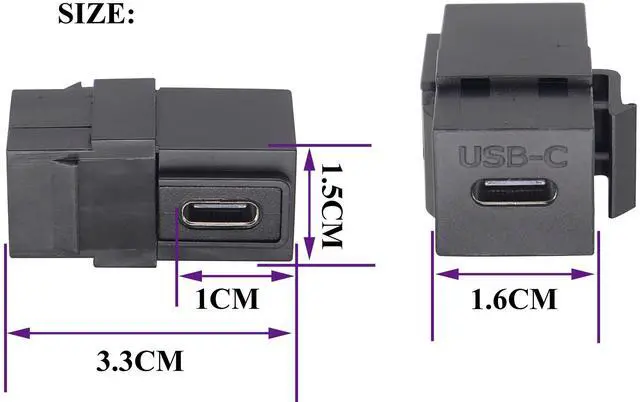

Size:Length, width, height(3.3cm*1.6cm*1.5cm)

Material:plastic.

Color:(Black)

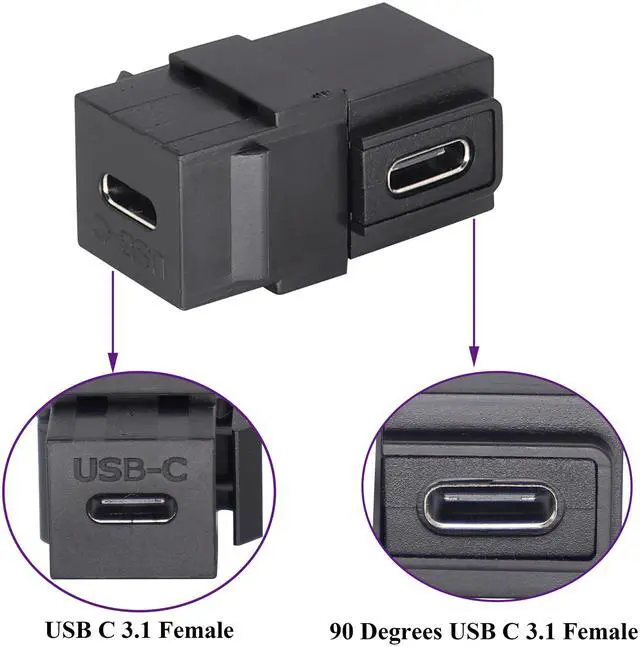

Connectors 1 :90 Degree USB 3.1 Type-C Keystone Female jack .

Connectors 2 : USB 3.1 Type-C Keystone Female jack.

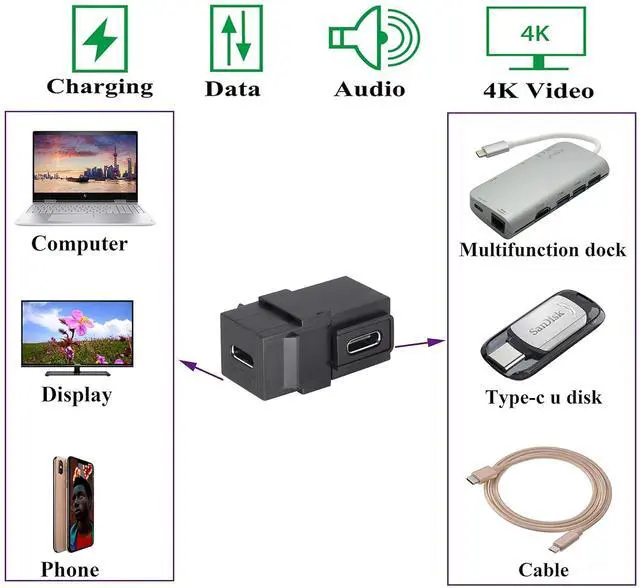

This is 90 Degree USB 3.1 full-featured adapters, It supports Charging, data sync,audio and video transfer,The maximum current is 3A, Data synchronization speed up to 5 Gbps.

It is usually used as a USB C type extension cable, charging data transmission for mobile phones and computers, and audio and video signal transmission.

(Note:3 A current, 5 Gbps data synchronization and USB Type C 3.1 full-featured depends on your extension cable)

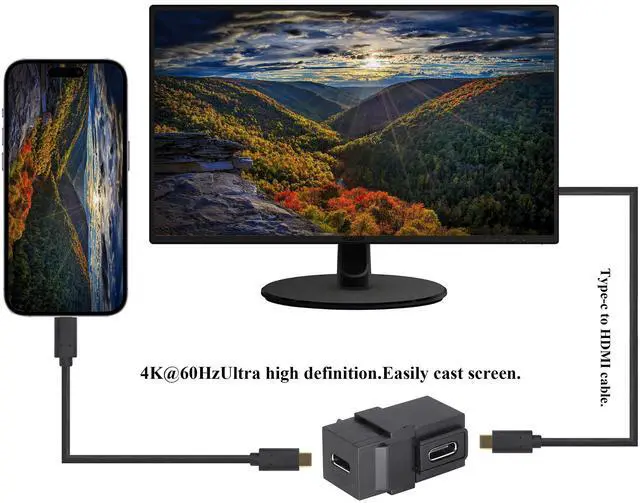

(Note: Make sure that your input phone or laptop and output monitor type c port support video input and output, allowing this cable to be used with a c-type hub device for easy video projection

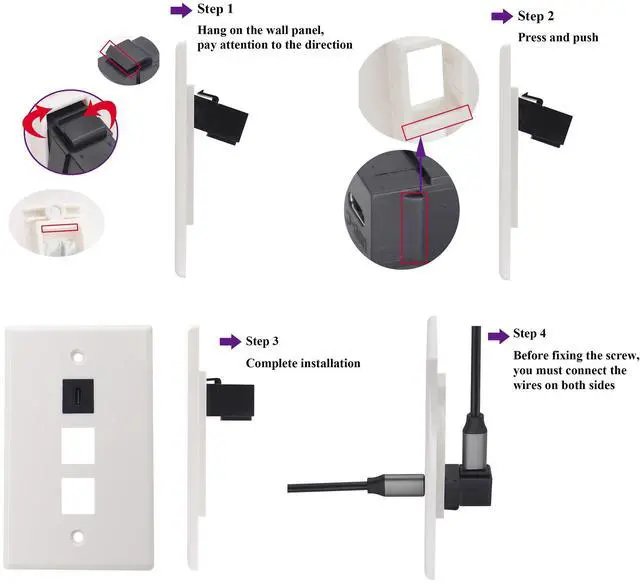

Installation Tips:

1. USB Type-C Keystone Jack Insert is vertically oriented

2. Hook the bottom lip into the cut-out while holding the keystone insert at a slight angle

3. Rotate the insert upward to snap the retaining clip on the top into the cut-out until it snaps into place

4. Connect an USB Type-C adapter to route cables in tight spaces

5. Test all the cabling with the keystone insert before installing permanently in the wall

6:(Note: This 90 Degree USB Type-C adapter may not be suitable for the ultra-thin decorative wall panel of the trapezoidal jack. Please think about your installation position before loading. The 90 Degree USB Type-C adapter is difficult to remove after installation.)

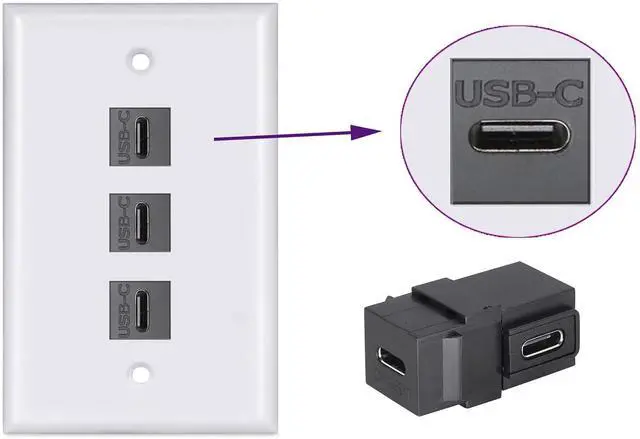

USB Type-C Keystone Jack insert provides a simple and secure way to connect USB Type-C cables into a wall plate for a professional-looking installation. Disguise your cables behind the wall instead of running them on the floor in a tangled mess.

Additional Features

• [Data&Charging]:USB 3.1 full-featured adapters, It supports Charging, data sync,audio and video transfer,Maximum current:3A,Data synchronization speed up to 5 Gbps.It is usually used as a USB C type extension cable, charging data transmission for mobile phones and computers, and audio and video signal transmission.(Note:3 A current, 5 Gbps data synchronization and USB Type C 3.1 full-featured depends on your extension cable)(Note: Make sure that your input phone or laptop and output monitor)
• The lastest 90 Degree type C keystone jack.It has a female Type C female connector at each end,provide a simple and secure way to connect USB-C cables into a wall plate.The vertical guide wedge is compatible with the wallboard or patchboard at the standard wedge opening.
