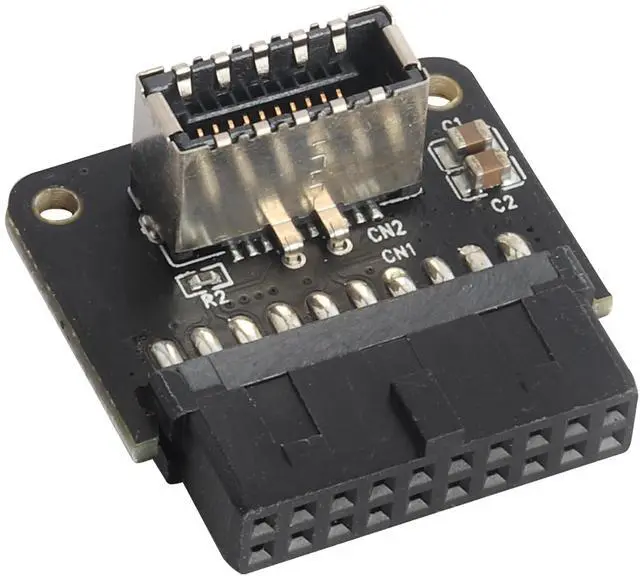

BUCIER 1Pack 90 Degree Type E 3.1 to USB 3.0 19Pin Header Adapter Up 90 Degree USB3.1 Female Front Panel Header to USB 3.0 19Pin Female Header Extension Adapter for Computer Motherboard.(19Pin/UP)

Quantity:(1-Pack),

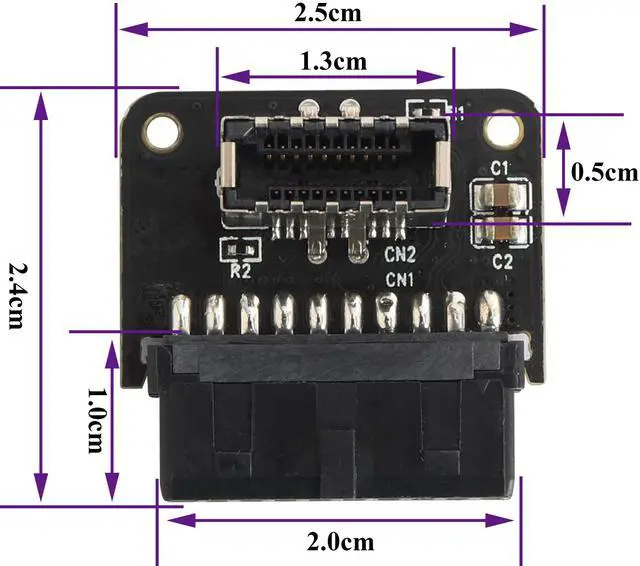

Size:Length, width, height(2.5cm*2.4cm*1cm)

Material:Plastic+metal .

Color:(Black).

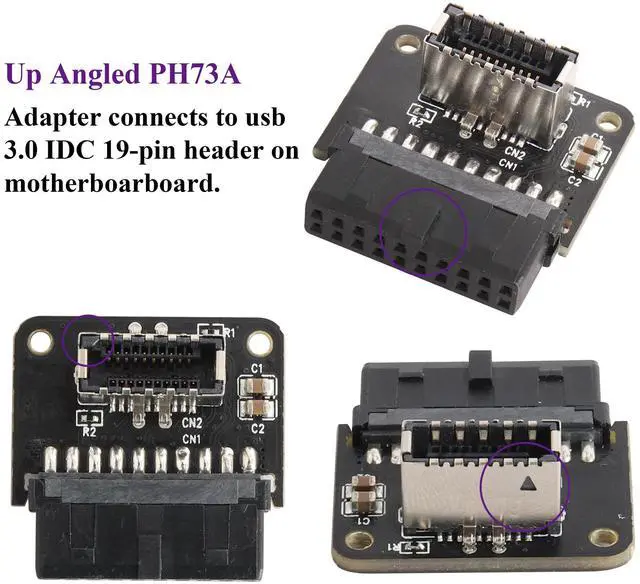

Connectors 1: (PH73A) Up-90 degree USB 3.0 (19/20Pin) female front panel socket port.

Connectors 2: 90 degree USB 3.1 Type-E female front panel header.

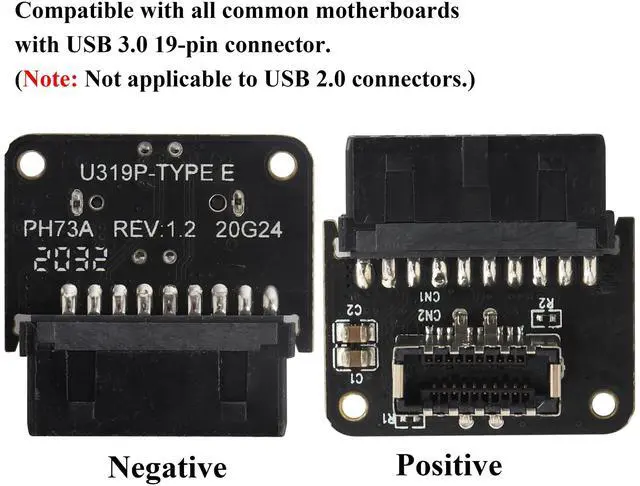

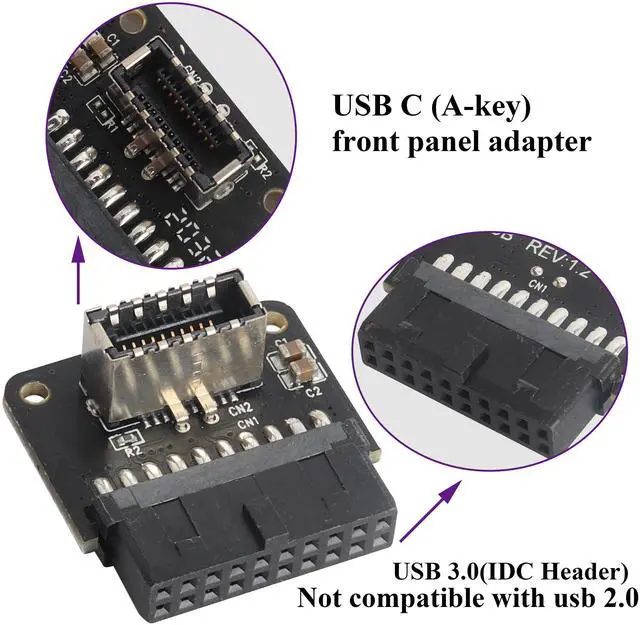

(Note: Does not convert from 5GB/s to 10GB/s. Not compatible with USB 2.0 motherboard IDC connector.)

Function:

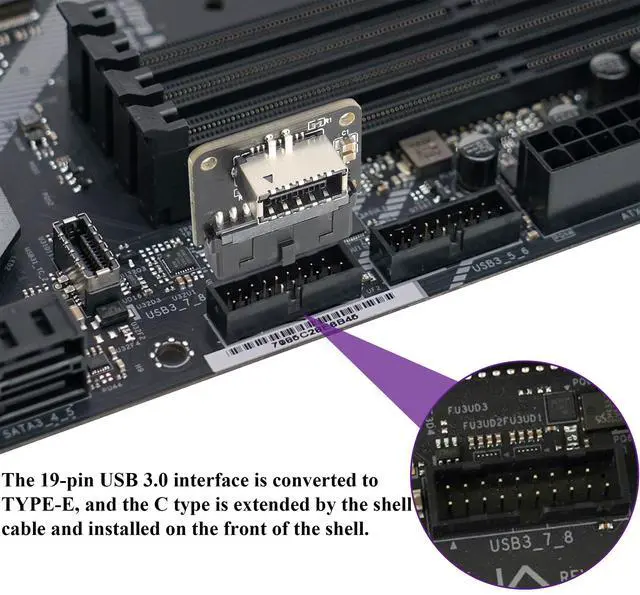

used to convert the USB3.0 (19pin/20pin connector available on the motherboard to the TYPE-C front TYPE-E interface.

Mounted to the PCI bracket, helps you easily connect the devices with type C interface.

Support system: WINXP/WIN7/WIN8/WIN10 32/64BIT/MAC/Linux

Because the USB 19Pin design is all Gen1 signals (USB 3.0 5Gbps), this product is only an interface converter, so the converted rate is only 5Gbps, which cannot increase the speed.

Note:

1.Please remove power cable and wait 20 seconds before installation.

2. Must install the adapter step by step to avoid shorting pins and motherboard damage.

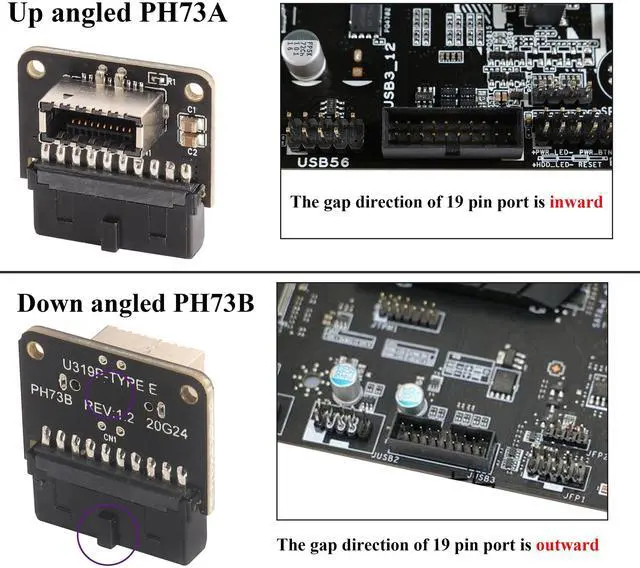

3. The adapter has three types: (PH73B) Up-90 degree, (PH73A) Down-90 degree and (PH73S) 180 degree. Please pay attention to the pictures before buying.

Additional Features

• [Data and Voltage]:(19pin/20pin)USB 3.0 adapter(5 GBit/s),It cannot be converted from 5GB/s to 10GB/s. The power from the USB 3.0 header on the motherboard has a power rating at 4.5W (0.9A x 5V), Not compatible with USB 2.0 motherboard IDC connector to 100W (20A x 5V). This may result in a power shut down to protect the motherboard and its components. Devices such as Pro and other tablets should not be charged through this port.
