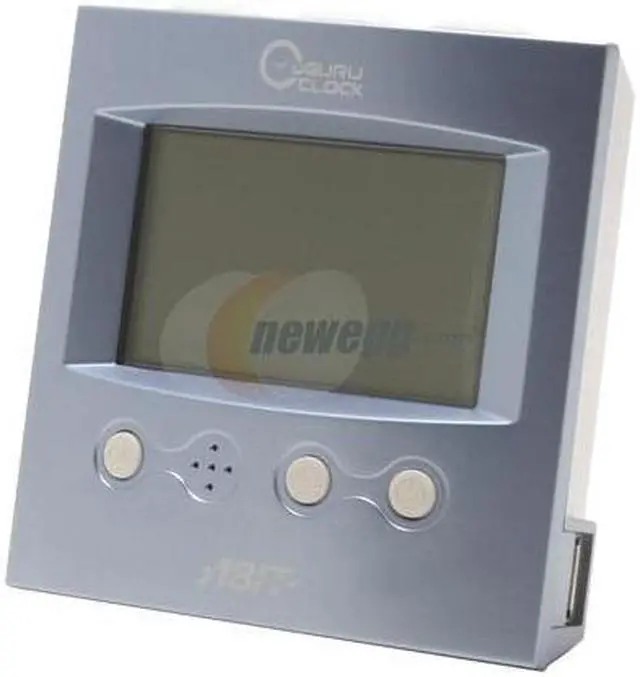

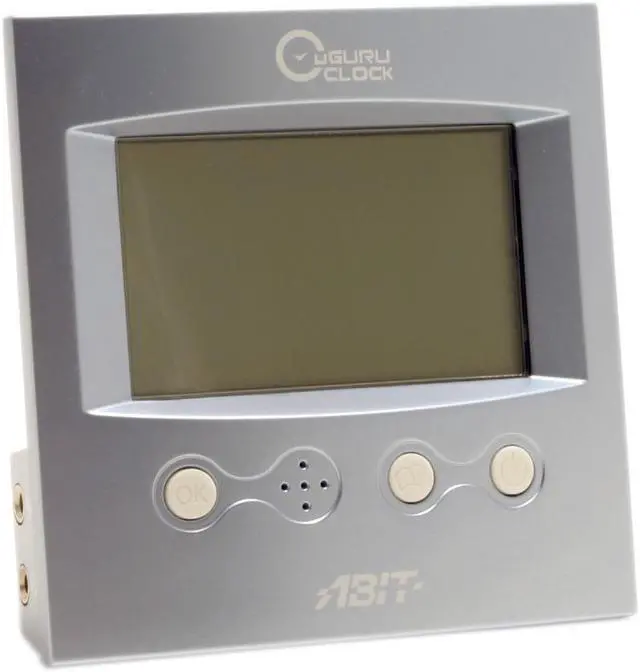

ABIT Model Guru Clock (GC-03) Display Panel

  • Model Guru Clock (GC-03)
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Universal abit USA Guru Clock (GC-03)

Model
Brand ABIT
Model Guru Clock (GC-03)
Details
Specifications Display Panel:
Large LCD screen (4*7cm)

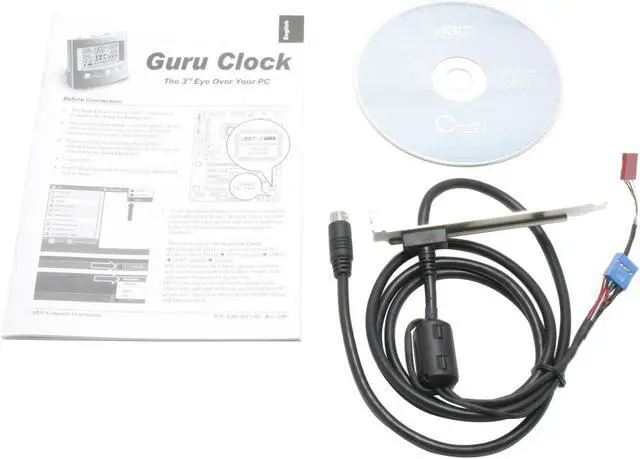

Guru link cable (1.5M)
PC power on/ off
Hard button: Power*1/ Menu*1/ Select*1/ Skype & MSN Messenger*3
USB Extension Port (1 port for USB model upgradeable)
LCD Backlight (optional)
Room temperature (10?~50?)
MIC and Headphone support (2 Stereo Jack)

Information logo indicator:
Current time
USB working
Hardware Monitor warning
MSN/E-mail
Skype

µGuru functions indicator:
FAN speed
Temperature
Voltage
OC

Hard Button:
Power button: Power on/ off
Menu: Select 1st level for Time/ Room temp/ FAN speed/ OC/ TEMP/ Voltage
Select: OK and Enter function
Messenger: Phone up/ off
Skype/ MSN Private Call: Depend on utility
Skype: Conference Call: Depend on utility

I/O and others:

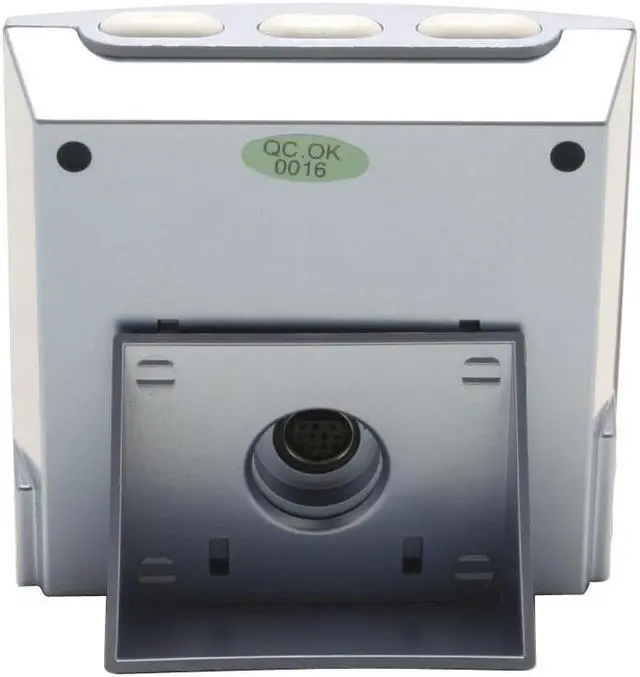

Guru link connector x1 (Back side)

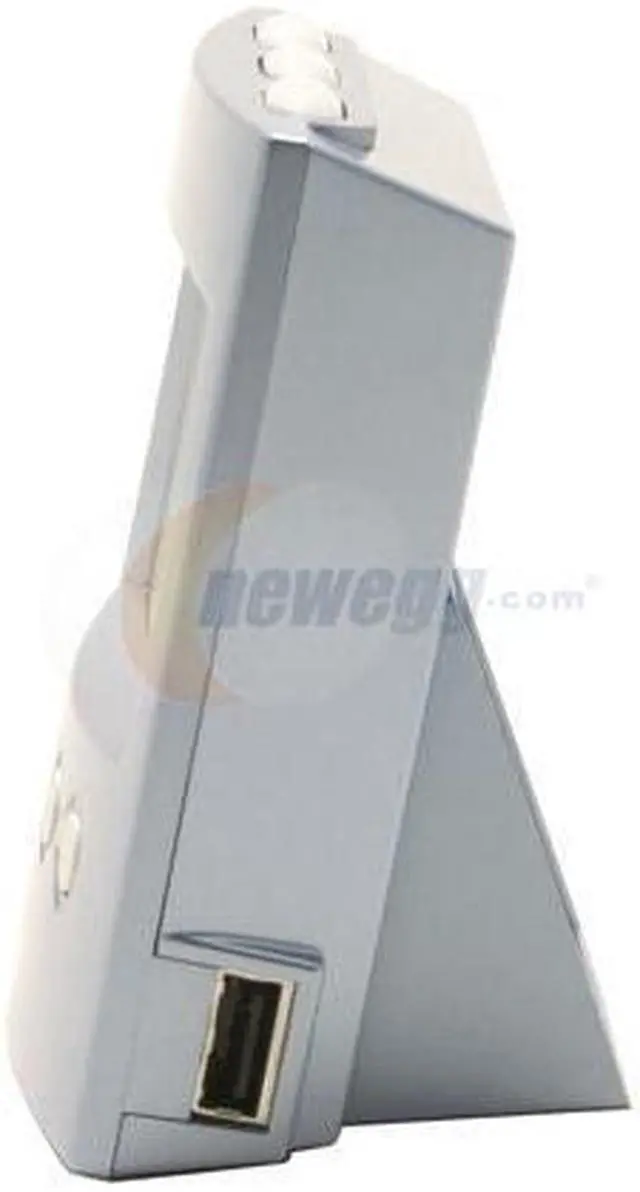

USB Extension Port x 1

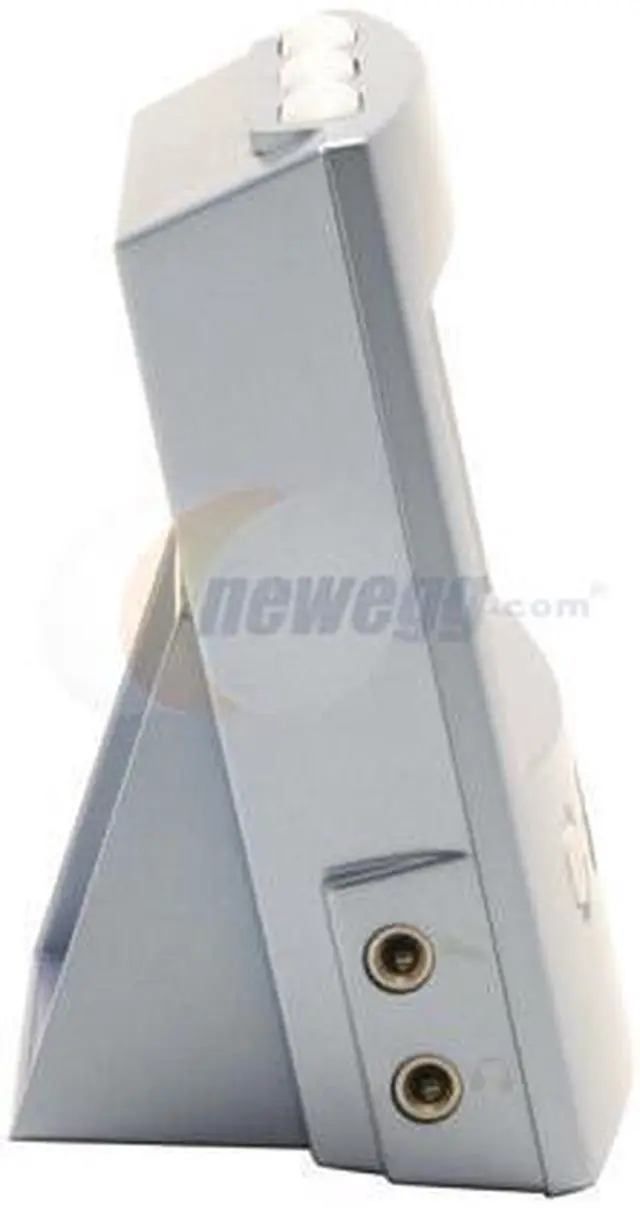

MIC & Headset x 1 each (2 Stereo Jack)
Buzzer on front side

LCD Layout:
LCD Dimension: 68mm* 41mm
View area: 65mm* 38mm
Display Type: HTN
View direction: 12 o'clock
Front Polarizer: Transmission/ Positive
Rear Polarizer: Reflective/ Positive
Operating Voltage: 5V
Connector: PIN
Features
Features Part of the µGuru family, ABIT's Guru Clock allows you to access and select system performance your system while playing games, listening music, browsing Internet or office applications in full screen without need to stop or close the application you are running.

In addition, Guru Clock displays overclocking levels, hardware monitoring status, room temperature, debug code and warning notice, allows you to power on/off your PC, and even notifies you of new Skype/MSN/e-mail messages - all from its convenient LCD display.

Support Models: AW8-MAX, AW8, AL8, AL8-V, BL8, NI8 SLI & future ABIT µGuru supported models.
Additional Information
First Listed on Newegg September 01, 2005
