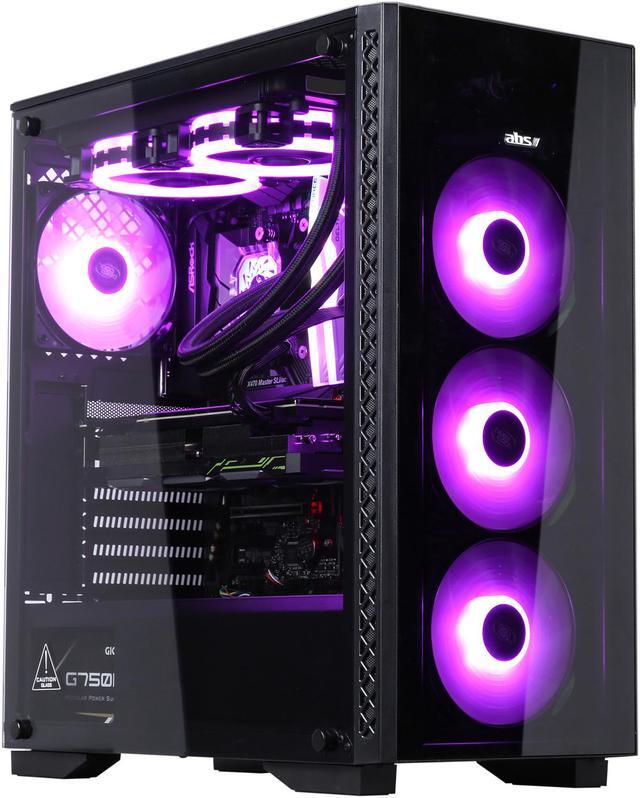

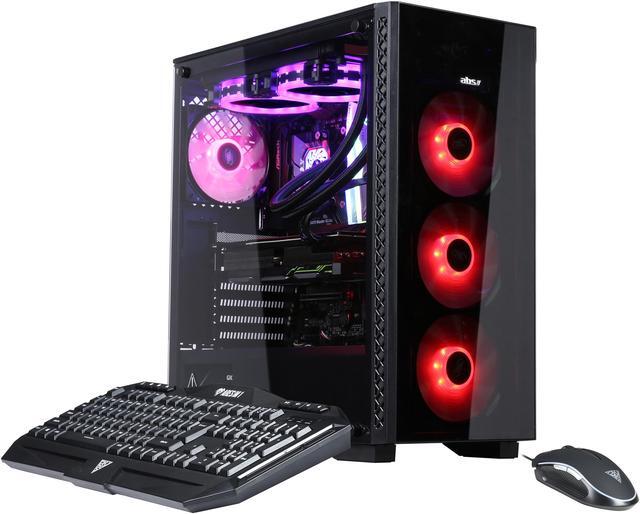

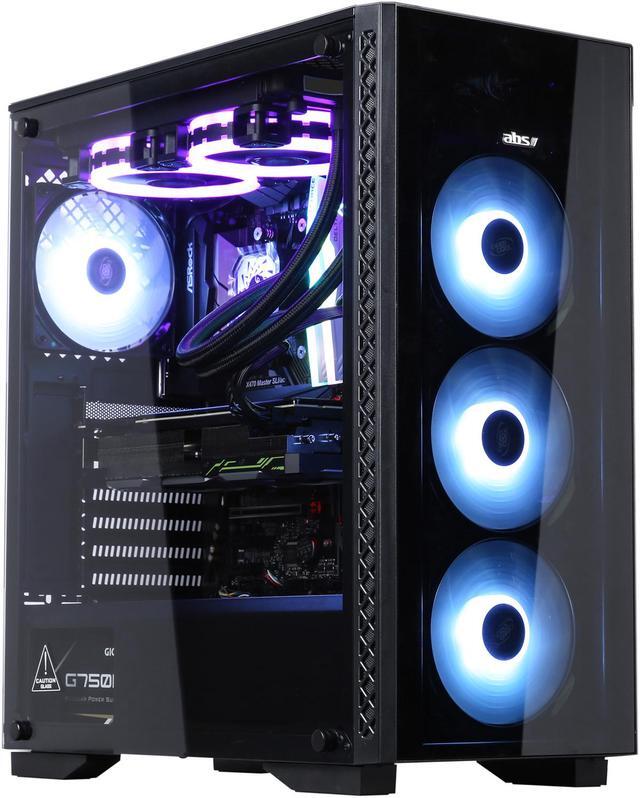

ABS Mage H - Ryzen 9 3900X - GeForce RTX 2080 Ti - 16GB DDR4 - 1TB SSD - Liquid Cooling (240mm) - Gaming Desktop PC

Model

Brand

ABS Computer Technologies

Series

Mage H

Model

ALA155

Quick Info

Type

Gaming & Entertainment

Form Factor

Mid Tower

Usage

Consumer

Processor

AMD Ryzen 9 3900X 3.80 GHz

Processor Main Features

64 bit 12-Core 24-Thread Processor

Cache Per Processor

64 MB L3 Cache

Memory

16 GB DDR4

Storage

1 TB SSD

Graphics

NVIDIA GeForce RTX 2080 Ti 11 GB

Power Supply

650W 80+ Gold

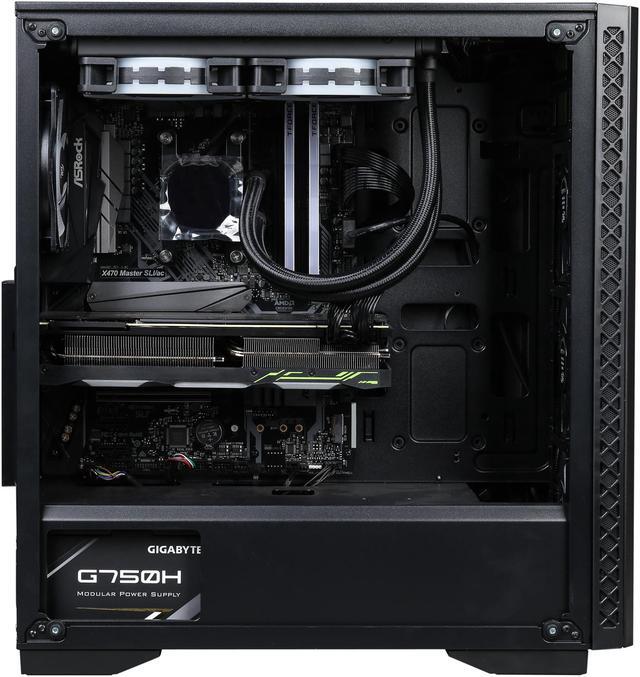

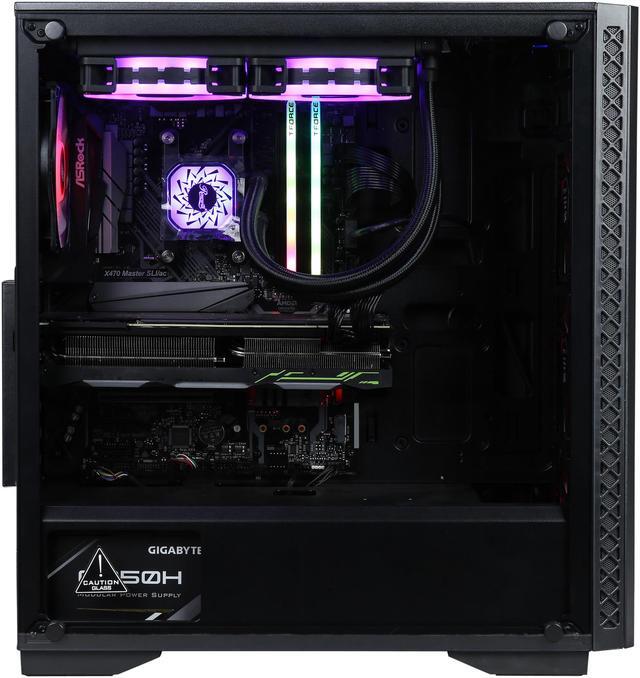

Case

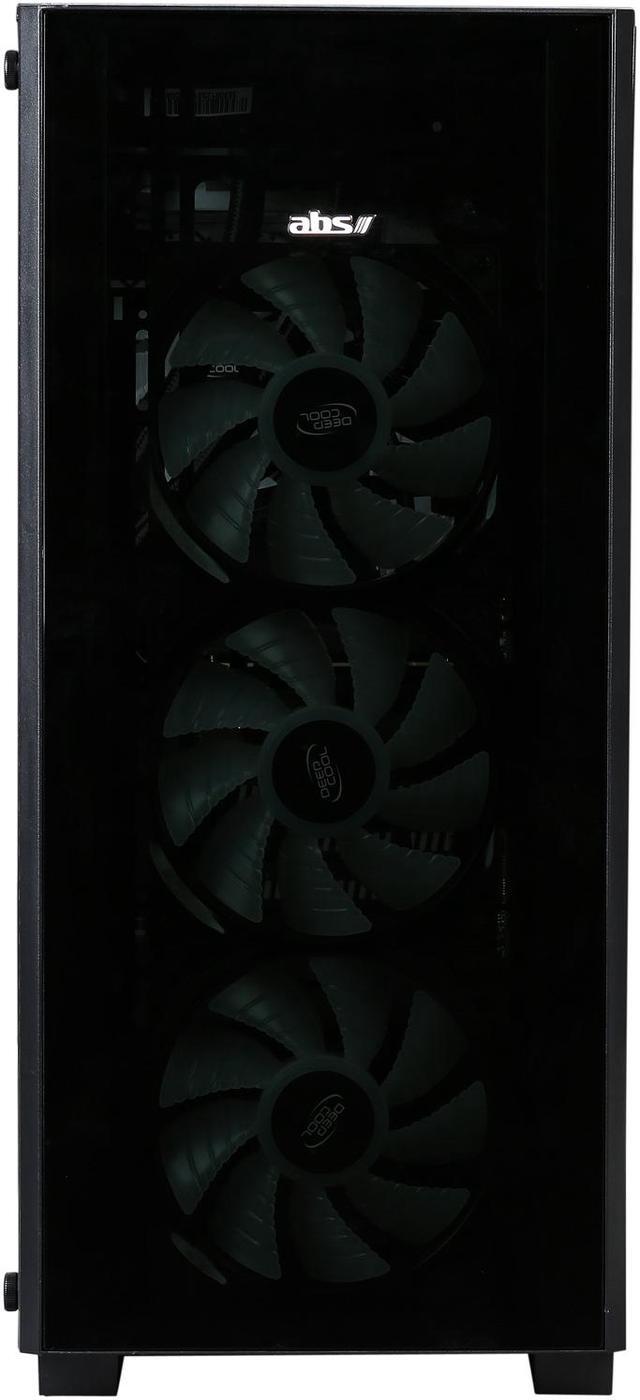

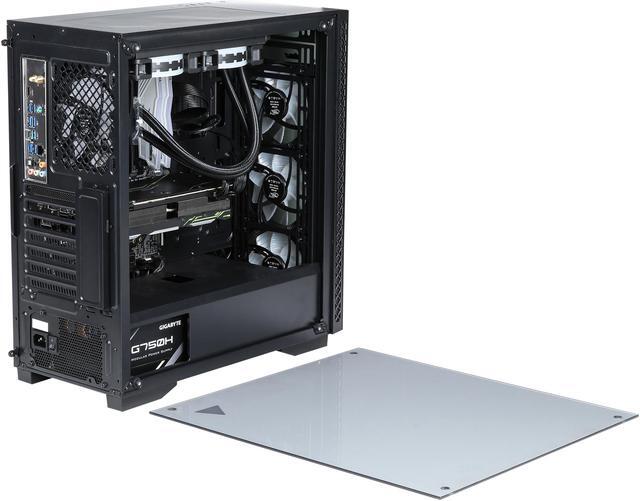

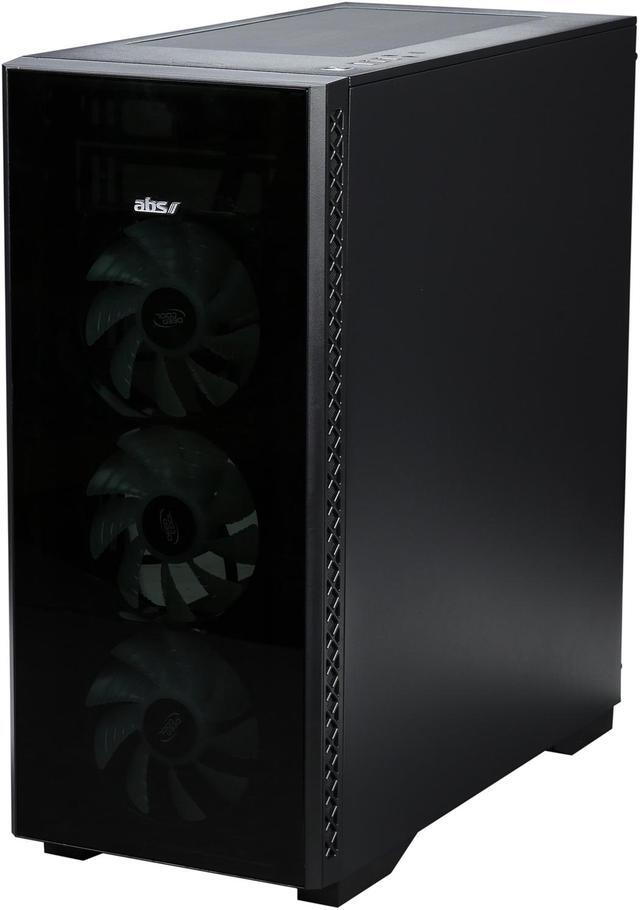

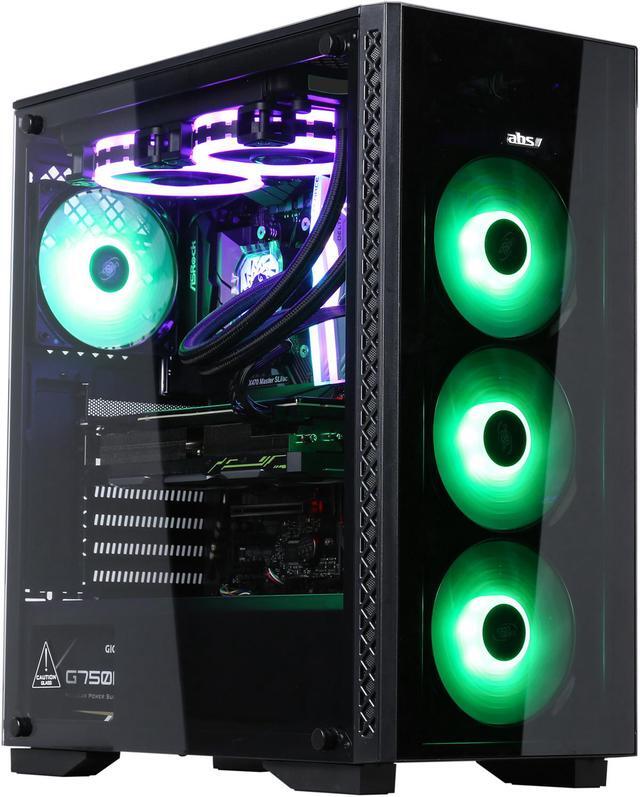

DEEPCOOL MATREXX 50 ADD-RGB 4F Mid-Tower Case 4x120mm ADD-RGB Fans
Full-size Tempered Glass Side And Front Panel
Motherboard SYNC Control

Operating System

Windows 10 Home 64-bit

Special Features

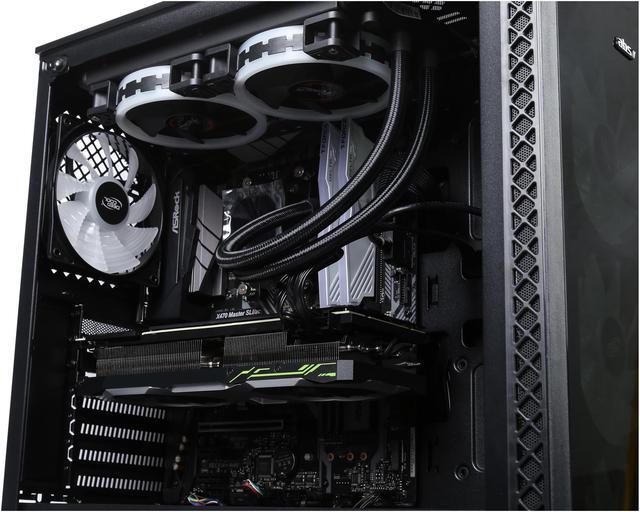

AIO 240mm CPU Liquid Cooler

Motherboard

Chipset

AMD X470

CPU

CPU Type

Ryzen 9 3rd Gen

CPU Speed

3900X (3.80 GHz)

L3 Cache Per CPU

64 MB

CPU Main Features

64 bit 12-Core 24-Thread Processor

Graphics

GPU/VGA Type

NVIDIA GeForce RTX 2080 Ti

Video Memory

11 GB GDDR6

Virtual Reality Ready

Yes

Memory

Memory Capacity

16 GB DDR4

Storage

SSD

1 TB

Communications

LAN Speed

10/100/1000Mbps

WLAN

Intel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps

Bluetooth

Bluetooth 4.2

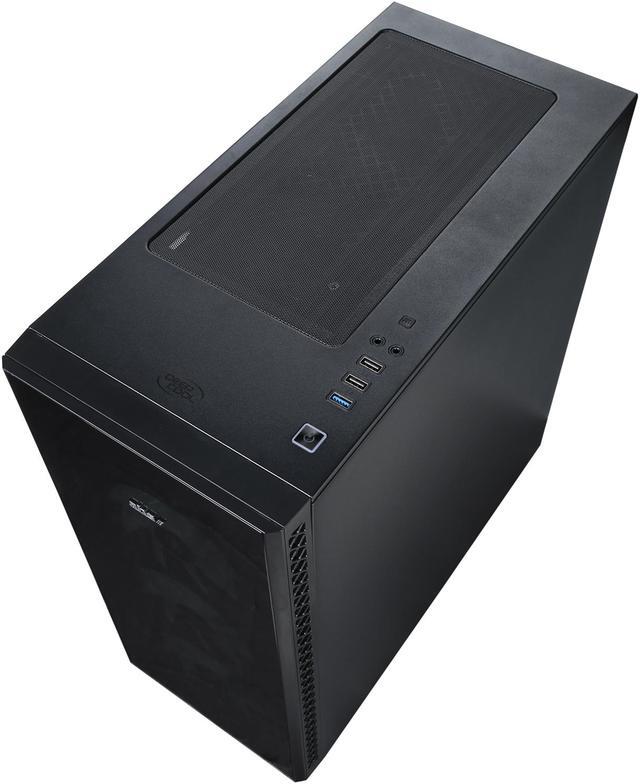

Front Panel Ports

Front USB

2 x USB 2.0
1 x USB 3.0

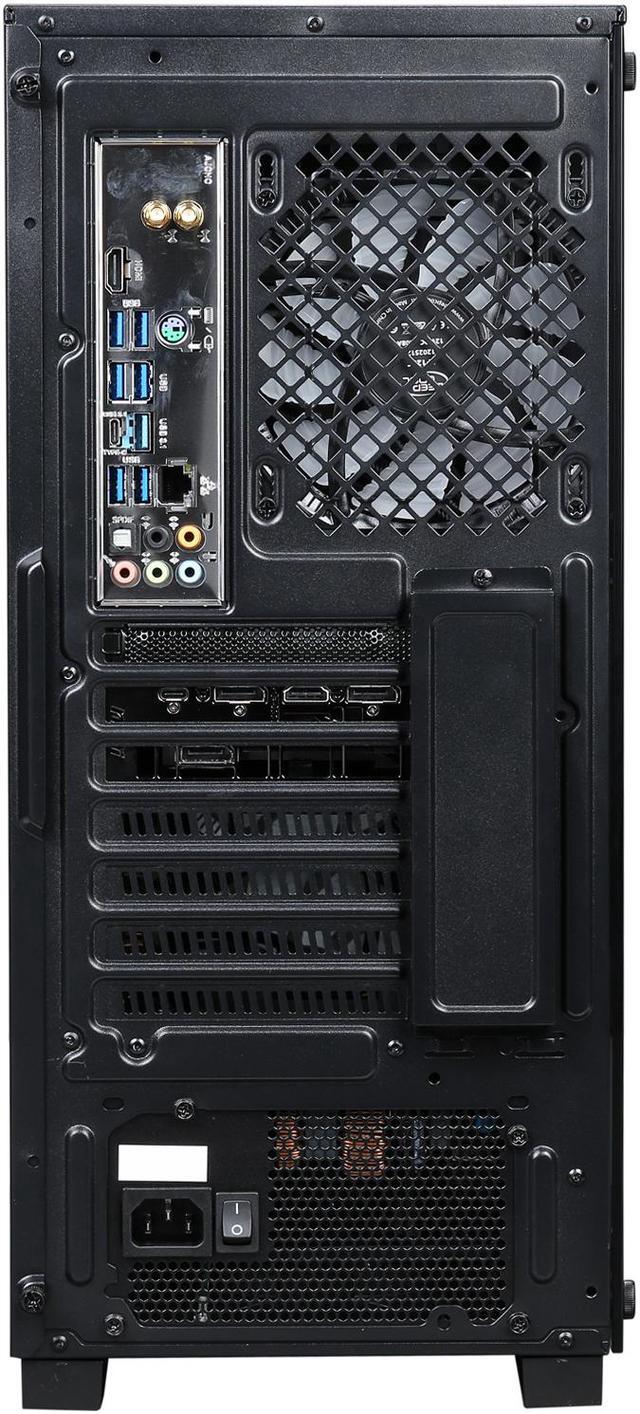

Back Panel Ports

PS/2

1 x PS/2 Mouse/Keyboard Port

Video Ports

1 x HDMI 2.0b
1 x DVI-D
3 x DisplayPort 1.4

Rear USB

1 x USB 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
6 x USB 3.1 Gen 1 Ports (Supports ESD Protection)

RJ45

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Rear Audio Ports

5 x HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

S/P DIF

1 port

Expansion

PCI Slots (Available/Total)

2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))
4 x PCI Express 2.0 x1 Slots
1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)

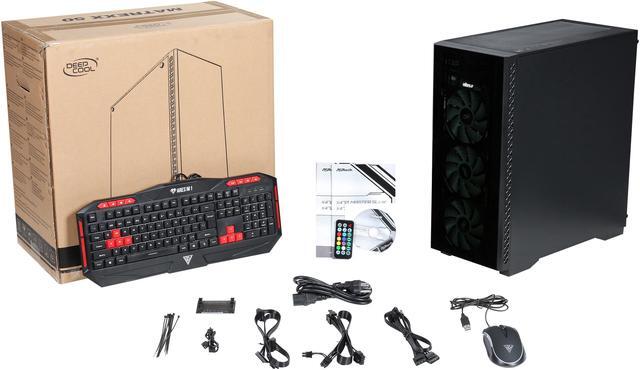

Mouse

Mouse Type

USB Mouse

Keyboard

Keyboard Type

USB Keyboard

Dimensions & Weight

Dimensions (H x W x D)

18.90" x 8.27" x 17.32"

Additional Information

Date First Available

September 27, 2019
