What is the maximum memory supported by the ABS Start Kit?

The ABS Start Kit supports a maximum memory of 256GB.

What type of processors does the ABS Start Kit support?

The ABS Start Kit supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.

$499^.99

Free 30-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

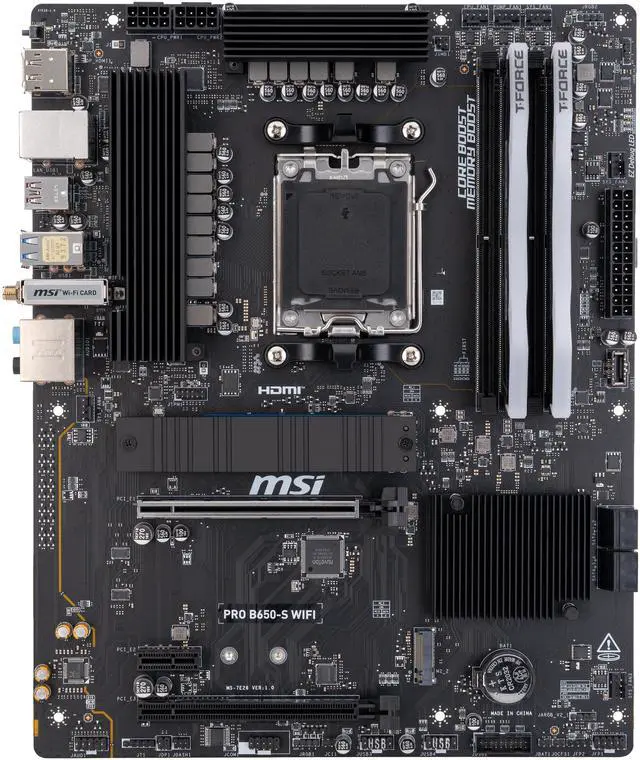

Main image of ABS Start Kit AM5 ATX Motherboard / Memory / Storage Combo

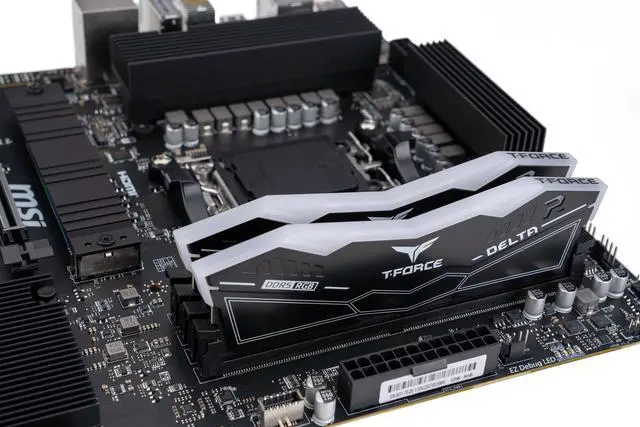

Alt view image 2 of 4 - ABS Start Kit AM5 ATX Motherboard / Memory / Storage Combo

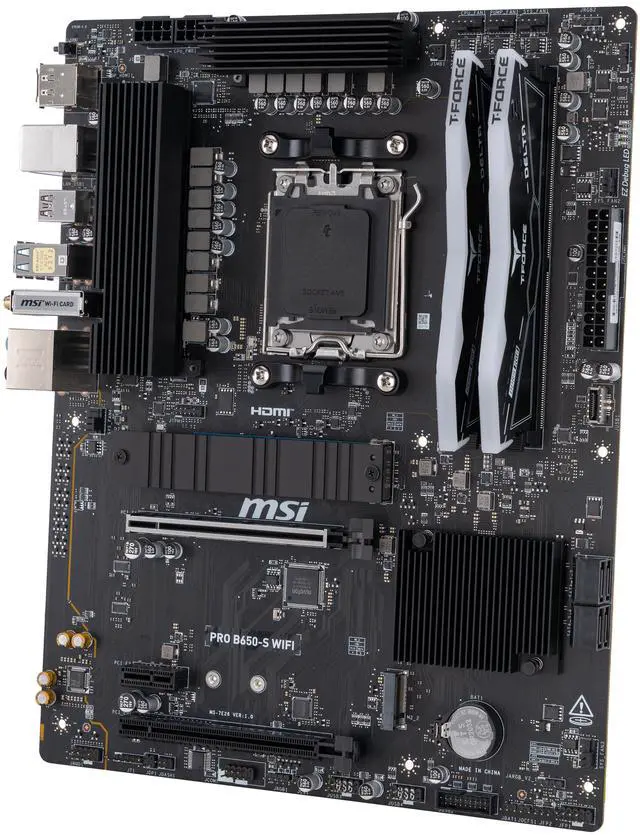

Alt view image 3 of 4 - ABS Start Kit AM5 ATX Motherboard / Memory / Storage Combo

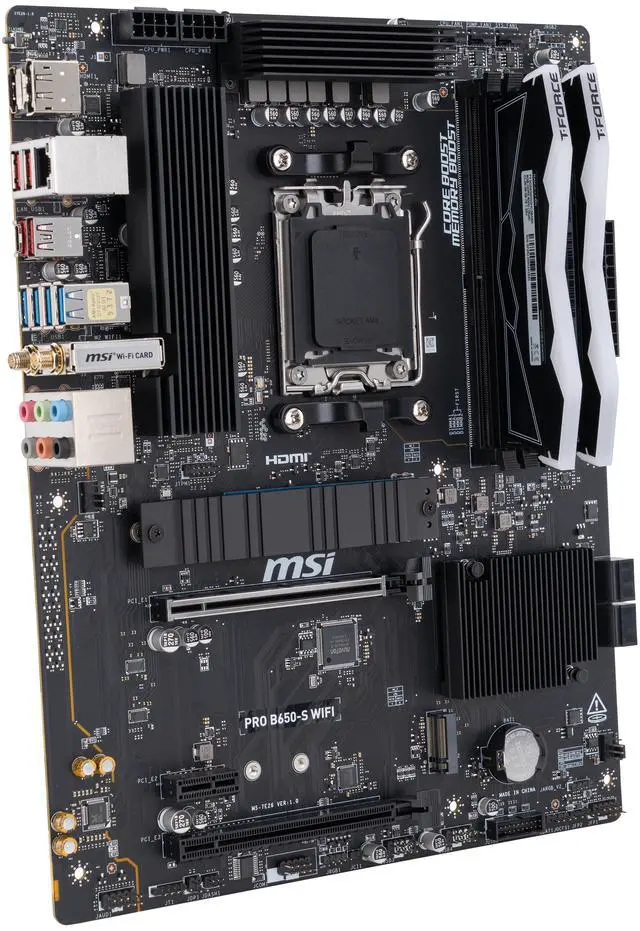

Alt view image 4 of 4 - ABS Start Kit AM5 ATX Motherboard / Memory / Storage Combo

Shop All ABS Products

ABS Start Kit AM5 ATX Motherboard / Memory / Storage Combo

Be the first to review this product...

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ABS
Model	Start Kit
Combo Type	Motherboard / Memory / Storage Combo

Bundle
Motherboard	MSI PRO B650-S WIFI
Memory	Team Group 16GB (2 x 8GB) DDR5 6000
Storage	Team Group MP44L M.2 2280 500GB SSD

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200
Maximum Memory Supported	256GB
Memory Performance Profile	AMD EXPO
Channel Supported	Dual Channel
Memory Feature	Supports non-ECC, un-buffered memory

Expansion Slots
PCI Express x16	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x4	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2	2 x M.2 (Support PCIe 4.0 x4)

Storage Devices
SATA	4 x SATA 6.0Gb/s

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Speed	2.5Gbps
Max LAN Speed	2.5Gbps

Rear Panel Ports
Back I/O Ports	1 x DisplayPort 1 x 2.5G LAN 3 x USB 3.2 Gen 2 10Gbps (Type-A) 4 x USB 3.2 Gen 1 5Gbps (Type-A) 2 x Wi-Fi / Bluetooth 6 x Audio connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 3.2 Gen 2x2 20Gbps (Type-C)

Internal I/O Connectors
Other Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
