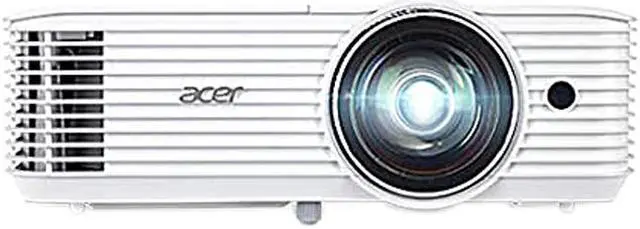

ACER AMERICA CORP. MR.JQH11.00A Acer Short Throw Projector

  • 1280 x 800
  • > 3500 lumens
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

green Acer logo on a black background

Acer S1386WHN Projector

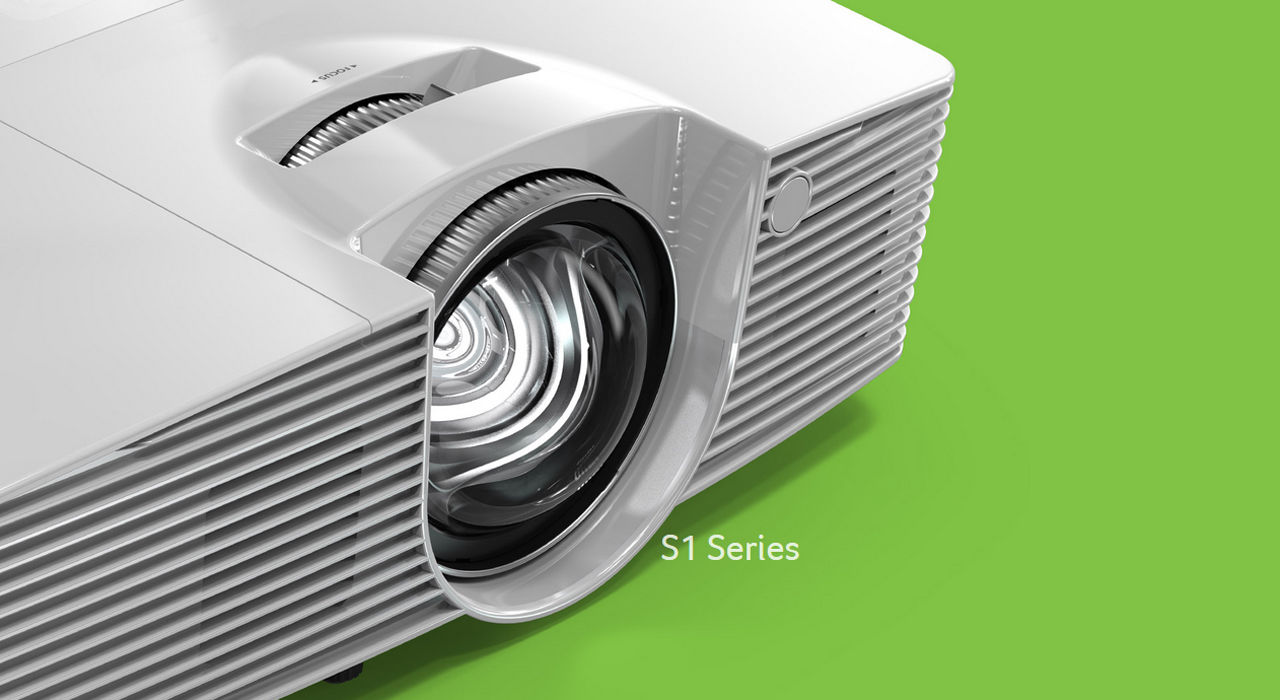

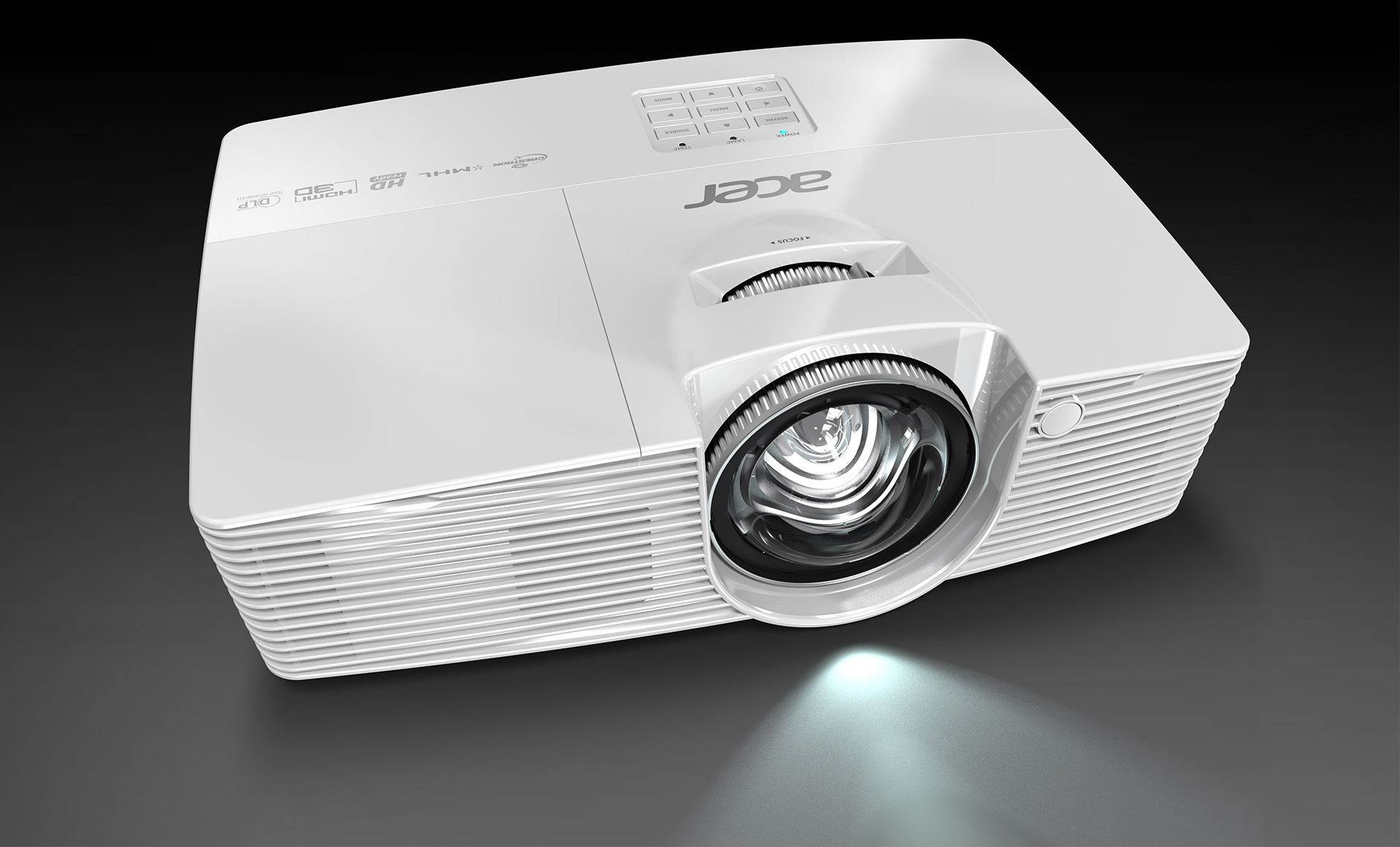

Acer S1 series projector angled down to the left on a green background

Actual Quality That Lasts

The Acer S1 Series projector is durable and designed to last, all while providing quality images from a short distance.

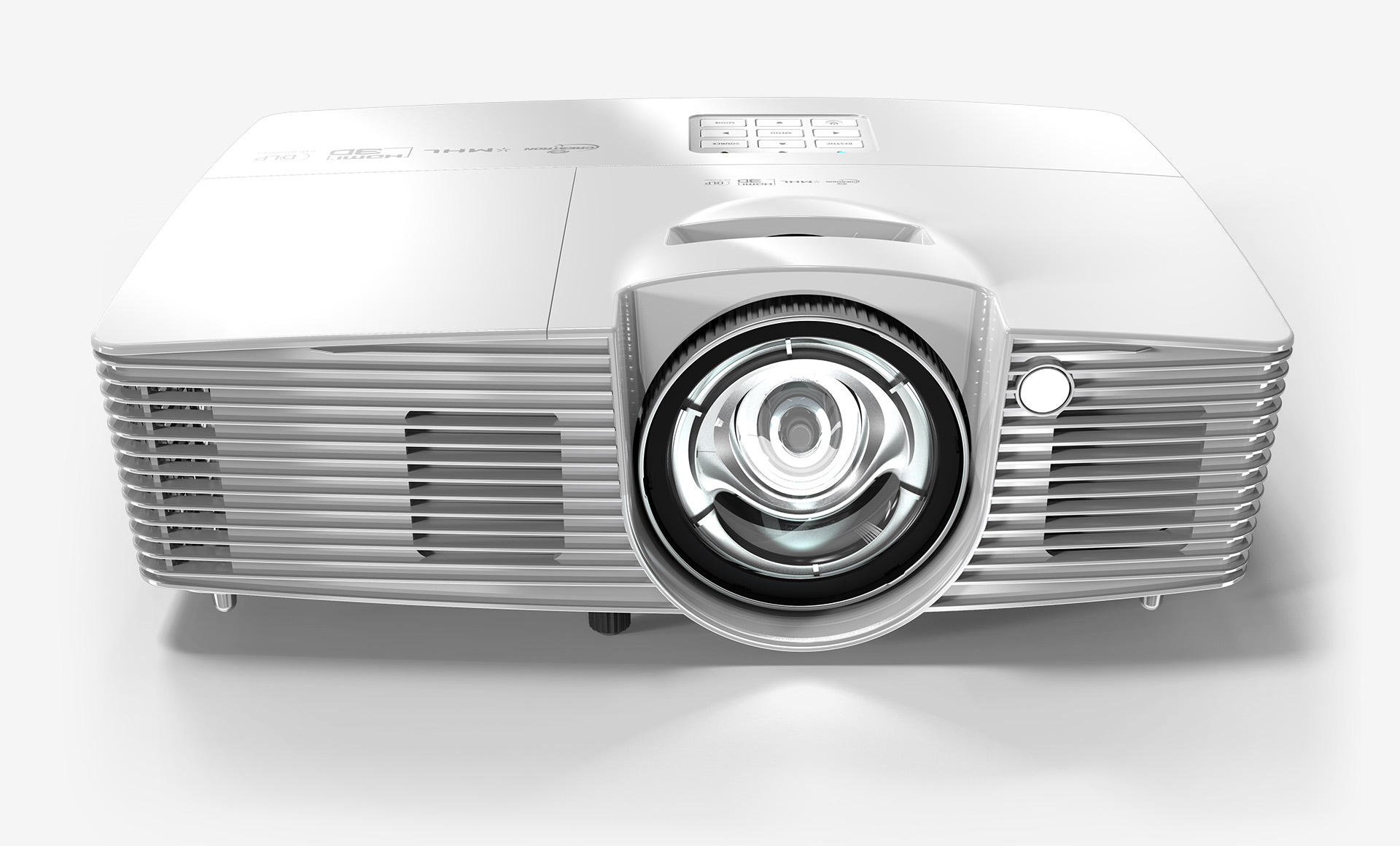

Acer S1 projector facing forward, angled down

Give Life to Presentations

Project in WXGA clarity and give your presentation a clearer, sharper edge with colors that mimic life.

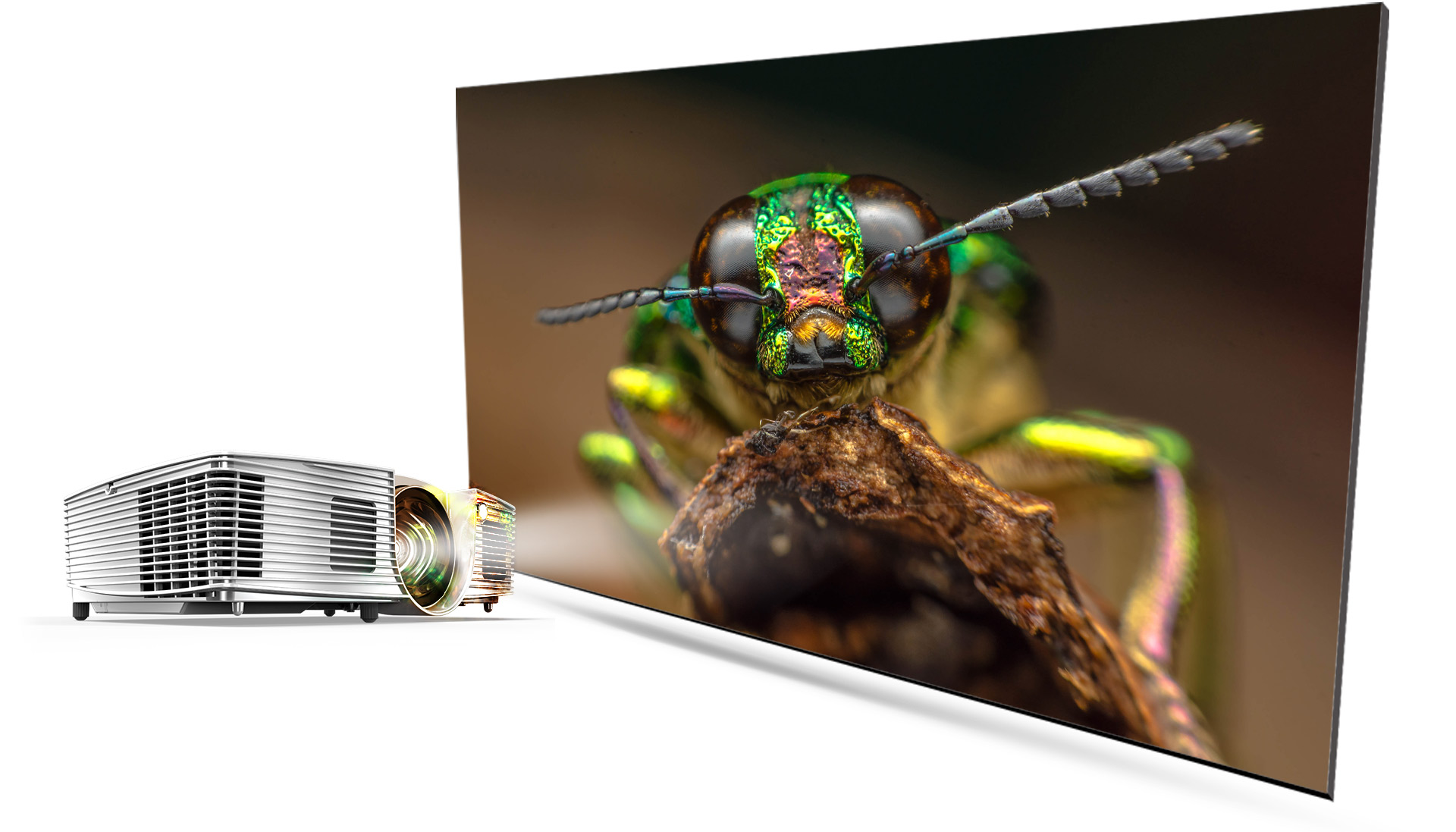

Acer S1 projector angled to the right casting a high-definition, closeup image of a bug looking forward

Just a Short-Throw Away

Even in a small space, you can project images up to 150" in vivid clarity for clearer, more accurate presentations.

Acer S1 projector at the corner of the image, angled up to the right showing a closeup, high-definition image of a bug on a blade of grass

Connect Wirelessly

Break free from the clutter of wires with the S1 Series' easy wireless-projection options via the Acer Wireless Adapter.

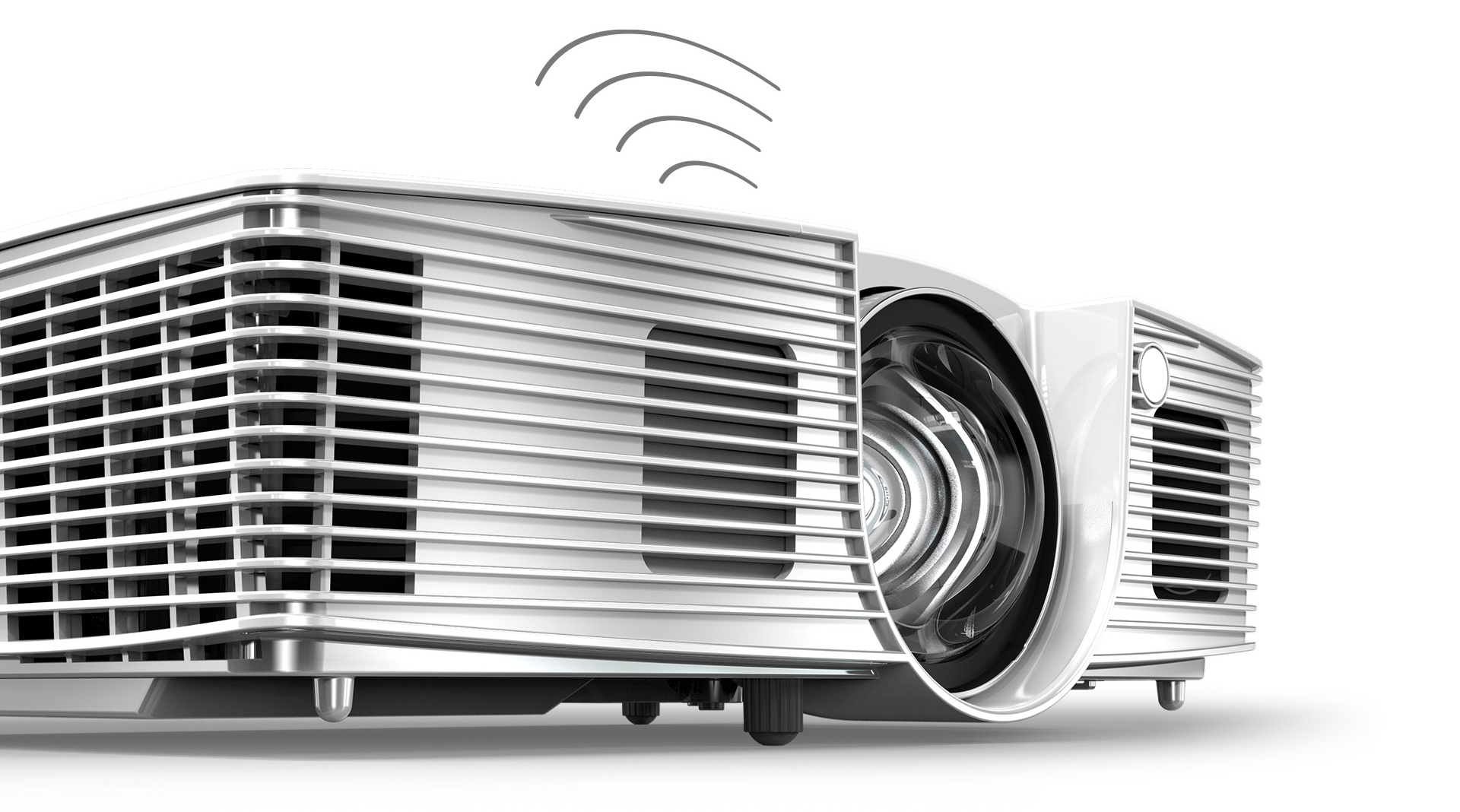

Acer S1 projector angled to the right with wireless signal graphics above it Closeup of an insect's head

Impactful Sound

What you hear is just as good as what you see with the 10-watt integrated audio.

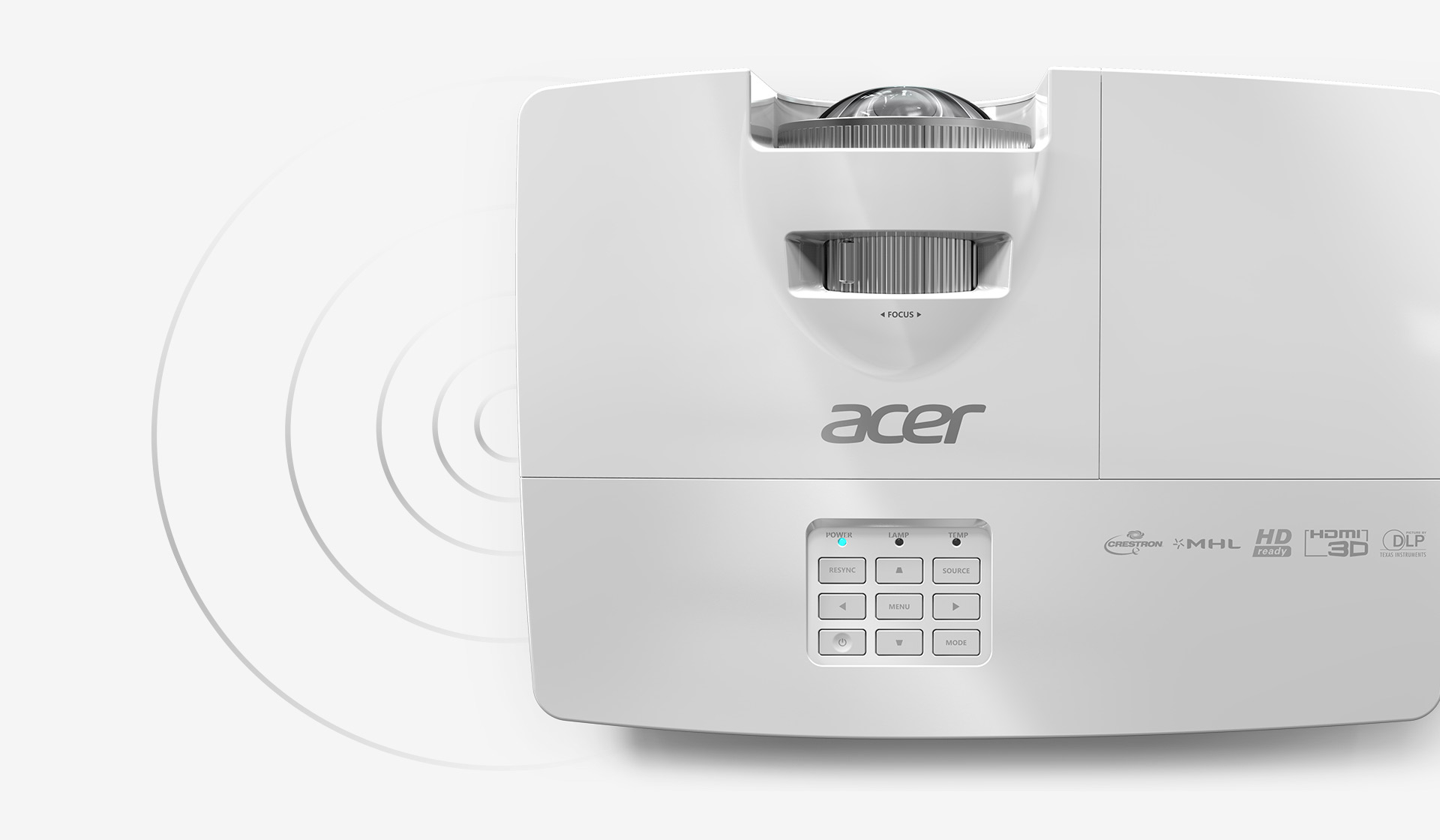

overhead view of the top of the Acer S1 projector with wireless signal graphics from the left of the projector

Shielded from Dust

These projectors come with four built-in features that are designed to keep dust out and protect your device from potential wear and decay.

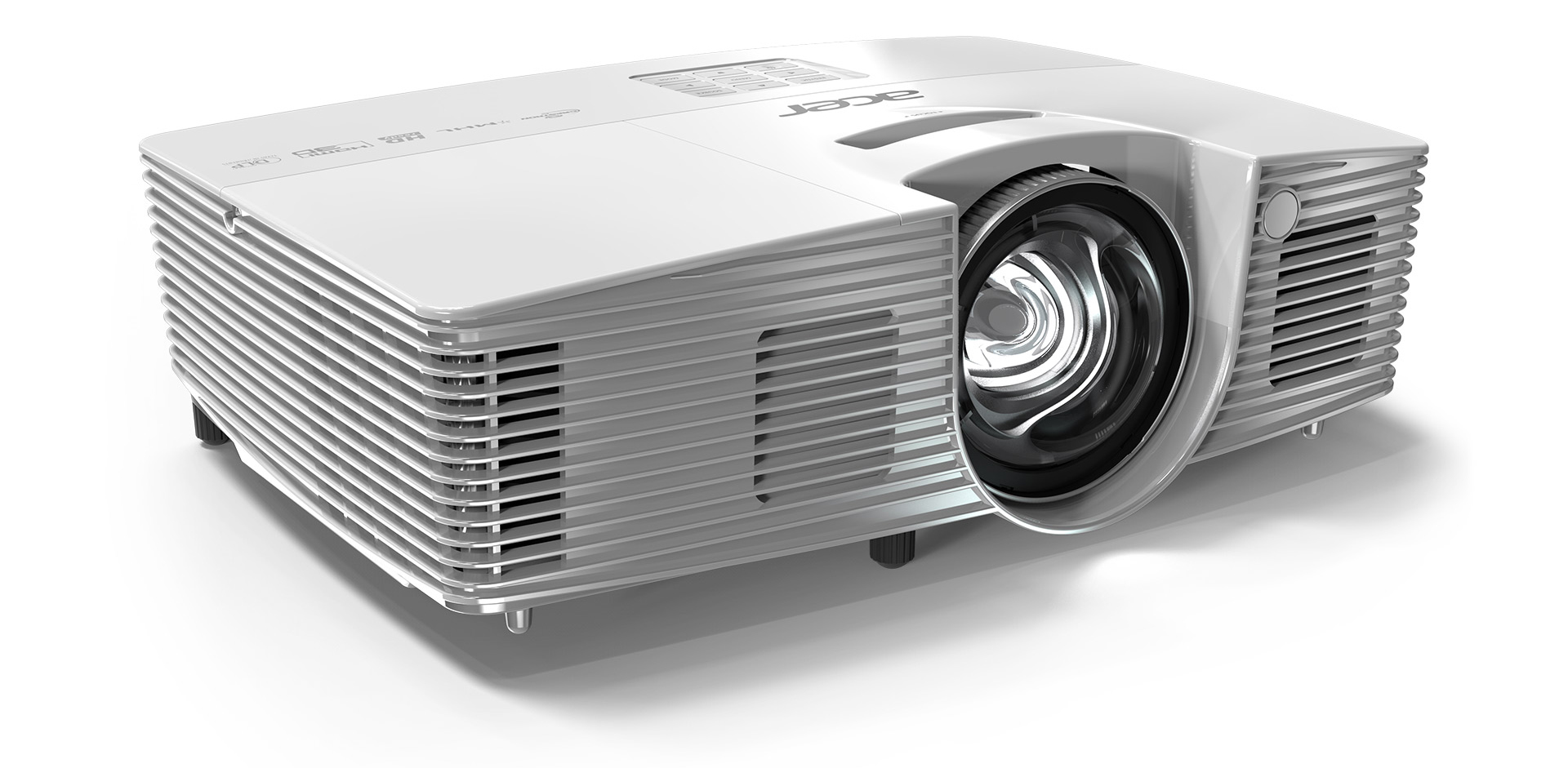

Acer S1 projector angled down to the right

A Screen Worth Staring At

Mirror what we see in life in a 1280x800 WXGA resolution with a projector that gives you true-to-life color reproduction.

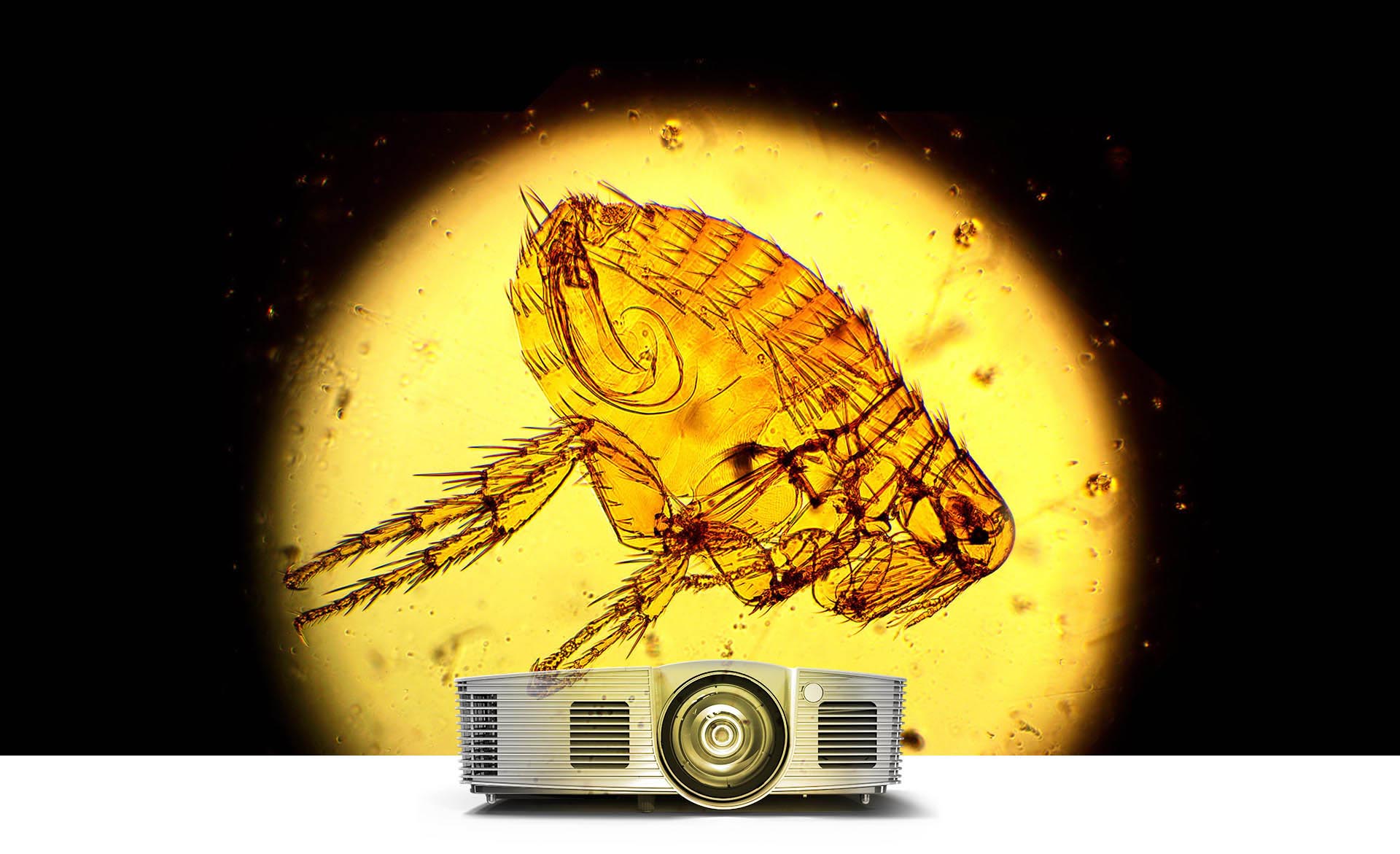

Acer S1 projector facing forward with a microscope slide of an insect above it

Give Color a Boost

Acer ColorBoost3D combines three color technologies to reproduce images that are lifelike, natural and brilliantly bright.

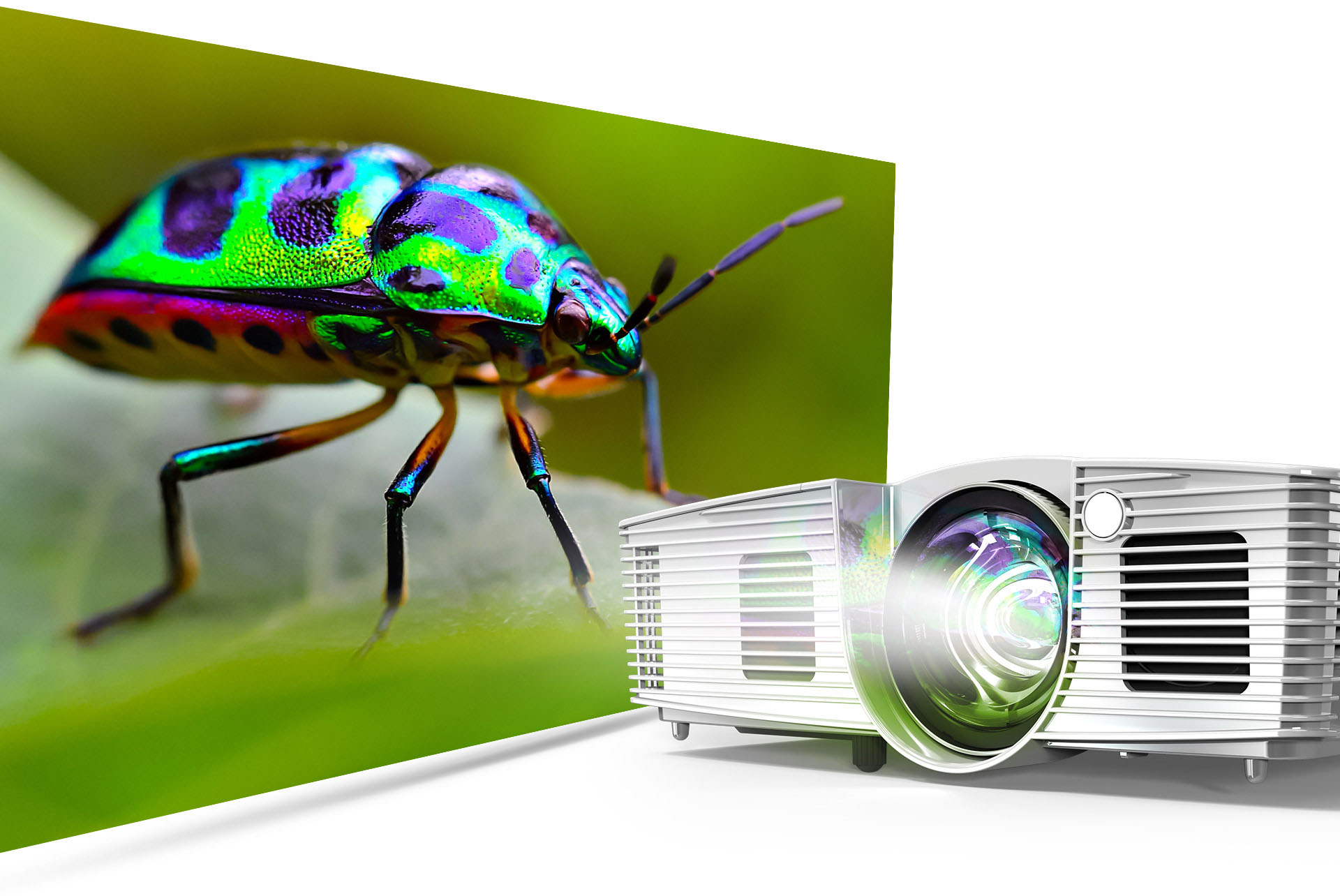

Acer S1 projector angled to the left showing a shiny purple and green insect on a leaf
aspect ratio display icon

4:3 (Native) & 16:9 (Compatible)

Aspect Ratio

Throw ratio projection icon

77" @ 38.19"

Throw Ratio

split contrast icon

20,000:1

Contrast Ratio

Crestron Network System

Crestron control systems allow you to control, maintain and monitor your device anywhere with an Internet connection.

Acer S1 projector angled down to the left A man giving a 3D application presentation to a room full of students

Friend to the Environment

Acer EcoProjection reduces power consumption from 5W to 0.5W and can extend your lamp life up to 8,000 hours.

Acer S1 projector angled down slightly to the right
Technical Information
  • Projection Method: Front
  • 3D Type: 3D Ready
  • Platform Supported: PC
  • Projection System: DLP

Projection Lens
  • Maximum Focal Length: 7.51 mm
  • Maximum Lens Aperture: F/2.8

Lamp
  • Number of Lamps: 1
  • Lamp Type: OSRAM
  • Lamp Power: 220 W
  • Normal Mode Lamp Life: 5000 Hour
  • Economy Mode Lamp Life: 6000 Hour
  • ExtremeEco Mode Lamp Life: 10000 Hour

  • Low Mode Brightness: Up to 2880 lm
  • Standard Mode Brightness: Up to 3600 lm
  • Native Resolution: 1280 x 800
  • Graphic Mode: WXGA
  • Maximum Resolution: 1920 x 1200
  • Native Aspect Ratio: 16:10
  • Compatible Aspect Ratio: 4:3
  • Compatible Aspect Ratio: 16:9
  • Throw Ratio: 0.52 (87"@38.58")
  • Contrast Ratio: 20,000:1
  • Vertical Keystone Correction: -15°/+15°
  • Horizontal Keystone Correction: -15°/+15°

Audio
  • Speaker Output Power: 16 W

Network & Communication
  • Ethernet Technology: Ethernet

Interfaces/Ports
  • HDMI: Yes
  • Total Number of HDMI Ports: 2
  • Number of USB Ports: 2
  • USB: Yes
  • Composite Video: Yes
  • Network (RJ-45): Yes
  • VGA In: Yes
  • Number of VGA Inputs: 2
  • VGA Out: Yes
  • Number of VGA Outputs: 1
  • Number Of Audio Inputs: 1
  • Audio Line In: Yes
  • Number Of Audio Outputs: 1
  • Audio Line Out: Yes

Physical Characteristics
  • Height: 4.5"
  • Width: 12.3"
  • Depth: 10"
  • Weight (Approximate): 6.83 lb

Miscellaneous
  • Package Contents:
    • S1386WHN DLP Projector
    • AC Power Cord
    • Battery for Remote Control
    • Quick Start Guide
    • Remote Control
    • Security Card
    • User's Guide (CD-ROM)
    • VGA Cable
  • Optional Accessories:
    • 3D Glasses (MC.JFZ11.00E)
    • Lamp (MC.JQH11.001)
    • WirelessProjection-Kit (UWA3) (MC.JG811.00F)
    • WirelessCAST (MWA3) (MC.JKY11.008)
    • Ceiling Mount (MC.JLC11.003)
    • WirelessHD-Kit (MC.JKY11.009)

Warranty
  • Limited Warranty: 1 Year
  • Parts Warranty/Labor: 3 Month - Lamp
