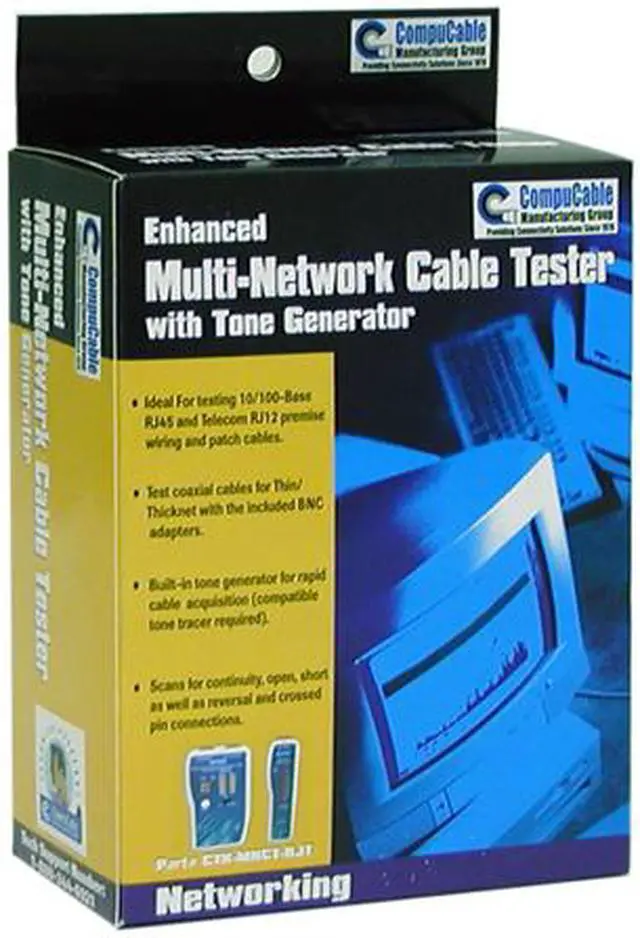

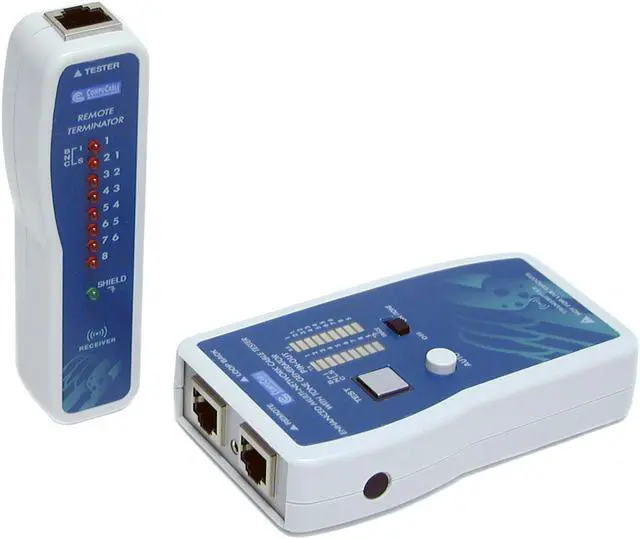

addlogix CTK-MNCT-RJT Enhanced Multi-Network Cable Tester with Tone Generator
- All-in-one tester/tone generator
- Compatible with most tone generators on the market
- Pin-to-pin LED indication
- Local "Loop Back" test
- Remote terminator for testing pre-installed cables
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Addlogix CTK-MNCT-RJT
| Brand | addlogix |
|---|---|
| Model | CTK-MNCT-RJT |
| Specifications | Power: Main Unit – 9V Alkaline Battery Remote Unit – None Required Battery Life – approx. 60 hr. (continuous operation) Size: Main Unit – 4.57” x 2.67” x 1.13” (116mm x 68mm x 28mm) Remote Unit – 4.65” x 1.28” x 1.11” (118mm x 32.5mm x 28mm) Case Size: 6in x 4.5in x 1.75 Weight: 0.4lbs (180g) without battery 0.80lbs (360g) shipping Operating Temp.: 0 to 45 degrees Centigrade Enclosure: ABS plastic Tone Freq: 800Hz Built-In Interface: RJ48 Jack – accepts both RJ45 & RJ12 plugs Ground jack – for grounding the tester during trace operation Accessories: 2 x RJ45-BNC adapter; 1 x grounding cord; 1 x RJ45 patch cable Distance: Up to 2000ft (610m) |
|---|
| Features | All-in-one tester/tone generator Compatible with most tone generators on the market Pin-to-pin LED indication Local "Loop Back" test Remote terminator for testing pre-installed cables Auto-scan or manual step testing Accessories to test BNC and RJ12 cable networks |
|---|

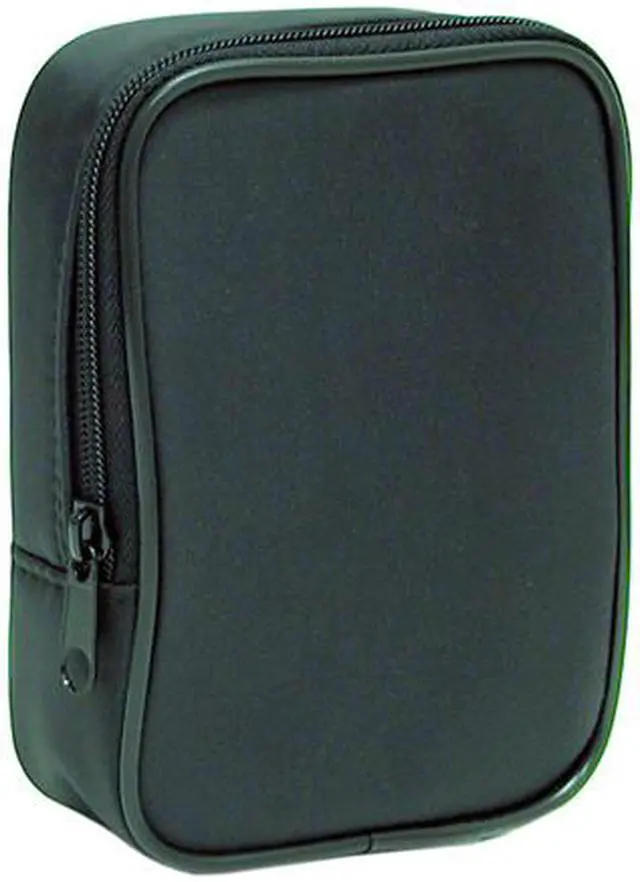

| Package Contents | Bag User Manual Cable Adapter |
|---|
| First Listed on Newegg | March 07, 2003 |
|---|
