Adesso NuScan 1000U Barcode Scanner
- USB / Black
- Short Range CCD
- 1 Year Warranty
Overview
Specs
Reviews (4)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

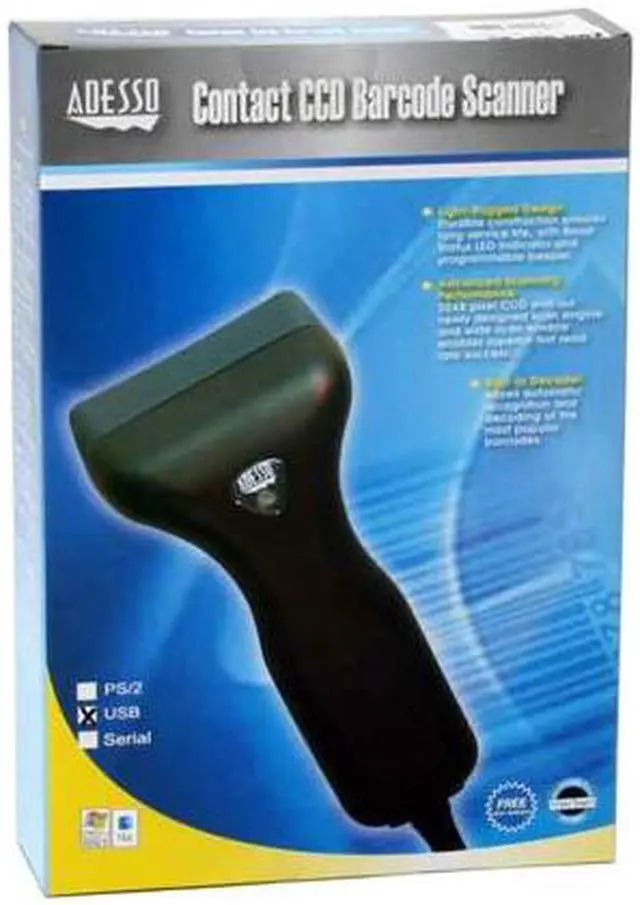

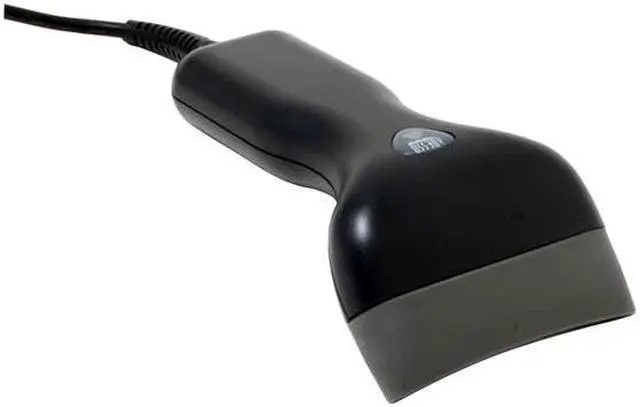

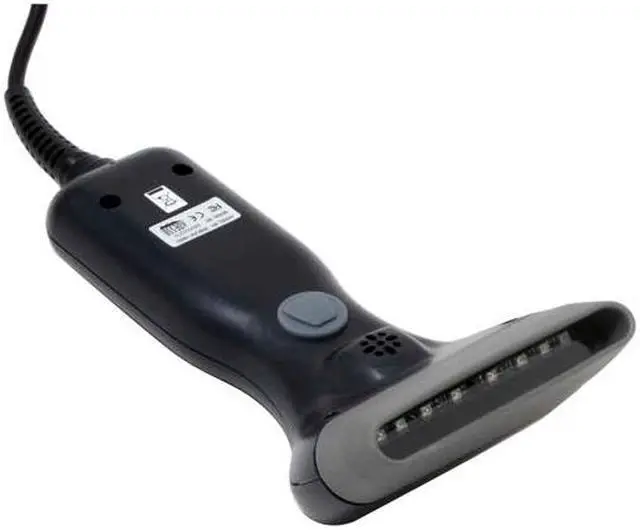

Adesso Handheld USB Contact CCD Barcode Scanner
This Contact CCD Barcode Scanner is very reliable and can be used for many applications. The NuScan 1000 Series scanners are the most popular bar code scanning devices in our product line. Manufactured for durability, and our exclusive ergonomic design creates comfort and ease of use. For fast connection, the NuScan 1000P simply plugs between your keyboard and PC, or if you prefer USB, the NuScan 1000U is the scanner for you. A serial version is also available. All three scanners send data to your active application as if you typed it from your keyboard. Designed for retail, point of sale, or any repetitive application where time and accuracy are important factors in making your business succeed. The NuScan 1000 bar code scanners are simply the best in their class.
Features
- Light-Rugged Ergonomic Design
Durable construction, manufactured from high quality ABS plastic, ensures long service life, with Read Status LED indicator and programmable beeper - Advanced Scanning Performance
2048 Pixel CCD with with a 3.15-inch wide & 0.78-inch deep scan field for quick, accurate reads; and our newly designed scan engine and scan window ensure superior first-read success - Built-In Decoder
Allows automatic recognition and decoding of the most popular barcodes - One-Touch Scanning Ease of Use over pen Scanning
Common Uses:
- Point of Sale
- Office Use
- Industrial Use
- Retail
- Libraries
- Medical Facilities
Also Great For:
- Legal Offices
- Government Offices
- Marketing Use
Supports Barcode Type:
- UPC Version A & E
- EAN-8, EAN-13
- JAN-8, JAN-13
- ISBN, ISSN
- Japanese Bookland
- Code 39 (with full ASCII)
- Codabar (NM7)
- Code 128/EAN 128
- Code 93
- Interleaved 2 of 5 (ITF)
- Addendum 2 of 5
- IATA Code
- MSI/Plessy
- China Postal Code
- Code 32 (Italian Pharmacode)
- Industrial 2 of 5
Specification
| Operational | |
|---|---|
| Light Source | 660nm Visible LED |
| Optical System | 2048 Pixel CCD |
| Depth of Scan Field | 0.78 Inches |
| Width of Scan Field | 3.5 Inches |
| Scan Speed | 100 Scans per Second |
| Minimum Bar Width | 5 mil @ PCS 90% |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicators (LED) | Red LED |
| Beeper Operation | Programmable Tone and Beep Time |
| System Interfaces | PS/2 or USB 1.1 |
| Physical | |
| Height | 6.85in. |
| Depth | 2.26in. |
| Width | 3.5in. |
| Weight | 6oz (170g) |
| Cable | Standard 6-Foot Straight |
| Power | |
| Input Voltage | 5V DC ± 10% |
| Power | 0.6 Watts |
| Operating Current | 120mA @ 5.0V |
| Environmental | |
| Operating Temperature | 32°F to 122°F (0°C - 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C - 70°C) |
| Humidity | 5% - 95% (non-condensing) |
| Light Levels | Max. 1500 LUX (Fluorescence) |
| Shock | Designed to withstand 1m drops |
| Item | Connection | UPC Code | Package Dimensions | Package Weight | Quantity per Carton |
|---|---|---|---|---|---|
| NuScan 1000U | USB | 783750002578 | 8.5" x 3" x 12.25" | 1.1lbs | 10 |
