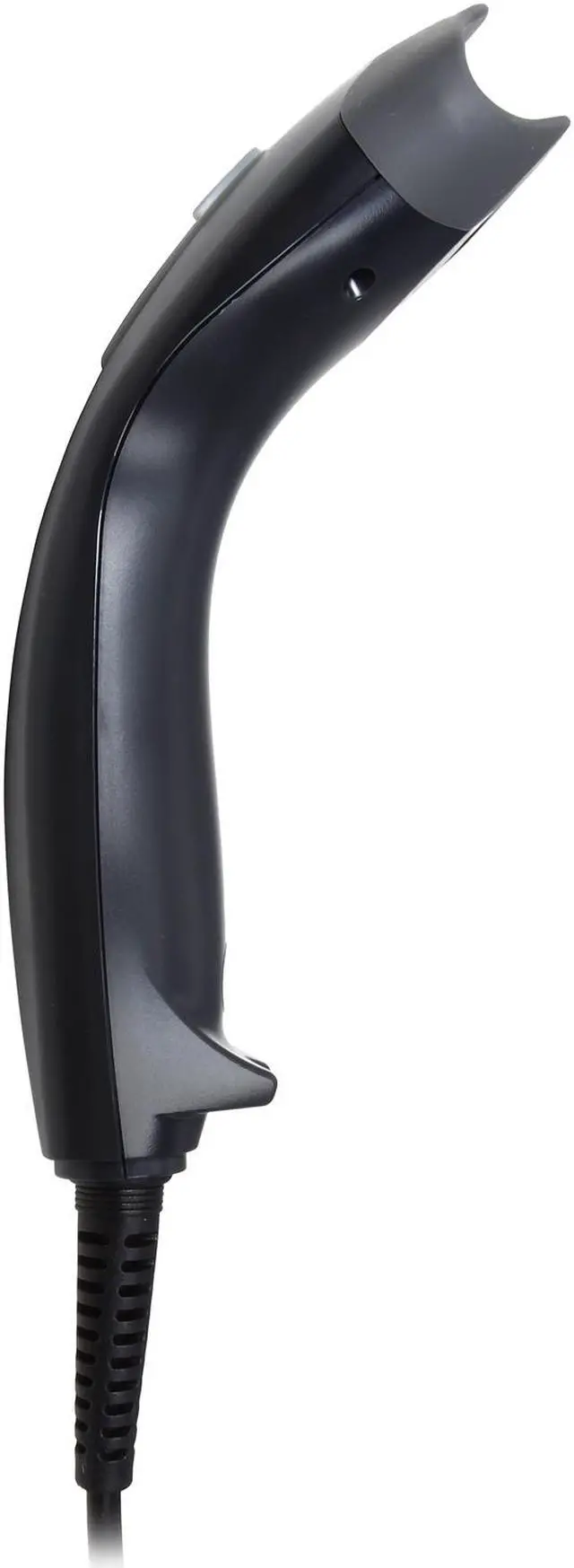

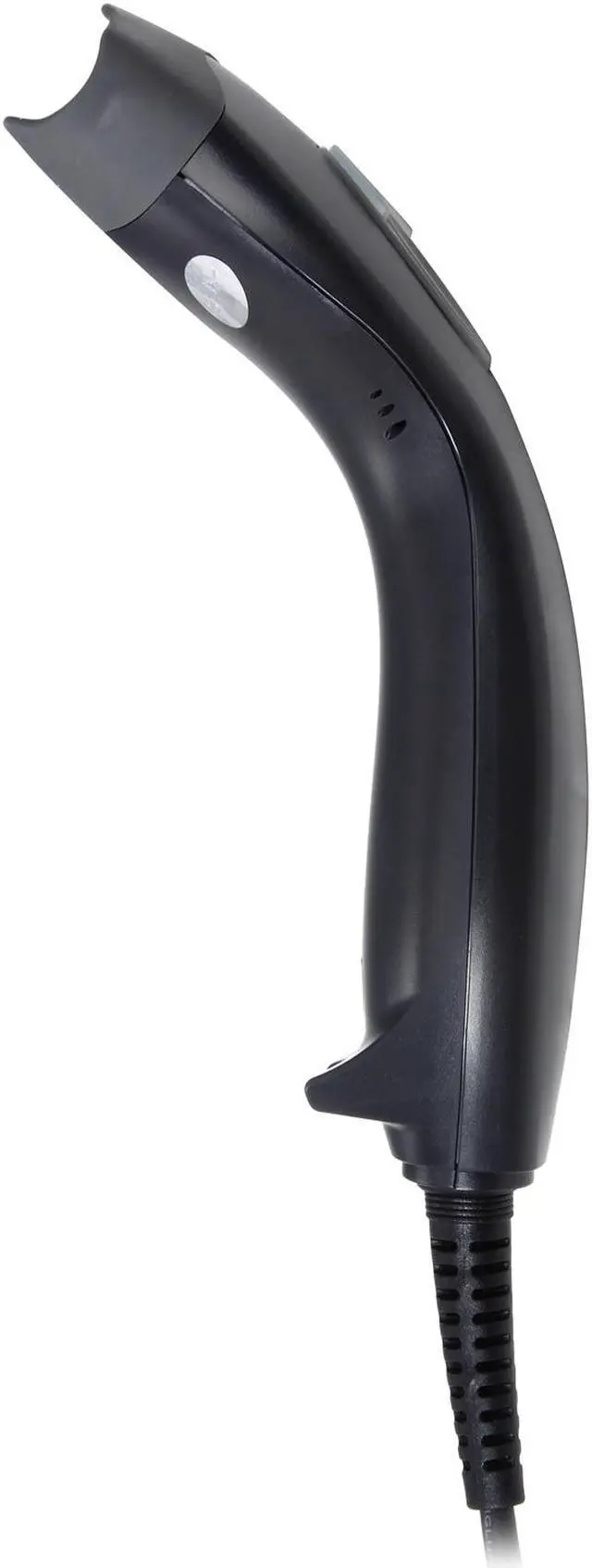

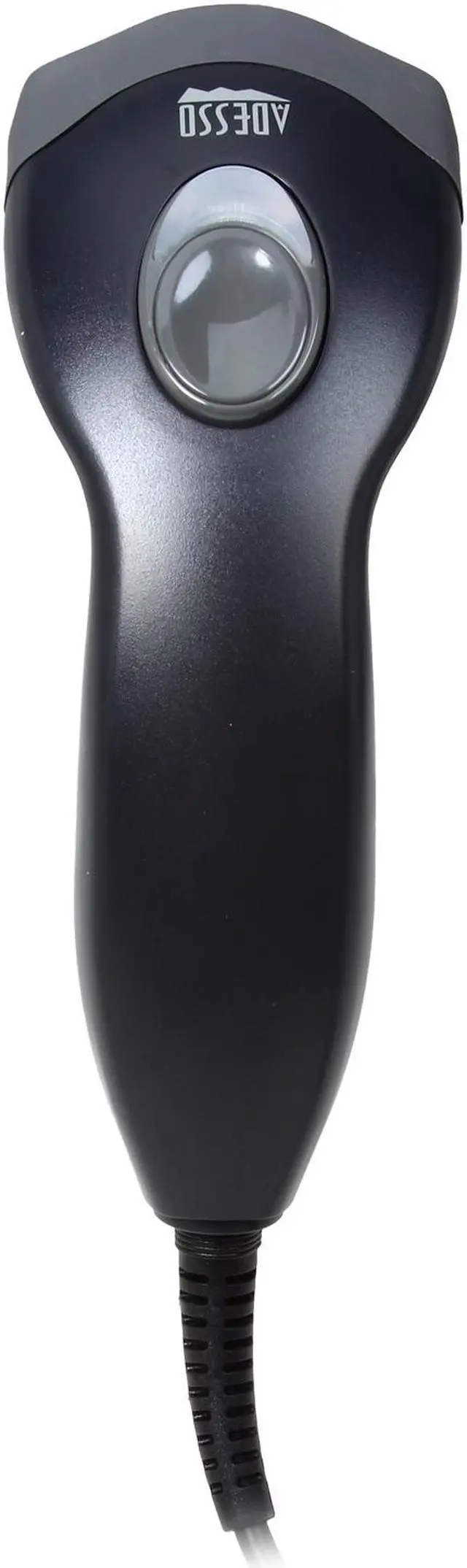

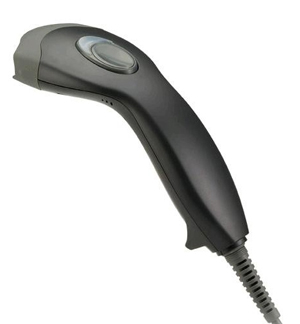

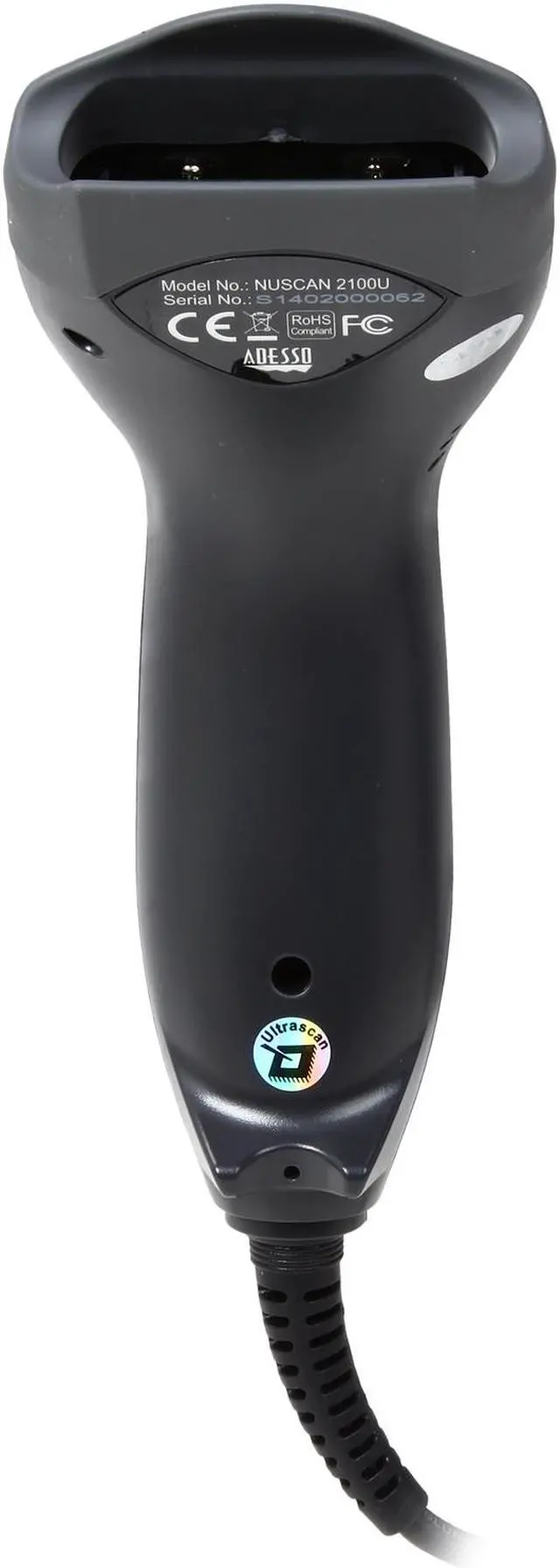

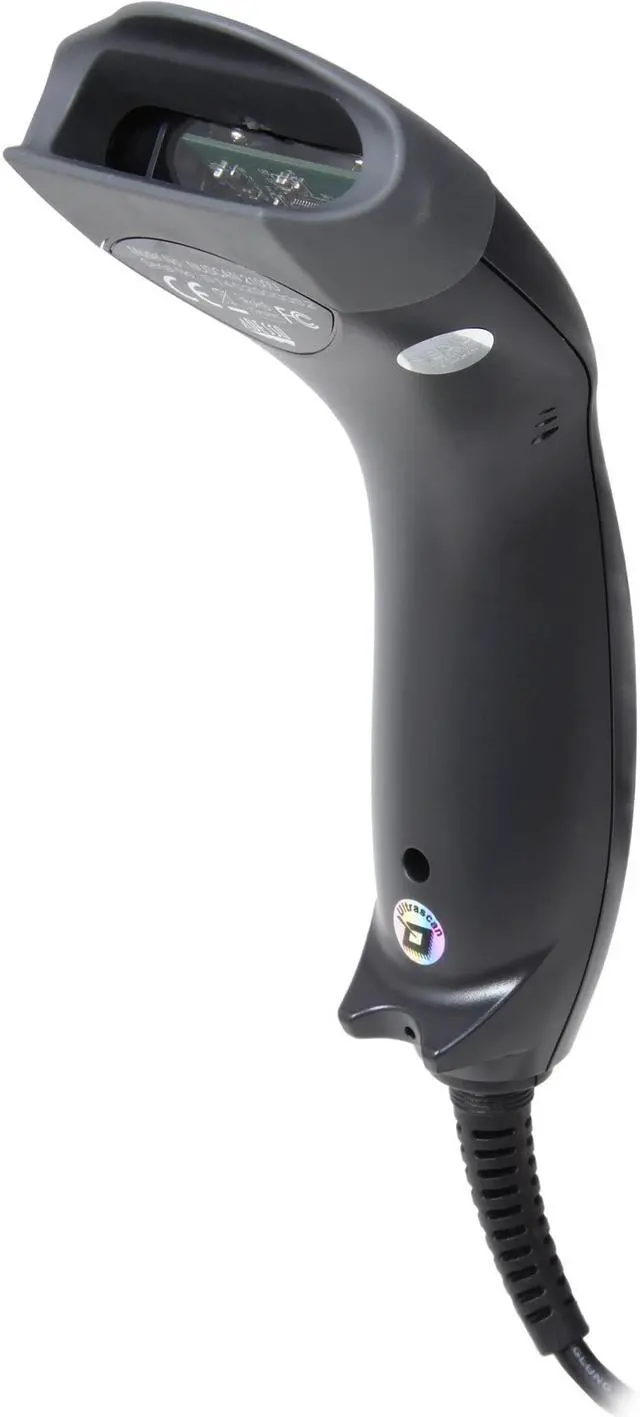

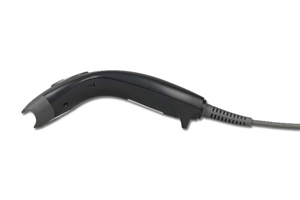

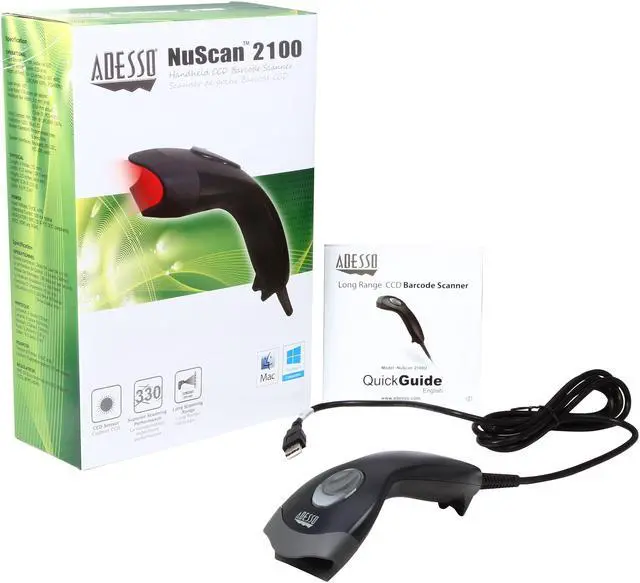

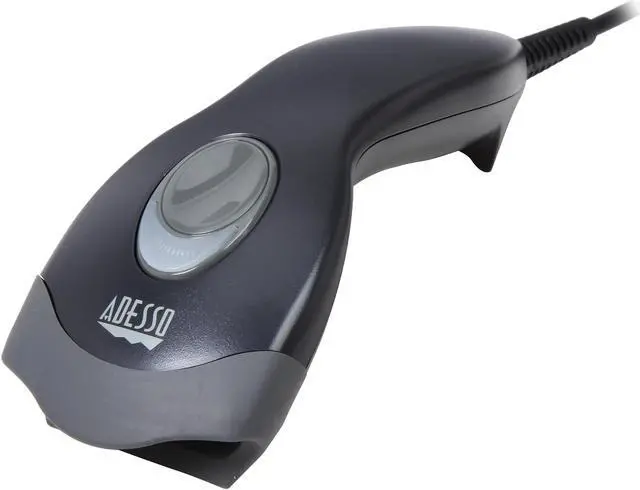

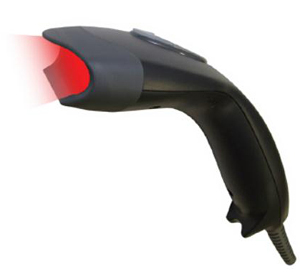

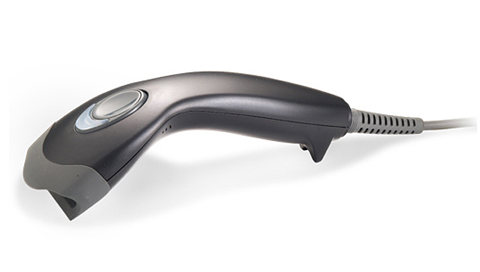

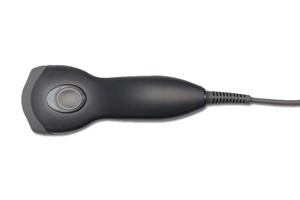

Adesso NuScan 2100U Slim Long Range Handheld CCD Barcode Scanner

Adesso NuScan 2100U Handheld Linear Image Barcode Scanner

Model	Interface	Application Platform
NuScan 2100U	USB	Windows® 8 / 7 / Vista / XP / 2000 & Mac® OS X

The NuScan 2100 handheld barcode scanner is a mid-range CCD scanner that is designed to offer an unsurpassed combination of flexibility and power. It has an ergonomic ultra-slim form factor that reduces user fatigue and a durable trigger switch design that stands up to even the heaviest usage. The NuScan 2100 built-in decoder enables it to handle the majority of 1D barcodes in existence. With its LED scan indicator and programmable tones, users can receive instant scan feedback from the NuScan 2100. Its multi-interface and equipped with field replaceable cable give user flexibility in operation. Just plug into your host device and it is ready to work, no hassle, and no operator training required. The NuScan 2100 offers a compelling scanning solution at a price that is hard to ignore.

Slim & Ergonomic Design

Superior Scanning Performance

High Compatibility

Long Scanning Range

Common Uses For:

• Point of Sale
• Office Use
• Industrial Use
• Retail
• Libraries
• Medical Facilities

Also Great For:

• Legal Offices
• Government Offices
• Marketing Use

Operational Specifications

• Light Source: 617nm visible red LED
• Microprocessor: 32-bit
• Depth of Field: 0 - 12 inches (UPC/EAN 100%, PCS 90%)
• Scan Angle: 42 degrees
• Scan Rate: 330 scans per second
• Minimum Bar Width: 0.1mm (Code 39, PCS=90%)
• Print Contrast: Min. 30% @ UPC/EAN 100%
• Indicators (LED): Blue LED
• Alert Operation: Programmable tone & beep time
• System Interfaces: USB

Physical Specifications

• Legth: 6in.
• Width: 2.5in.
• Height: 4.12in.
• Weight: 0.26lb (Cable excluded)
• Cable: 6.5ft

Power

• Input Voltage: 5VDC ±5%
• Operating Current: 110mA typical

Regulatory

• EMC: CE, FCC, DOC Compliance, VCCI, BSMI

Environmental Specifications

• Operating Temperature: 32 - 122°F (0 - 50°C)
• Storage Temperature: -4 - 140°F (-20 - 60°C)
• Humidity: 5% - 95% RH (non-condensing)
• Light Levels: Max. 100,000 Lux (fluorescence)
• Shock: Designed to withstand 5-foot (1.5m) drops

Decoding Capability

• 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, Codabar (NM7),Code 128, Code 128 with full ASCII, Code 93,Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32
• Options: Industrial 2 of 5, Standard 2 of 5, GS1 DataBar, Matrix 2 of 5, Code 11, Telepen

System Requirements

• Windows® 8 / 7 / Vista / XP / 2000 & Mac® OS X

• USB port
