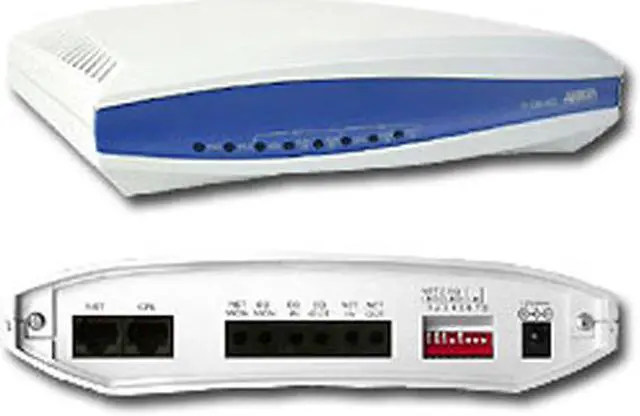

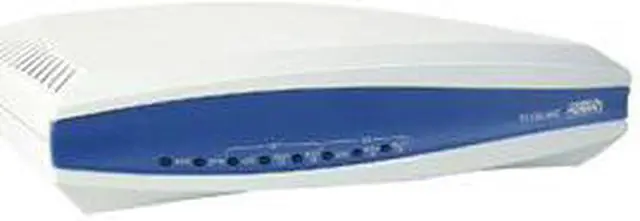

Adtran 1203022L1 T1 CSU ACE with Power Supply 3RD Gen

Be the first to review this product...

1203022L1
T1 Channel Service Unit

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The ADTRAN T1 CSU ACE is a compact, full-featured T1 channel service unit used to connect T1 data terminal equipment (DTE) and T1 facilities. The unit is designed to provide alarms, loopbacks, signal regeneration, line build out, and surge protection.

ADTRAN CSU-ACE ADTRAN T1 ADAPTER 1203022L1Adtran T1 adapterA compact, fullfeatured T1 channel service unit used to connect T1 data terminal equipment (DTE) and T1 facilitiesDesigned to provide alarms, loopbacks, signal regeneration, line build out, and surge protectionManufactured by Adtran (manufacturer part number 1203022L1)Ports 1 x 8pin RJ48C Network, 1 x 8pin RJ48C DTEElectrical interface: DSX1 Data transfer rate: 1.544Mbps T1 POWER SUPPLY: CSUACEPOWER

Model
Brand	Adtran
Model	1203022L1

Details
Type	T1 Channel Service Unit
Specifications	Network Interface Line Rate: T1/FT1 (1.544 Mbps) Physical Interface: RJ-48C: 8-pin modular Specifications: AT&T TR62411 / ANSI T1.403 Framing: D4 (SF)/ESF Line Code: AMI/B8ZS ESF Format: Transparent Input Signal: 0 to -36dB, Auto sensitivity setting Transmission Type: Regenerative transparent toward network and toward DTE / Transparent mode enables PRI pass throug Equipment Interface Electrical: DSX-1 Compliance: ANSI T1.102 Receiver Performance: Line build out for 0 - 655 ft. Keep Alive Signal: Unframed all 1s on loss of signal from DTE Compliance: FCC Part 15, Class B FCC Part 68 Industry Canada CS03 UL 1950, third edition CUL Environment Operating Temperature: 0° to 50°C, (32° to 122°F) Storage Temperature: -20° to 70°C, (-4° to 158°F) Relative Humidity: Up to 95%, non-condensing Physical Dimensions: 1.45" x 6.70" x 4.00" Weight: 0.8 lb. (12.8 oz) Power: 12 VD

Features
Features	T1 line-conditioning and jitter tolerance per ANSI T1.403, T1.102 and AT&T TR 62411 Supports PRI pass through Supports framed (B8ZS or AMI) or unframed signal formats Transmits unframed "all 1s" during signal loss from DTE or T1 network Bantam test jacks Front panel status LEDs 12 VDC powered Desktop or wallmount

Additional Information
First Listed on Newegg	August 30, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
