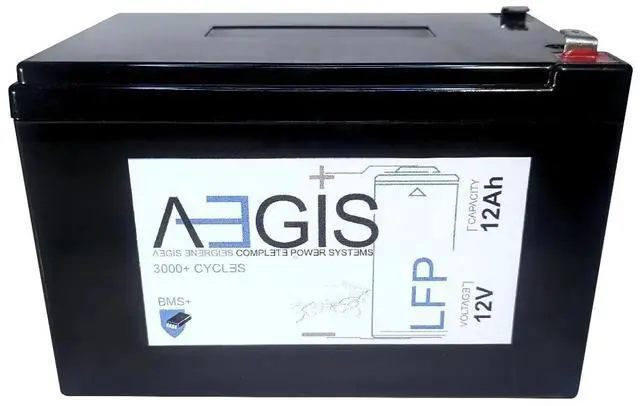

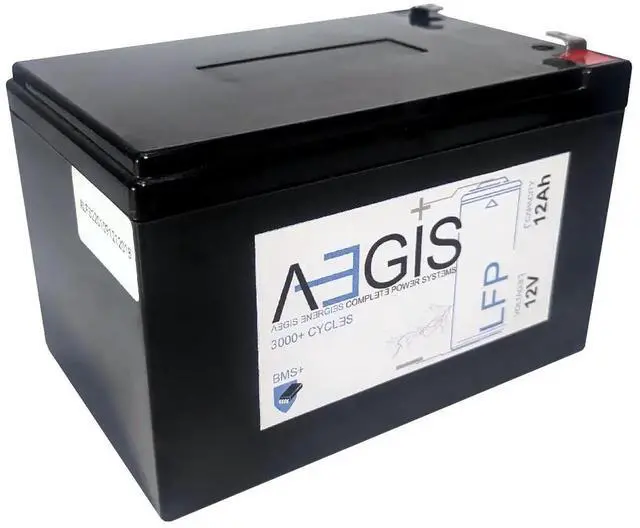

12V 12Ah LiFePO4 LFP Battery
- Model: ALF-012012A
- Battery Case: ABS Hard Case
- Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Cell Type/Assembly Method: 18650 Cylindrical cells / welded
- Voltage (V): 12V
- Capacity (Ah): 12Ah
- Energy Stored (Wh): 144 Watt-Hours
- Weight: 2.9 lbs (1.3 kg)
- Dimension (L x W x H): 6 in. x 4 in. x 3.3 in.
- Discharge Connector: F2 Terminal
- Charge Connector: F2 Terminal
- Cycle Life: 3000+ cycles
- Normal Charged Voltage: 14.6 V
- Normal Charge Current: 3.0 Amps
- Nominal Continuous Discharge Current: 6.0 Amps
- Maximum Continuous Discharge Current: 12.0 Amps
- Maximum Peak Discharge Current: 24.0 Amps (2 sec)
- Charge Temperature: 0°C to 45°C
- Discharge Temperature: -20°C to 60°C
- Operating Humidity: 60±25%R.H
- Storage Humidity: 60±25%R.H
- Automatic Battery Protection Module/System:
- Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
- Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.
- Compatible AC-to-DC Charger Specifications:
- Input Voltage: AC110V-240V, 50/60HZ
- Output Voltage: 29.6VDC
- Current: 5A
- Compatible Charger Model Number: CRF-1205P
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Aegis Battery 12V 12Ah LiFePO4 Battery is a high-performance 12V LiFePO4 (Lithium Iron Phosphate) battery engineered for reliability, long lifespan, and superior energy efficiency. Designed as a drop-in replacement for 12V lead-acid batteries, this advanced LiFePO4 deep cycle battery delivers consistent power, faster charging, and minimal to no maintenance.
Key Features & Benefits:
- Advanced LiFePo4 Chemistry: Utilizes lithium iron phosphate chemistry that offers good energy density (90-120Wh/kg) and great safety benefits in higher thermal thresholds and longevity in higher cycle life.
- Intelligent BMS Protection: The built-in Battery Management System ensures peak performance and extends lifespan by protecting against over-charge, over-discharge, short-circuits, and thermal overload.
- Long Cycle Life: Delivers over 3000+ reliable charge and discharge cycles, providing a long and cost-effective power solution.
- True 100% Depth of Discharge: Access the full capacity on every use without degrading battery health, giving you significantly more usable energy than lead-acid equivalents.
- Ready to Use: Comes pre-assembled with a versatile F2 Terminal Type connector for secure, plug-and-play compatibility.
Ideal Applications: This versatile 12V lifepo4 battery is the perfect upgrade for a wide range of projects, including:
- Solar and Off Grid Energy Storage
- Industrial AGV and Forklift Batteries
- Golf Carts, Mobility Scooters, EV
- UPS Backup power and Emergency lighting
- Low drain Portable radio devices
