This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.

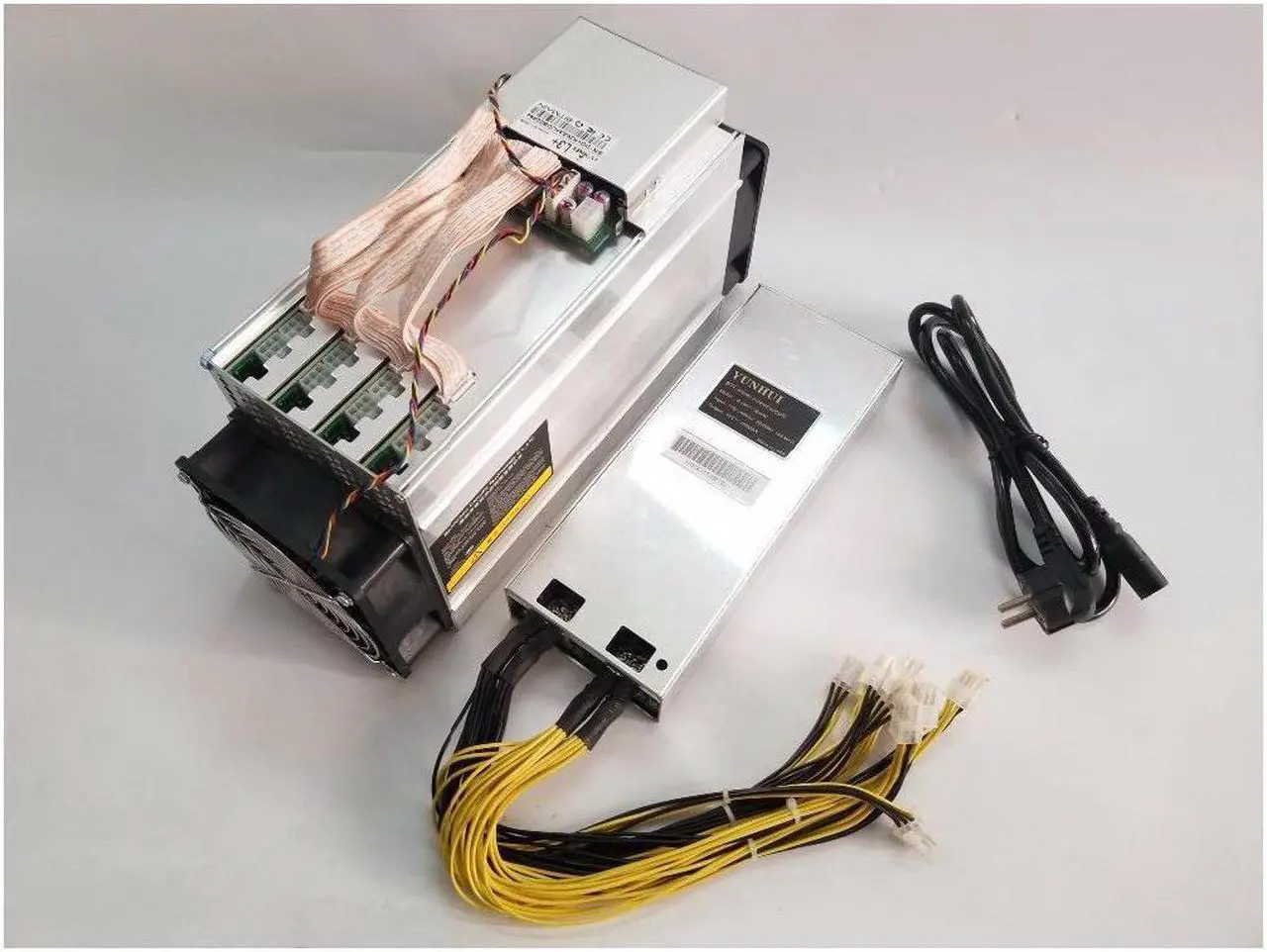

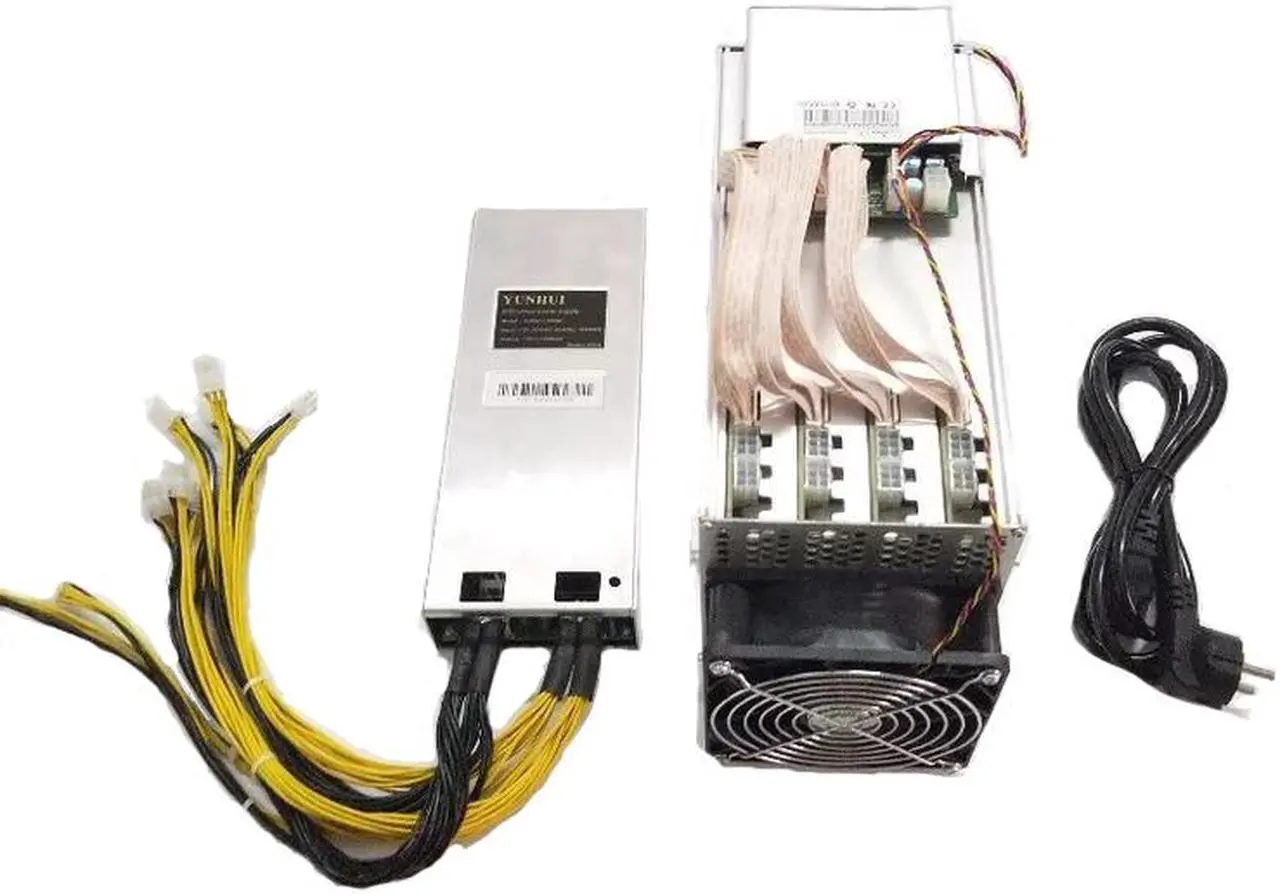

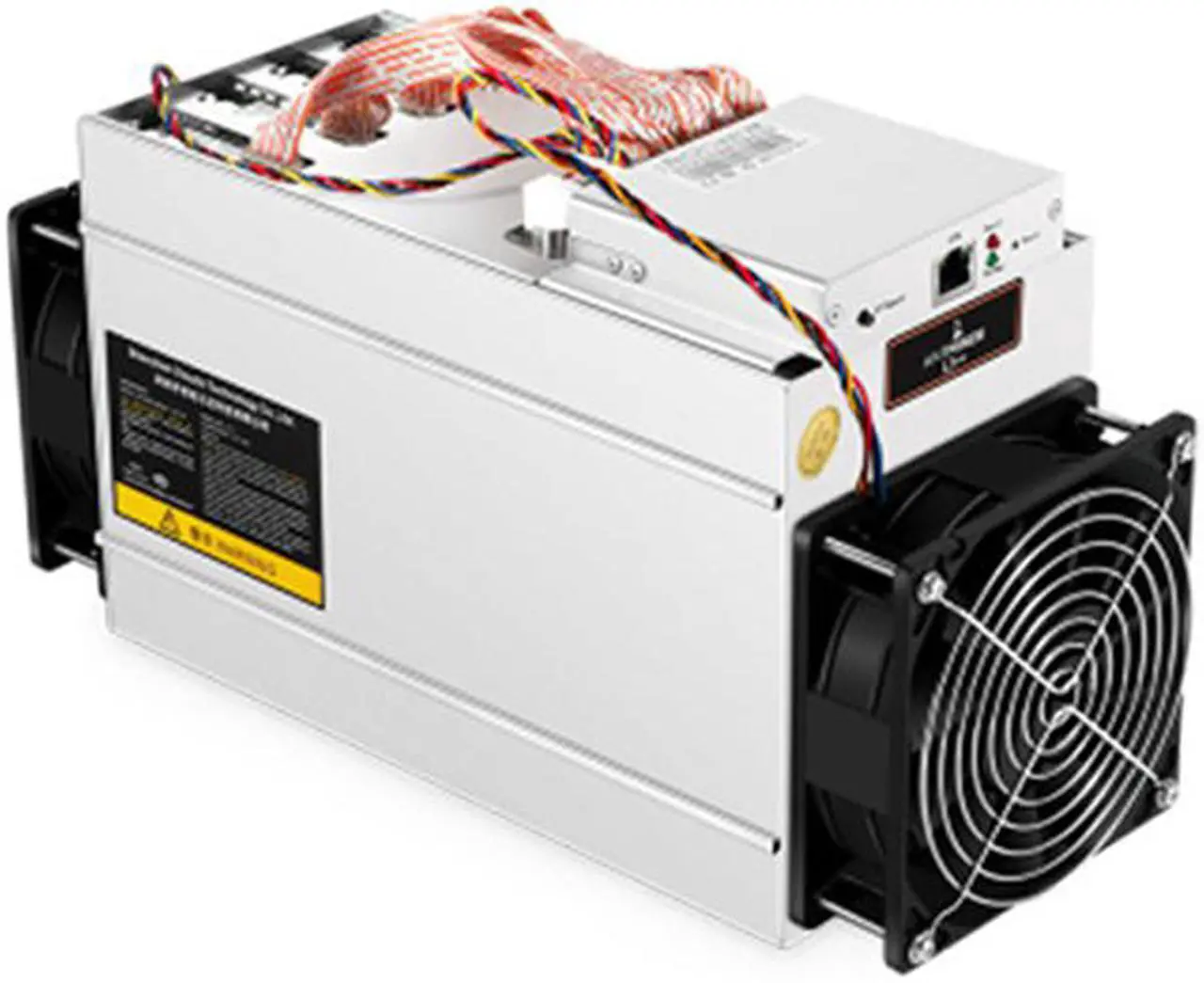

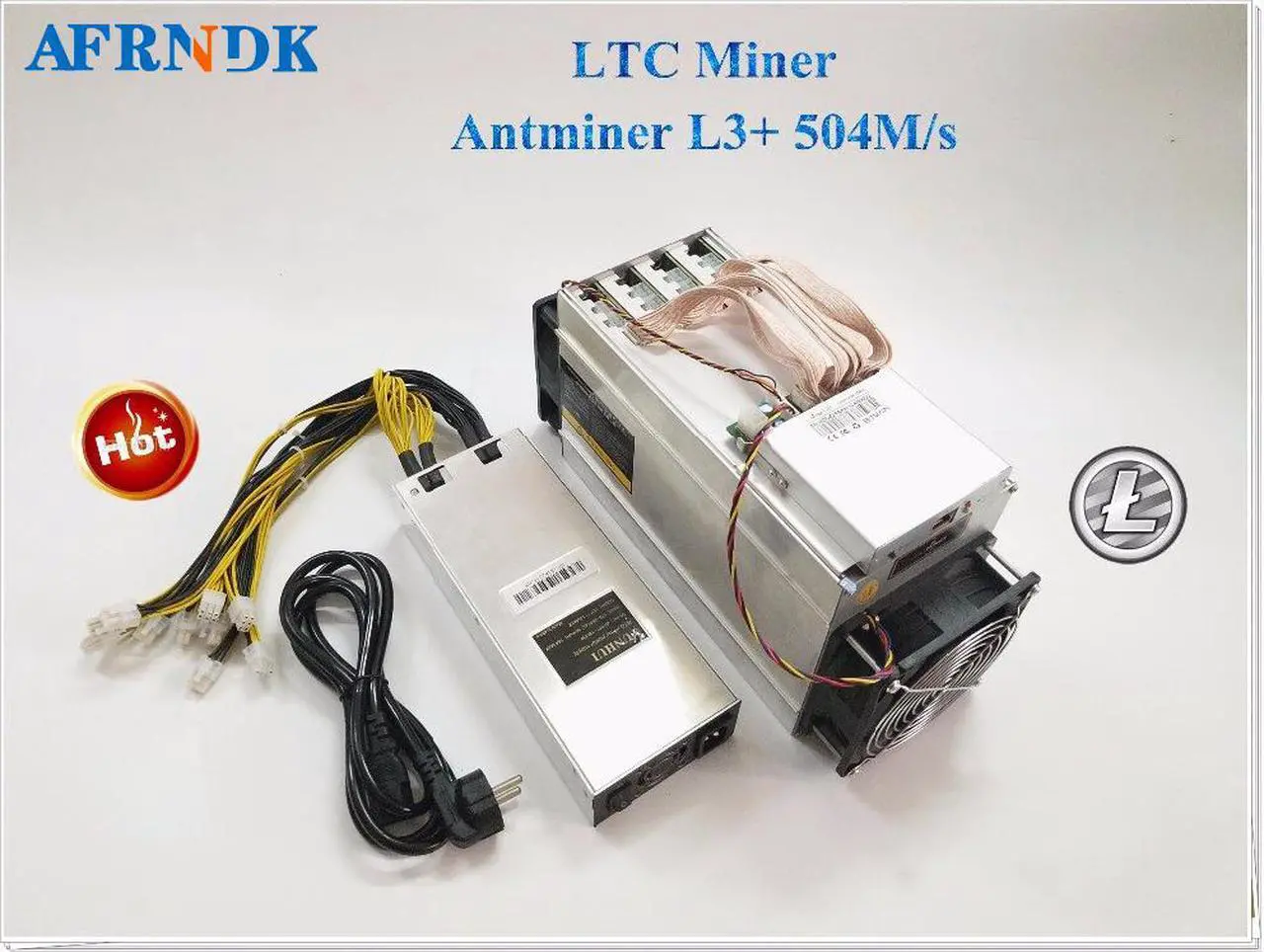

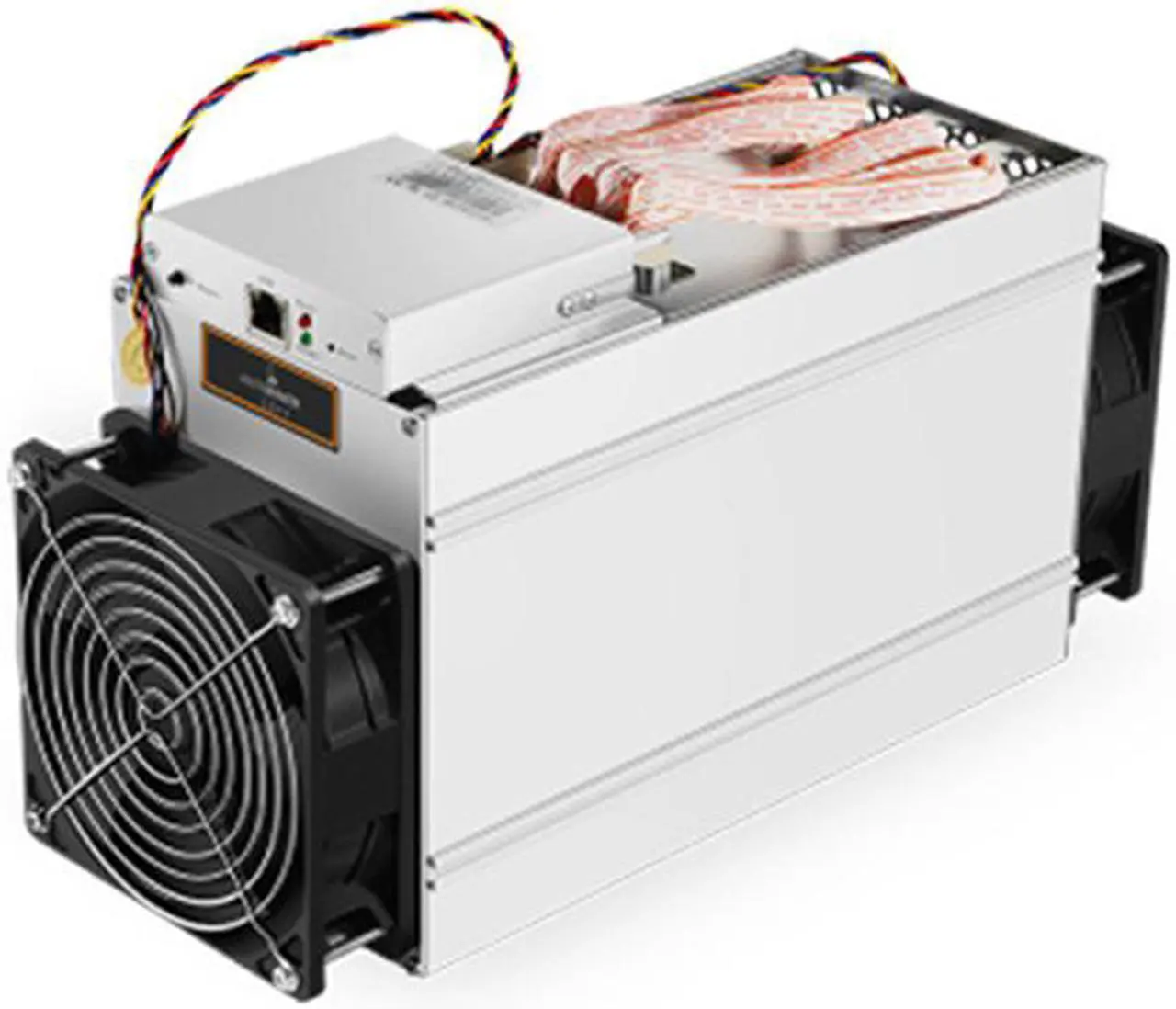

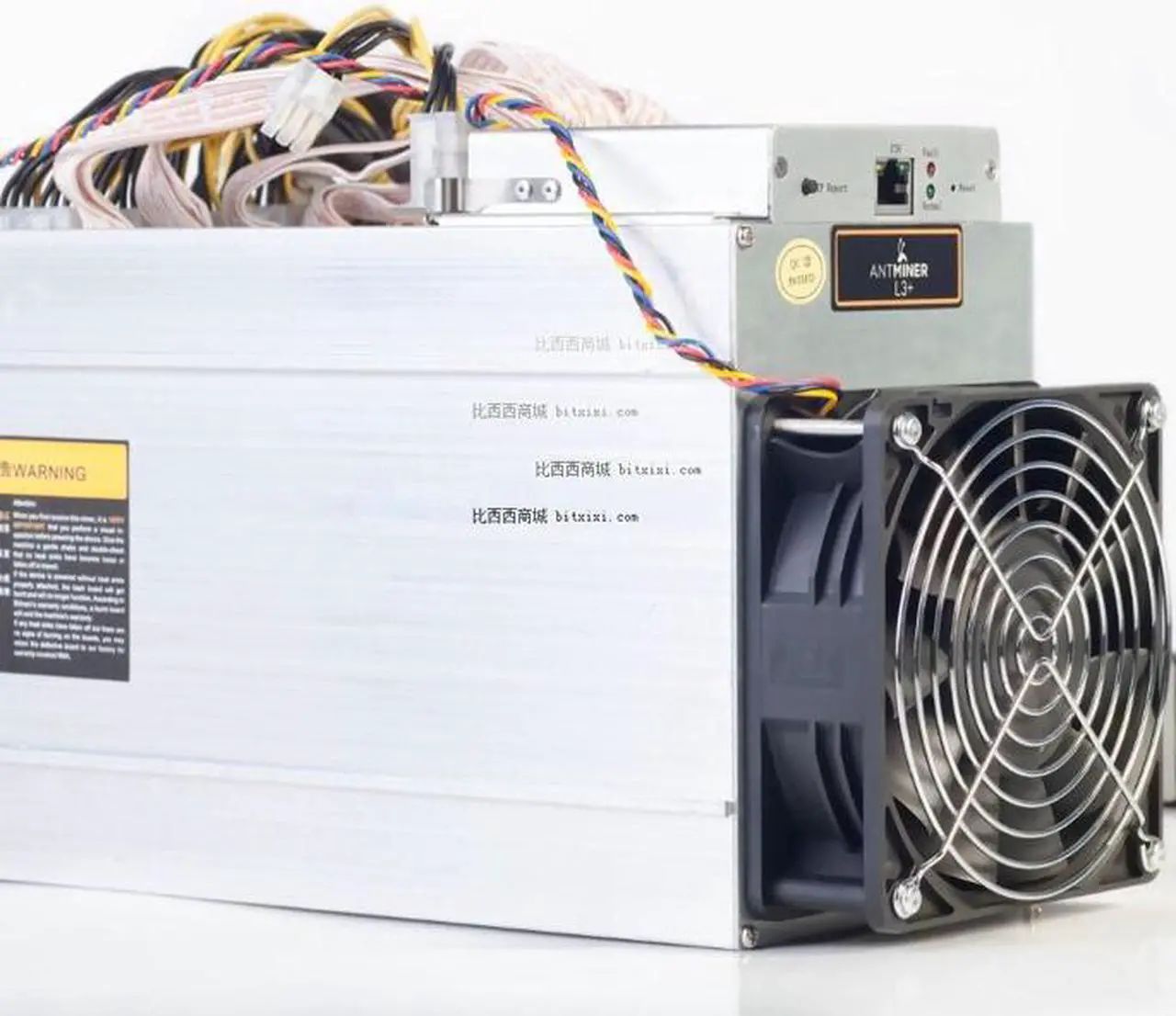

L3+ Litecoin Crypto mining machine uses the latest generation BM1485 chip which is independently developed by Bitmain Technologies Ltd.
With TSMCs 28-nanometer FinFET process and a fully customized design solution, the L3+ cryptocurrency mining machine is capable of reaching a much higher efficiency rating while also using less power low-energy. The energy consumption ratio of this device is 1.6J/MH
Double front and rear fans, independent heat sink, allows for better heat dissipation
High-Grade aluminum alloy chassis with integrally formed surroundings
Each chip has an independent heat sink, meaning that the overall structure is more compact
The heat sink adopts a new bonding technology to make the body more robust
+
+
Overview
Specs
Reviews (1)
The birth of Litecoin is based on the Bitcoin protocol, and the Scrypt encryption algorithm is used in the proof of work algorithm. This makes it easier to mine Litecoin on ordinary computers
Specification 1.Hash Rate: 504MH/s, A variation of +/- 5% is expected. 2.Power consumption: 800W+10%(at the wall, with Bitmain's APW3 PSU, 93% efficiency, 25% ambient temperature) 3.Power Efficiency: 1.6J/MH+10%(at the wall, with Bitmain's APW3 PSU, 93% efficiency, 25% ambient temperature) 4.DC Voltage input: 11.60-13.00V 5.Chip type: BM1485 ASIC Chip. 6.Chip quantity per unit: 288 chips on four hashing boards, 72 chips on one hashing board 7.Operation temperature: 0°C- 40°C 8.Network Connection: Ethernet
Note: It is recommended to use an independent power supply to power the whole machine. In the case of a non-independent power supply, the four hash boards can be connected to different power sources, but each hash board cannot be connected to multiple power sources, and the hash board is finally powered on

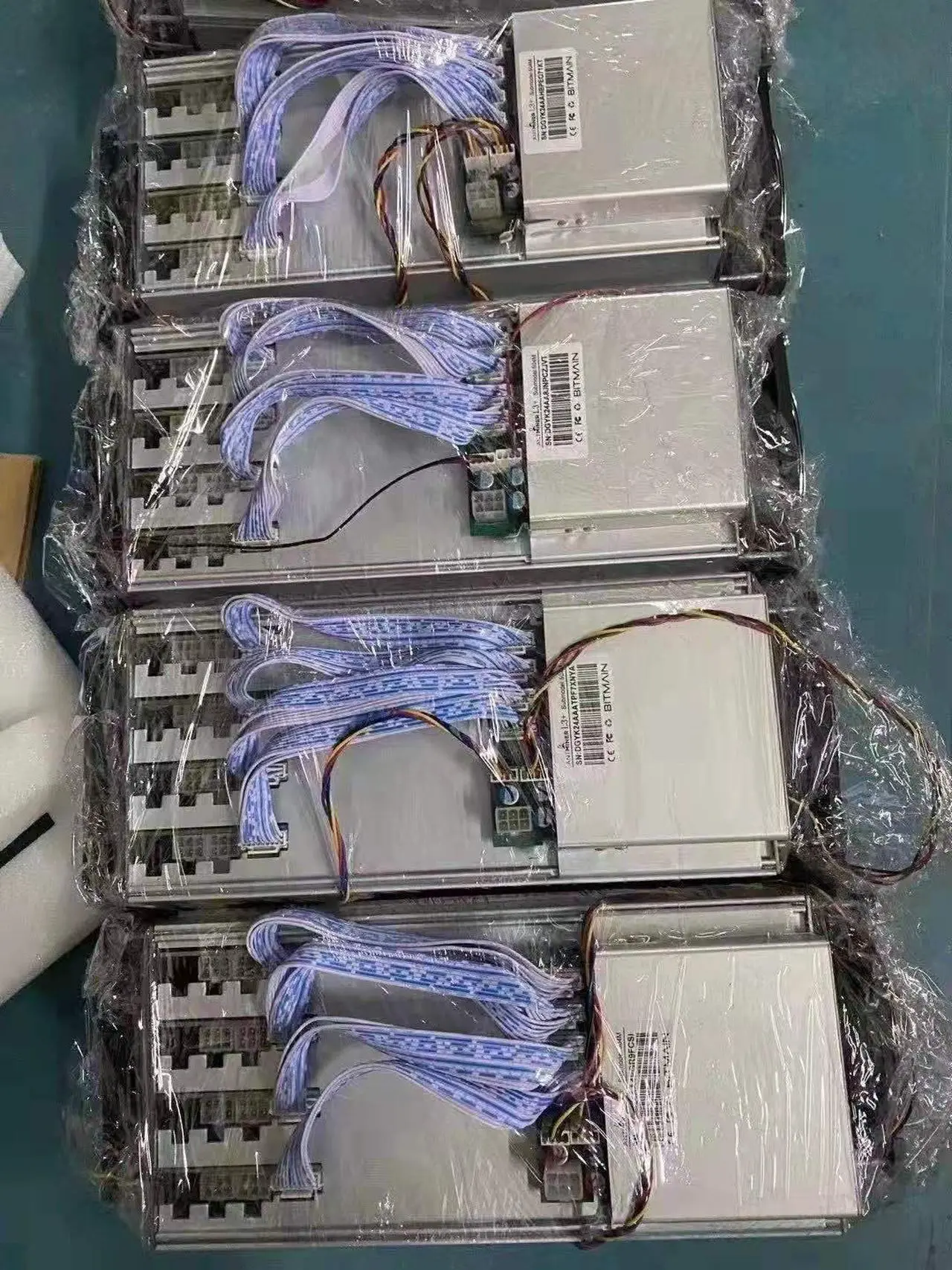

this item is refurbished, already change new case and the system has been change updated, it looks like new.
Hash Rate
504 MH/S, A variation of +/- 5%, expected.
Power Consumption
800W +10%(at the wall, with Bitmain's APW3 PSU, 93% efficiency)
Power Efficiency
1.6J/MH/s + 10%(at the wall, with Bitmain's APW3 PSU, 93% efficiency)
DC Voltage Input
11.60~13.00V
Chip Type
BM 1485 ASIC chip
Chip quantity per unit
288 chips on four hashing boards, 72 chips on one hashing board
Dimensions
352mm(l) x 130mm(w) x 187.5mm(h)
Operating temperature
0~40?C
Learn more about the Detailed Specifications
