Features exclusive patented color light technology(red, blue, green light), optimized for capturing various color barcodes. Effortlessly scans color labels, reflective surfaces, and complex backgrounds with high precision, ensuring clear and efficient performance across retail, payment, hospitality,Warehousing,logistics,industry,agricultural materials and healthcare industries.

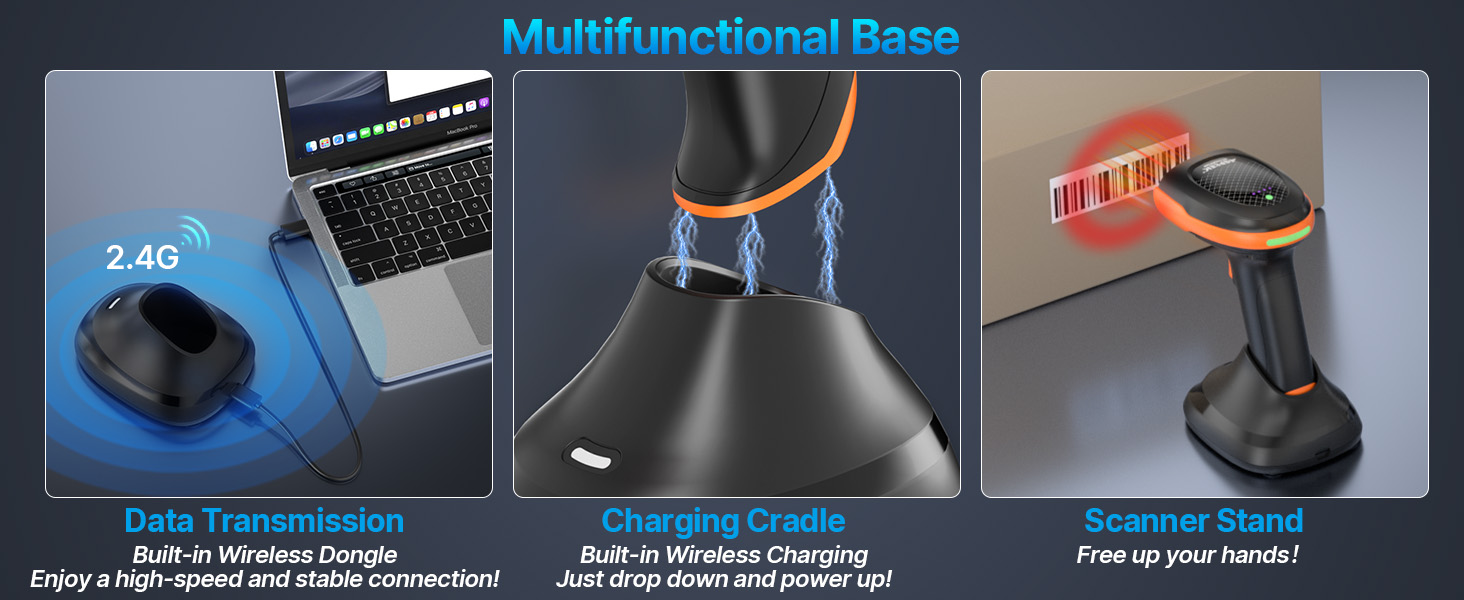

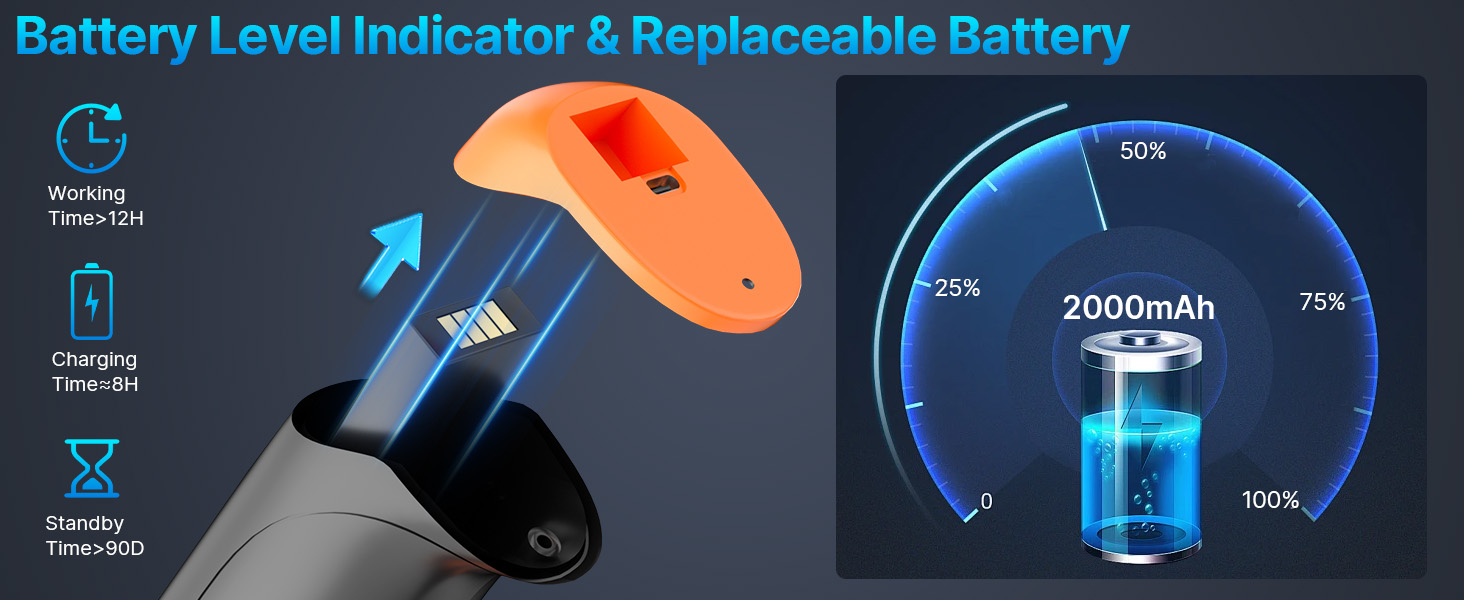

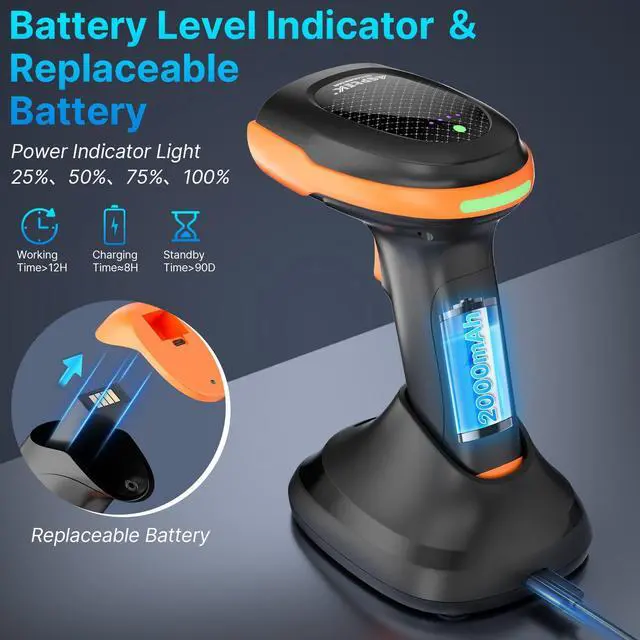

Equipped with a battery level indicator and a 2000mAh high-capacity battery, providing up to 12 hours of continuous use. The cradle integrates wireless charging, signal reception, and stand functions, ensuring easy charging and storage, and supporting multi-tasking work environments.
Powered by a high-performance decoding engine, it supports fast scanning of 1D and 2D barcodes, including QR, Data Matrix, and PDF417. Capable of reading barcodes on shrink-wrapped, damaged, smudged, or poorly printed labels with high accuracy, making it suitable for a variety of challenging applications.

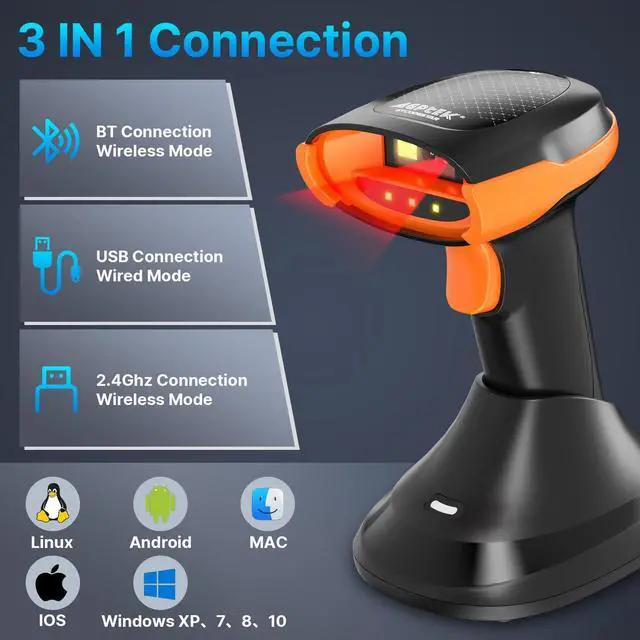

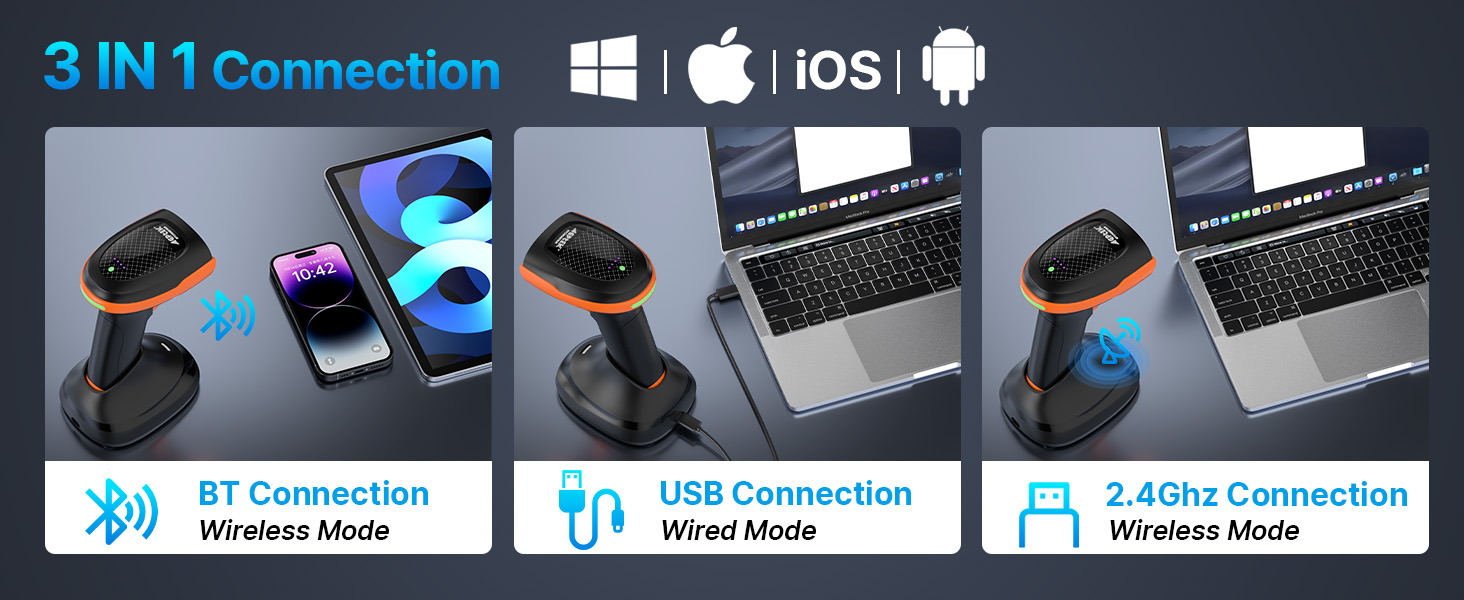

Supports Bluetooth, 2.4GHz wireless, and USB 3-in-1 connectivity with a transmission range of up to 90 meters in open spaces. Compatible with smartphones, tablets, PCs, and POS systems, and works seamlessly with Windows, Mac OS, iOS, Android, and Linux, providing flexibility for diverse applications.
Offers advanced features such as timestamp, prefix/suffix addition, and barcode character hiding. Supports quick online upgrades and multi-language keyboard configurations, with LED indicator lights and adjustable buzzer settings to meet personalized needs across various scenarios.

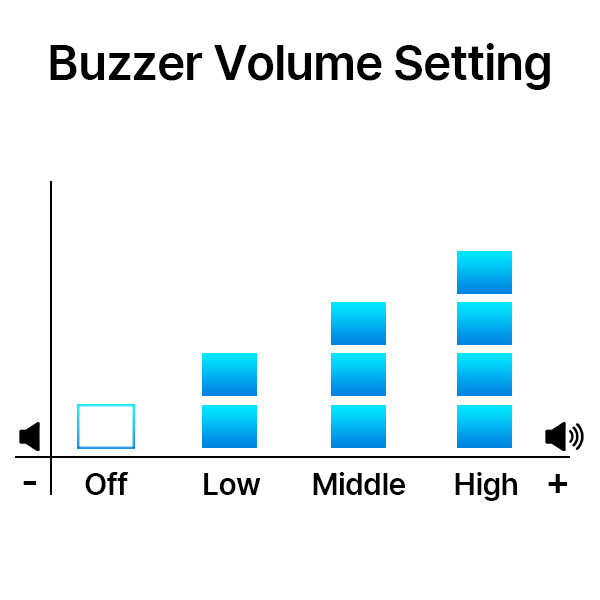

If you require a quiet working environment, you have the flexibility to switch to a lower volume or turn off the sound.
Instant Upload Mode
Read and upload codes straight to the device connected.
Storage Mode
Activate storage mode when using scanner ou of the wireless signal range.
All codes scanned will be stored directly into the scanner memory, then the user can upload the data to the device after connected.
512 KB memory space.Store up to 20000 barcodes data
Supports multiple languages, including English (US), French (Canada), Dutch (Netherlands), Spanish (International), Latin American Spanish (Argentina), Portuguese (Brazil), Danish (Denmark), English (UK), Italian (Italy), French (France), German (Germany), Portuguese (Portugal), Finnish (Finland), Turkish (Turkey), Japanese, Russian (Russia), and Northern Sami (Norway).
English is the scanner's default language.
Notice: Incorrect language setting will result in some character's wrong output.
To make sure the right outputs, please set the same language of the scanner as your computer's keyboard language.

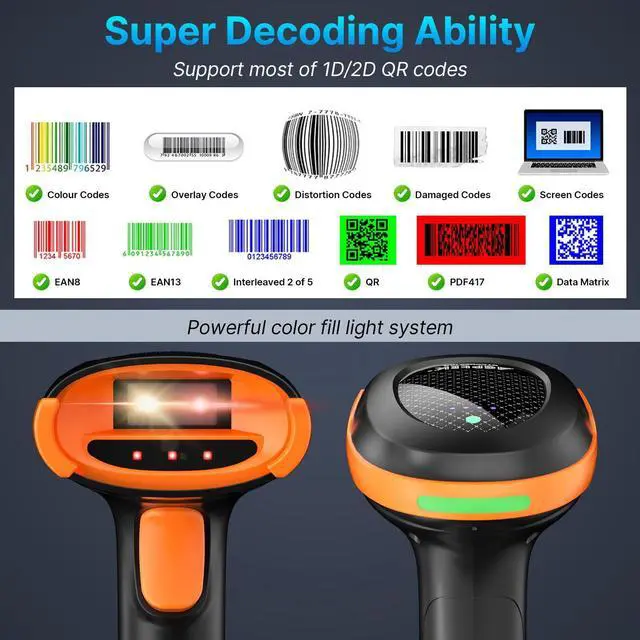

Nearly all 1D and 2D printed codes or digital codes on screen.
Normal, inverse (like white barcode on black background) codes and colorful labels.
Decoding Capability
- **1D Barcodes:**
Code25-Interleaved, Code25-Standard, Code25-Matrix, RSS-14, Code39-Regular, Code39-FullASCII, Code93-Regular, Code93-FullASCII, Code128, Code11, UPCE0/E1, EAN/GSL/UCC-128Auto, Codabar, MSI, EAN/JAN-13, UPC-A, JAN/EAN-8, ChinaPost 25, Plessey
- **2D Barcodes:**
Data Matrix, QR, PDF417, Micro QR, HanXin, Micro PDF417, Maxi Code, Aztec
Notice: The distance between scanner and code varies in the different size of codes,hence user need to zoom in and out to match the best inteval.

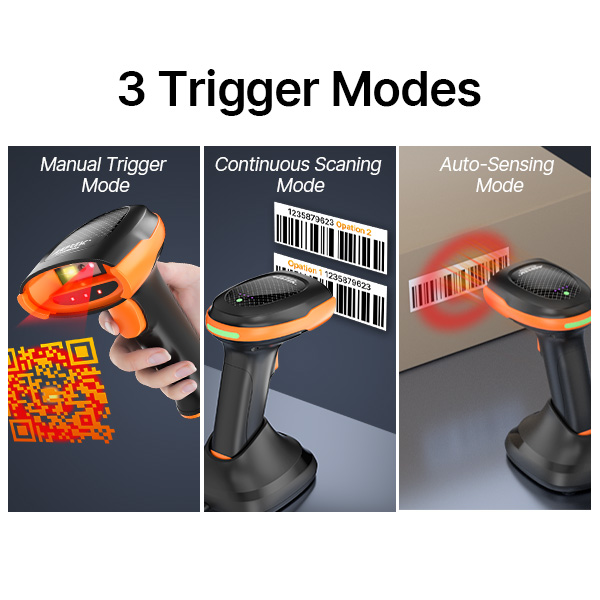

Auto-Sensing Scanning Mode: Automatically detects and scans barcodes, ensuring hands-free operation.
Continuous Scanning Mode: Keeps scanning continuously without the need for triggering, perfect for high-volume tasks.
Manual Trigger Mode: Allows manual activation, giving you full control over the scanning process.
With these flexible modes, you can easily switch between them for maximum productivity.
Notice: To switch between modes, simply scan the barcode provided in the user manual.
Supports adding/hiding prefixes and suffixes to provide enhanced functionality.
Customise the scan output by adding relevant information.
Equipped with a tested button lifespan of over 10 million presses, far exceeding the industry standard of 100,000 presses. The lightweight button design ensures effortless operation, reducing finger fatigue even during extended use for a more comfortable scanning experience.
Customizable Barcode Output with Timestamp and More
Our barcode scanner allows you to include a timestamp with date and time in the barcode output. It also offers customizable features:
Custom Bluetooth Name
Customizable Key Functions
Windows Online Updates
Note: Contact customer support for the installation package to access these settings.
Adapt the scanner to fit your needs for maximum efficiency and convenience.

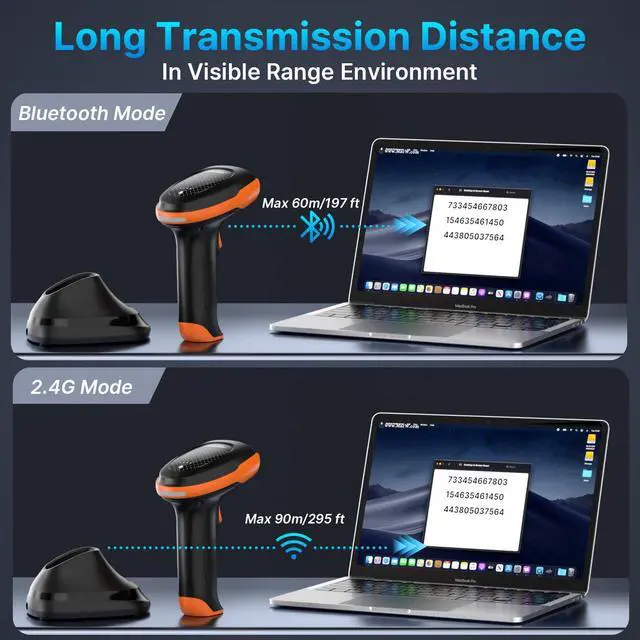

Bluetooth Mode:Max 60m/197 ft(line of sight)
2.4G Mode:Max 90m/295 ft(line of sight)

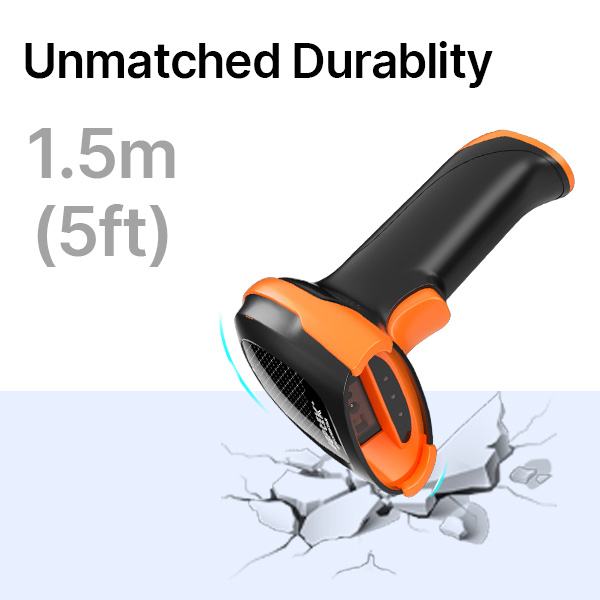

Survive 1.5m(5ft) drops to the concrete
Suitable for retail/payment/catering/agriculture/warehouse/logistics/medical fields

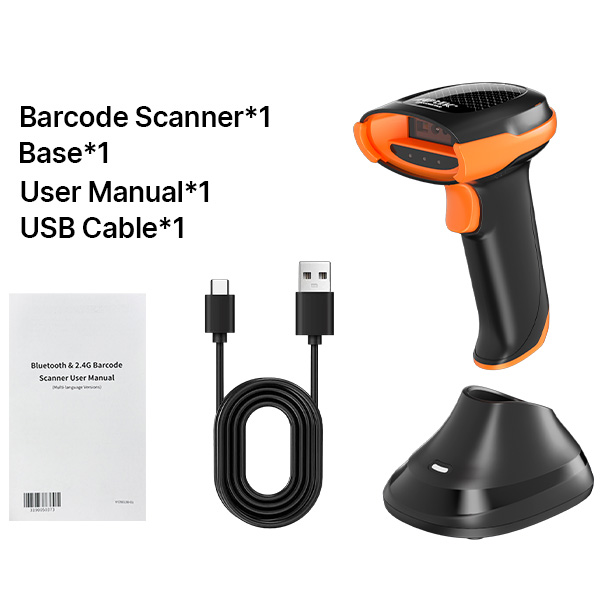

Barcode Scanner*1\Base*1\User Manual*1\USB Cable*1
User manuals: Multi-language versions including English, German, French, Japanese, Italian, Spanish
#Physical Specifications:
*Material: ABS + PC + TPU
*Power Supply: DC 5V ±5%; Built-in 3.7V 2000mAh Lithium Battery
*Power Consumption:
Working: 0.41W
Standby: 0.25W
Peak: 0.76W
*Weight:
Scanner: 169g ± 3g (excluding cables)
Charging Base: 68g ± 3g (excluding cables)

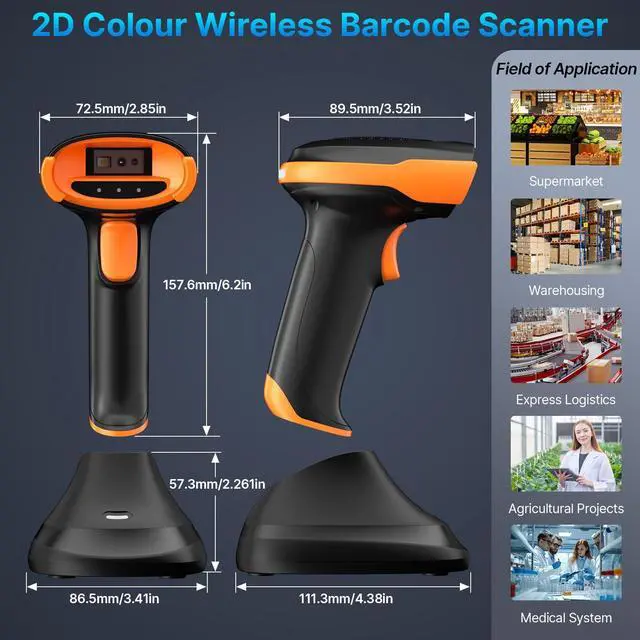

*Dimensions:
Scanner: 157.6 × 89.5 × 72.5 mm
Charging Base: 111.3 × 86.5 × 57.3 mm
*Color: Black Orange
#Performance Specifications:
*Data Transmission: USB; 2.4G; Bluetooth
*System Compatibility: Linux, Android, Windows XP/7/8/10, Mac, iOS
*Language Support:
Supports multiple languages, including English (US), French (Canada), Dutch (Netherlands), Spanish (International), Latin American Spanish (Argentina), Portuguese (Brazil), Danish (Denmark), English (UK), Italian (Italy), French (France), German (Germany), Portuguese (Portugal), Finnish (Finland), Turkish (Turkey), Japanese, Russian (Russia), and Northern Sami (Norway).
[Supports multilingual keyboard input]

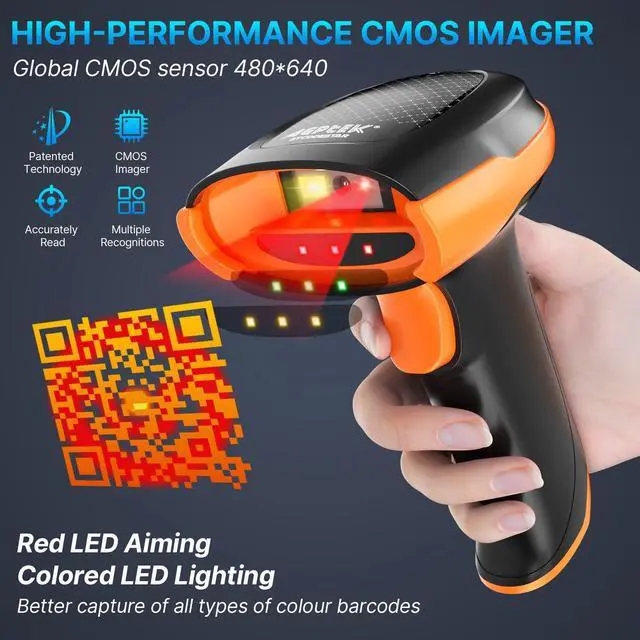

*Sensor: 640×480 CMOS Sensor
*Processor: 32-bit ARM MCU
*Storage Capacity: 512 KB (customizable)
*Light Source: White LED illumination + Red LED positioning
*Motion Tolerance:
Code 128: 20cm/sec
QR: 25cm/sec
*Scanning Method: Image-based
*Resolution: Max 5mil
*Error Rate: 1/5,000,000
*Trigger Modes: Button-trigger mode, Continuous scan mode, Automatic sensing mode
*Feedback Modes: Buzzer + Indicator light
*Reading Angles: 360° rotation, 42° horizontal, 37° vertical
*Reading Distance: 1cm to 200cm
*Print Contrast: Max 25%
*Charging Time: Approximately 8 hours
*Working Time: Approximately 35 hours
*Supported Barcode Types:
1D Barcodes:
Code25-Interleaved, Code25-Standard, Code25-Matrix, RSS-14, Code39-Regular, Code39-FullASCII, Code93-Regular, Code93-FullASCII, Code128, Code11, UPCE0/E1, EAN/GSL/UCC-128Auto, Codabar, MSI, EAN/JAN-13, UPC-A, JAN/EAN-8, ChinaPost 25, Plessey
2D Barcodes:
Data Matrix, QR, PDF417, Micro QR, HanXin, Micro PDF417, Maxi Code, Aztec
*Depth of Field:
QR (9.17 mil, 7 characters): 6 to 10cm
Data Matrix (9.17 mil, 7 characters): 7 to 10cm
Code93 (5.83 mil, 14 characters): 7 to 10cm
Refund Codes (28 characters): 10 to 15cm
WeChat Payment QR Codes: 9 to 45cm
