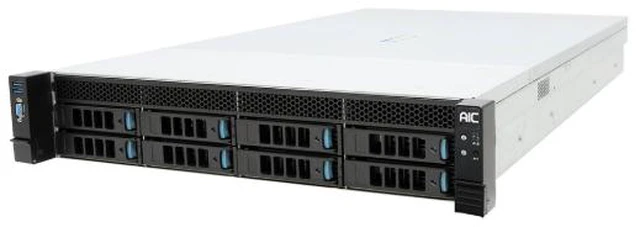

    AIC ES1-208-E0 Server - Chassis 2U 8 x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Titanium redundant power supply, 2 x 15mm 2.5" hot-swap OS SATA, 3 x 8038 hot-swap FAN

    Be the first to review this product...
    • General purpose 2U rackmount chassis support SSI EEB and E-ATX M/B, with size up to 12.8''x14'' and thickness up to 3.2mm
    • Tool-less design supports quick installation and easy maintenance:
    • - 3.5'' & 2.5'' drive trays, slide rails, backplane
    • - Top cover with embedded latch & lock design
    • Supreme system cooling:
    • - 4 x 8038 hot-swap fans (4th one optional) to support TDP up to 270W
    • Flexible configuration to adapt to a wide variety of applications
    • - Optional 2 x 2.5'' hot-swappable OS drive bays at rear
    • - Optional bracket for 2 x internal 2.5'' drive bays for future storage expandability
    • - Flexible backplane support: 1 x 8-port 12Gb/s SAS3 or NVMe tri-mode backplane
    • Anti-vibration design for fan holder & fan cage
    +
    +
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    Learn more about the AIC Inc. ES1-208-E0

    Model
    Brand AIC
    Model ES1-208-E0
    Part Number XE1-208E0-04
    Details
    Form Factor 2U
    Color Front Panel: Black
    Case Material SGCC
    Motherboard Compatibility SSI EEB 3.6 compliant, E-ATX up to 12.8''(W) x 14''(D)
    Power Supply 550W 1+1 redundant PSU 80+ Platinum
    800W 1+1 redundant PSU 80+ Platinum/Titanium
    LED Indicators Power, ID, LAN 1, LAN 2, Drive, and Alert
    Expansion
    External 3.5" Drive Bays 8
    Expansion Slots 7 low profile
    Cooling System
    Fan Options 3 x 80x38mm hot swap fans
    Features
    Features Front Panel:
    System power on/off, System ID, system reset, 2 x USB3.2 Gen1 x1 ports

    Backplanes:
    Front:
    1 x 8-port SAS3/SATA backplane
    1 x 8-port SAS3/SATA/PCIe Gen4 NVMe tri-mode backplane
    Rear:
    1 x 2-port SATA backplane
    1 x 2-port SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane

    Storage Temperature:
    0°C(32°F) ~ 50°C(122°F)

    Humidity:
    5% ~ 95% non-condensing

    Mounting:
    Standard: 36'' tool-less slide rail
    Dimensions & Weight
    Dimensions 3.4'' x 17.2'' x 28.35''
    Weight 46.3 lbs.
    Additional Information
    First Listed on Newegg October 28, 2026

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
