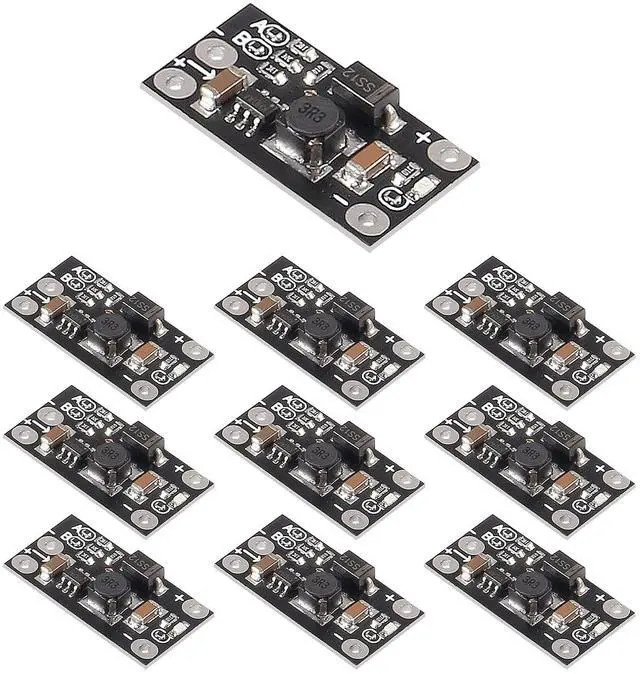

KEHIPI 10PCS 1.5A Multi-Function Mini Boost Module Step Up Board 3.7V to 5V 8V 9V 12V Step Up Board with LED Indicato for DIY Electronic Voltage Moduler
- The output voltage can be set to 5V/8V/9V/12V, the default is 12V
- Input voltage range: 2.5V~VOUT-0.5V
- You can easily convert a single-cell lithium battery to 5V 8V 9V 12V.
- The maximum output current reaches 1A.
- Product size: 22 × 11 × 3.6mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Output Voltage: can be set to 5V/8V/9V/12V, the default is 12V
Input Voltage: 2.5V~VOUT-0.5V
Output Performance: Take 3.7V lithium battery input as an example, it can output 5V1A, 8V0.7A, 9V0.6A, 12V0.5A. Make sure that the input current and output current do not exceed 1.5A.
When the default 12V output, the LED indicator consumes about 6mA; If the indicator light is turned off, the input current<1mA
Product size: 22 × 11 × 3.6mm
INSTRUCTIONS:
The front side of the PCB can be seen with the words A and B. The output voltage can be changed by using the soldering iron to change the pad on and off. In the following table, 0 means the pad is disconnected and 1 means the pad is connected.
A B VOUT
0 0 5V
0 1 8V
1 0 9V
1 1 12V
Package included:
10 x Mini Boost Module 3.7V Lithium Battery to 5V 8V 9V 12V Step Up Board
