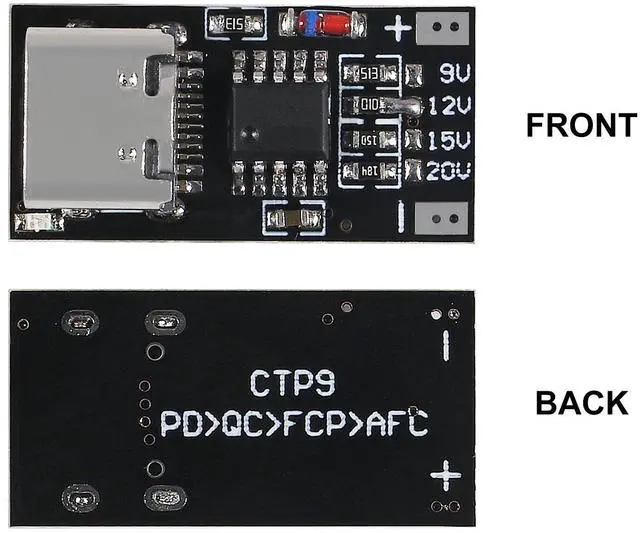

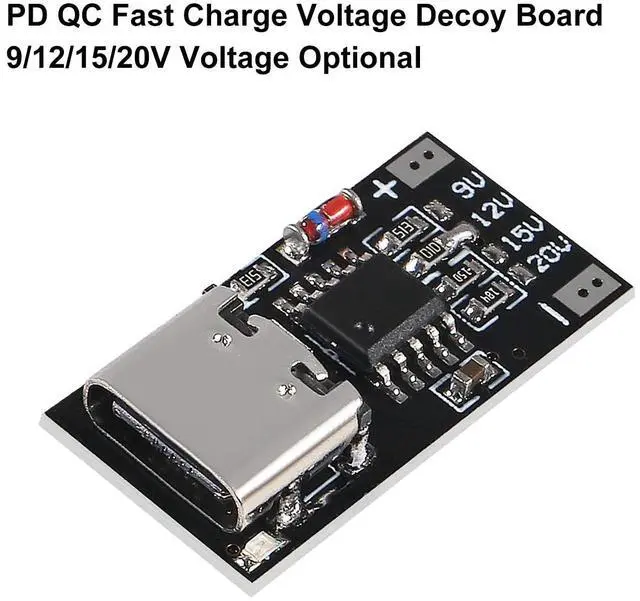

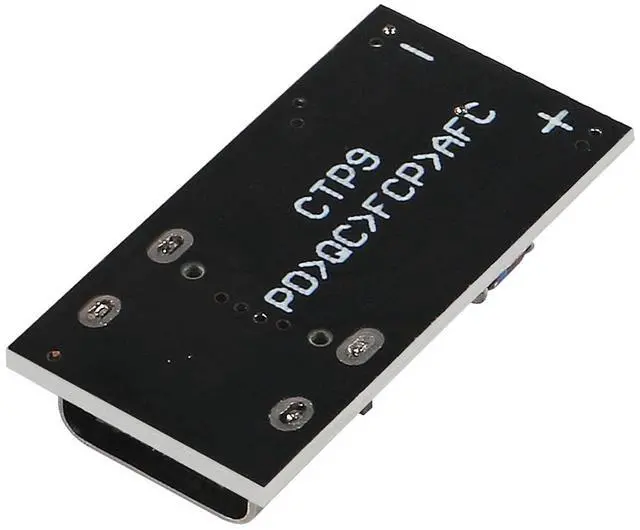

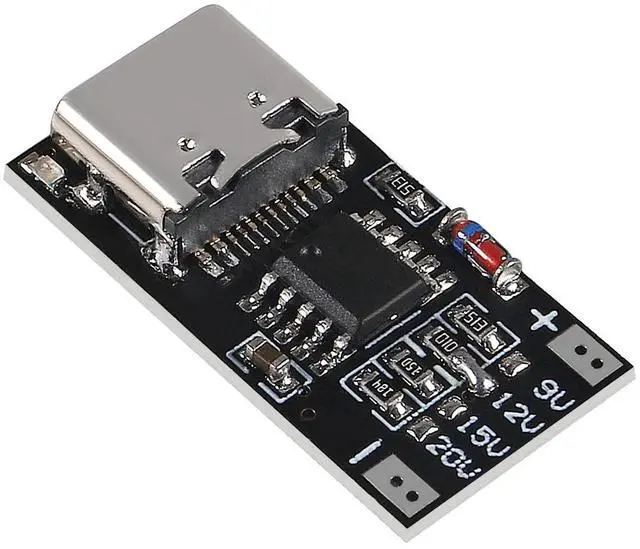

KEHIPI 10PCS Type-C PD2.0 PD3.0 9V 12V 15V 20V Fast Charge Trigger Polling Detector USB Boost Power Supply Change Module Charger Board

Product

1: Support a variety of fast charging protocols

2: Wide range of applications

3: Small size

4: Maximum support 5A

5: TYPE-C port power supply

6Support a variety of fast charging protocols:PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC

Function/function of this product:

1. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts,12 volts to power routers, light cats, etc.!

2. Turn some traditional DC-powered devices into TYPE-C port power supply.

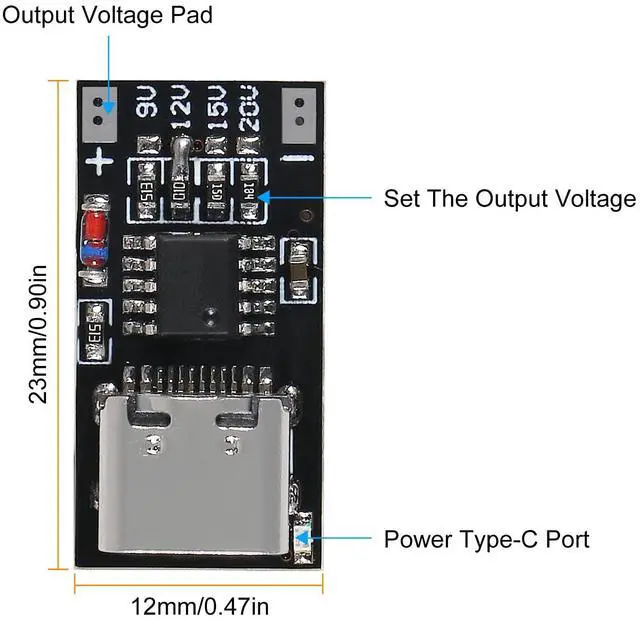

3. The size of the decoy board: 23*11.5*4mm

Notice

1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.

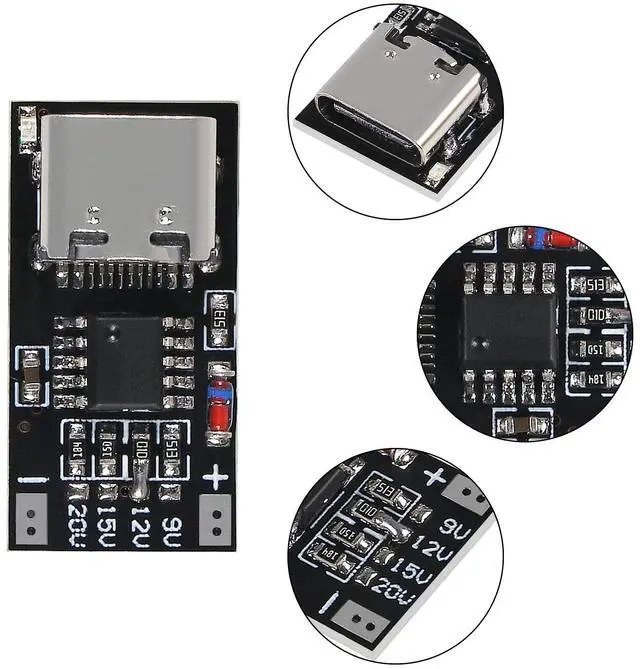

2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.

3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.

4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.

Package :

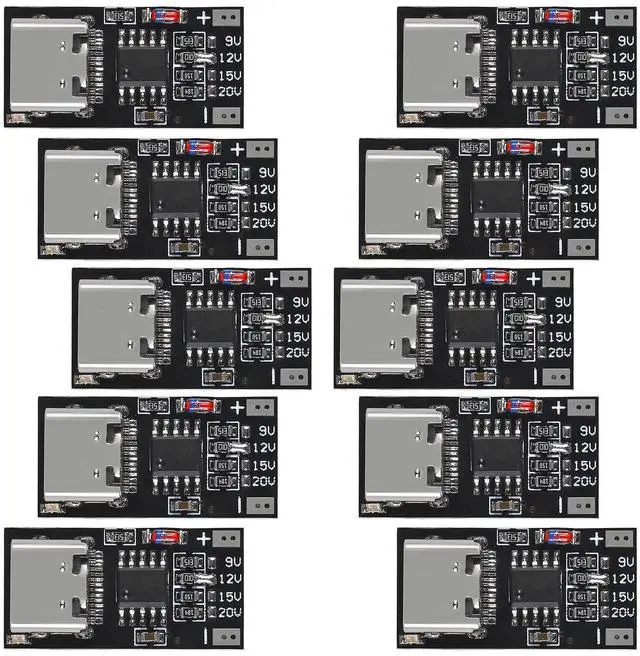

10*PD/QC decoy board fast charge USB boost module Type-c
