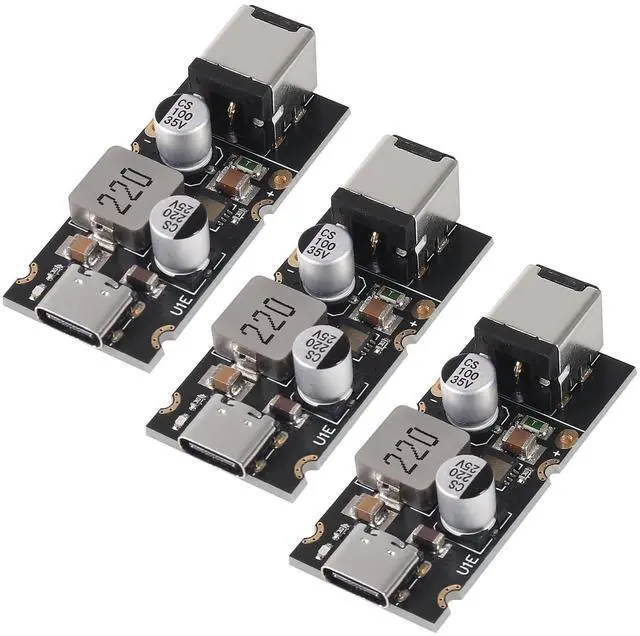

KEHIPI 3PCS PD65W Fast Charging Module, 5V3A 9V3A 12V3A 20V3.25A to USB C PD3.1 QC3.0 Charging Circuit Board for Phone Fast Charging with DC 5.5X2.5 USB
- With protection functions, input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent and short circuit protection, and overall overtemperature protection
- Input 8~30V (only step-down)
- Output 20V 3.25A. Support PD3.1 (PPS), QC3.0
- Models are divided into 5521 and 5525, 5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm
- Instructions for use: If the 20 to 24V power adapter is used as the input, you are advised to power on the power supply before connecting to the module. Otherwise, the module may fail to output 65W due to a slow power supply.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

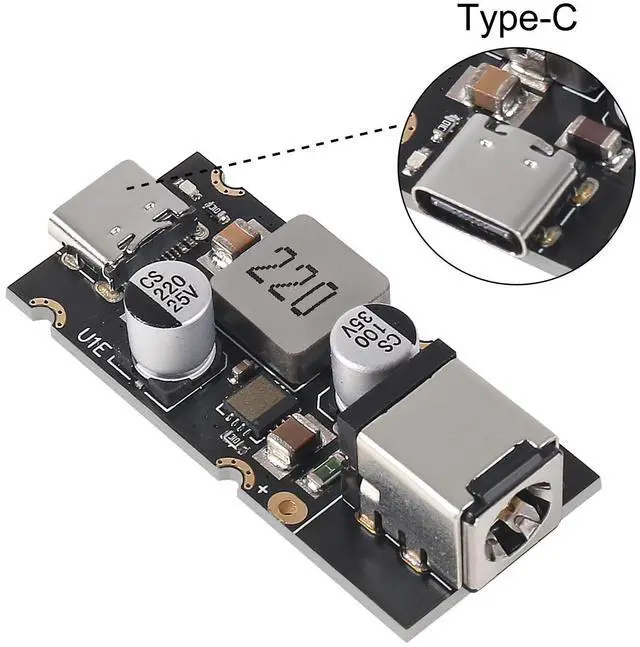

PD 65W Fast Charging Module Supports PD3.1 QC3.0 PPS Fast Charging Type-C Interface For 8-30V Fast Type-C Interface
Models are divided into 5521 and 5525,
5521: outer diameter 5.5mm, inner diameter 2.1mm;
5525: outer diameter 5.5mm, inner diameter 2.5mm
Specifications:
Input voltage :DC8~30V
Output voltage: Automatically adjust at 3.3V~21V
when connected to a TYPE-C compatible receiving
device (input voltage should be higher than output
voltage, if you want to trigger 20V fast charge, input
voltage should be higher than 20v)
Output power: 65w Max (5V3A,9V3A,12V3A, 20V3.25A, etc.)
Max output :20V 3.25A
Conversion efficiency :92%~97%
Output voltage ripple : 200mV
No-load current :< 3mA
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent short-circuit protection
Overtemperature protection for the whole machine
Supported charging protocols :PD3.1(PPS), QC3.0,

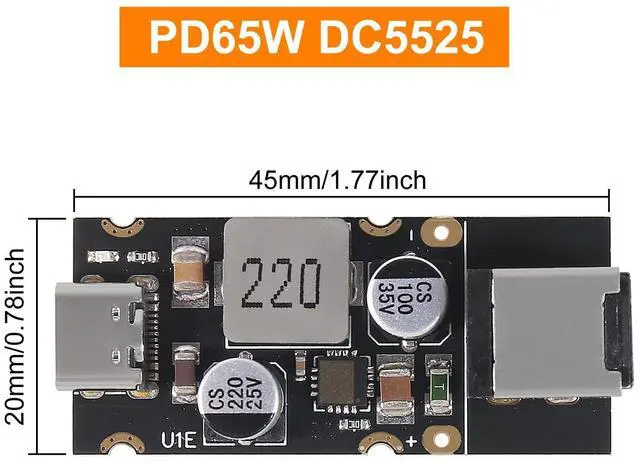

1 x PD65W Fast Charging Module with DC5525 5.5X2.5mm
