KEHIPI 5PCS USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 5V9V12V20V High Speed Charger Power Delivery Boost Module

Description

1.The PD decoy supports PD3.0/2.0, BC1.2 and other boost and fast charging protocols, supports up to 10w power, and provides over-temperature, over-voltage protection and other functions.

2.The voltage can be adjusted by the dial switch, and the maximum output voltage is 20V.

3.Support fast charging protocols such as PD3.0/2.0 and BC1.2

4.Supports USB Type-C PD, forward and reverse insertion detection and automatic switching

5.Support 4V to 22V input voltage

Parameters:

• Input voltage: support 4V to 22V
• Output voltage: up to 20V
• Interface: support USB Type-C PD
• Power: up to 100W

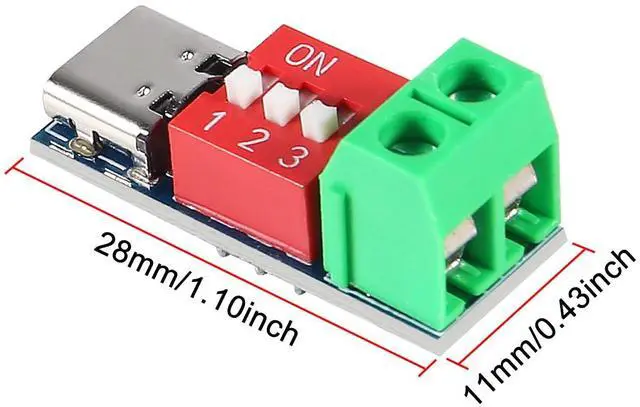

• Product size: 11 * 25.7mm

Instructions:

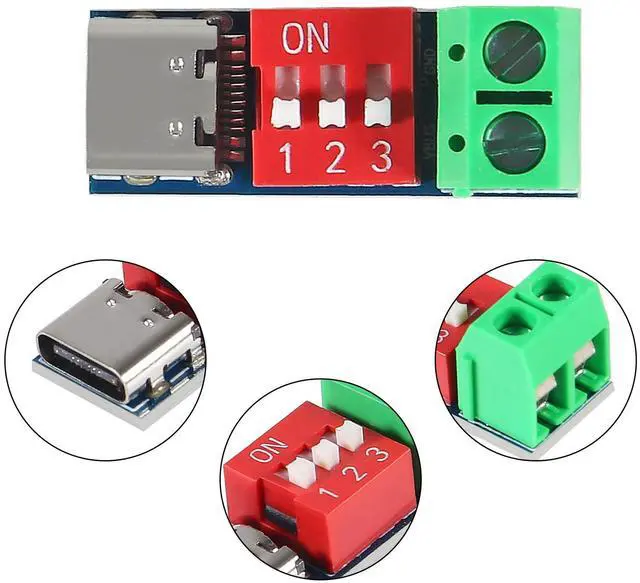

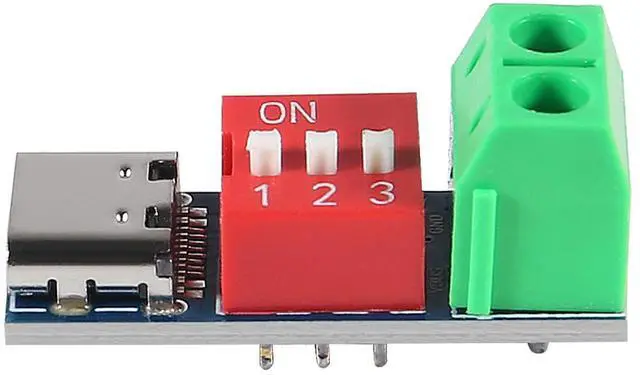

CFG1 corresponding dial switch 1

CFG2 corresponding dial switch 2

CFG3 corresponds to dial switch 3

Dial down to 1, and dial up to 0.

Toggle the switch to request the corresponding voltage according to the charger protocol

Package include:

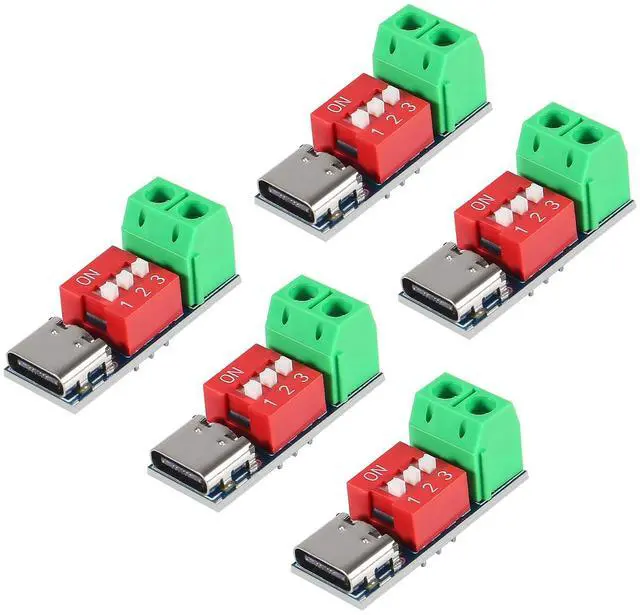

5PCS X decoy module
