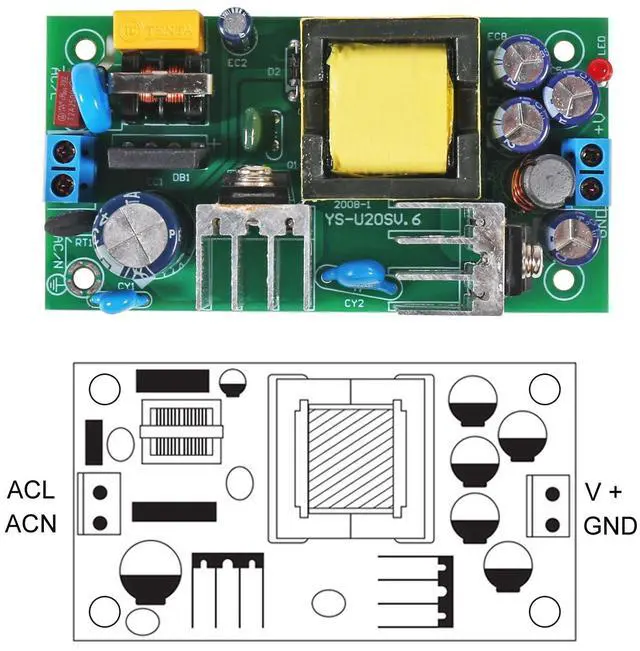

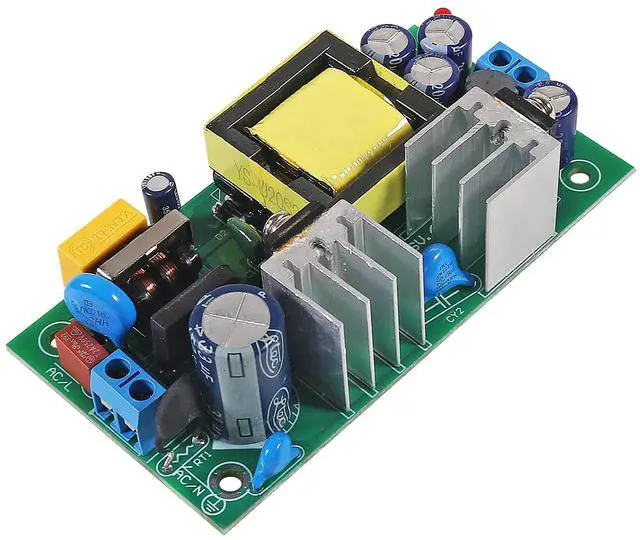

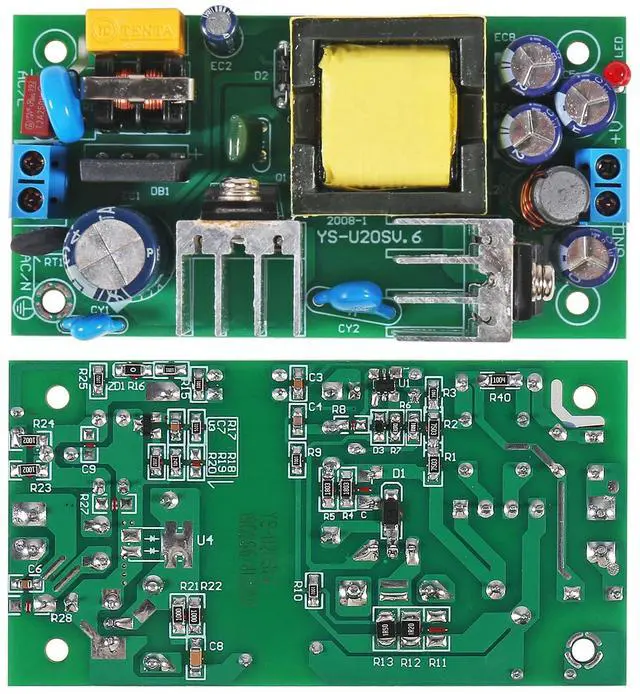

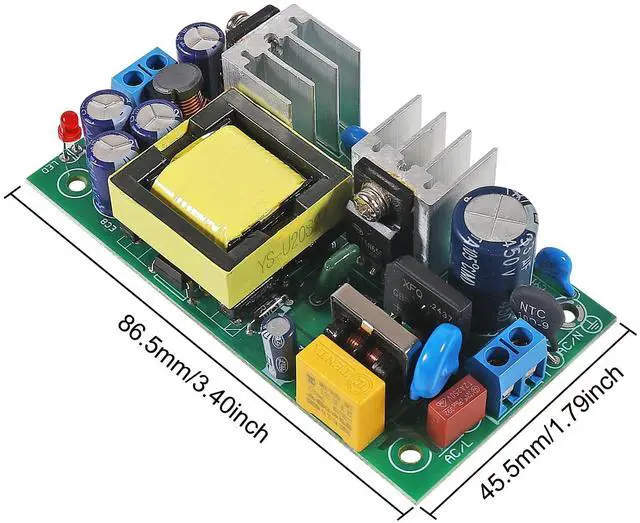

KEHIPI 2PCS AC-DC Power Supply Module, AC to DC Buck Power Supply Module AC 120V 100V-264V to 12V 2A 2000mA Isolated Step Down DC Module (12V 2A) Power Supply Board Power Supply Module
- Input voltage range: AC 120V 100- 264V. Frequency range: 47-63Hz.
- Output voltage: 12V ±1%. Output current: 2A 2000mA

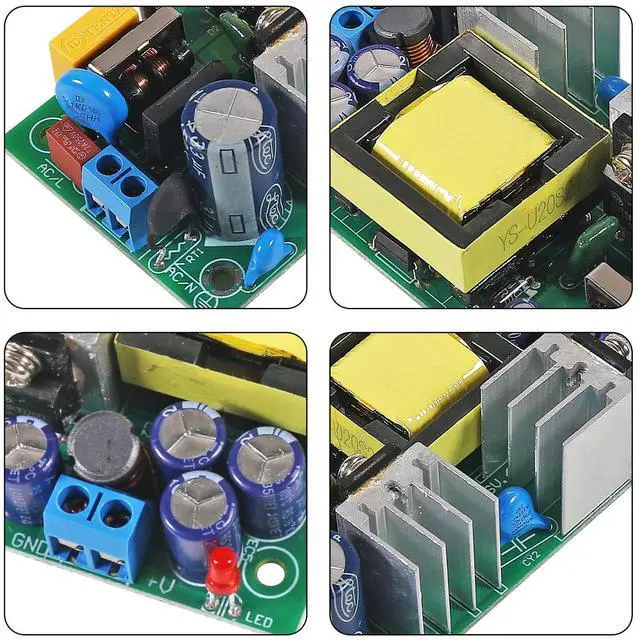

- Heatsink Design: Designed with two heat sinks, high power heat sink, powerful heat dissipation, make your module durable and longer life.
- Effective conversion: Support over-voltage protection, over-current protection and short-circuit protection,Ultra-small size and high efficiency.
- Package: 3PCS AC to DC Isolated Power Supply Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Output parameters:
Output voltage: 12V ±1%.
Output current: 2A 2000mA.
Ripple: less than 60mVp-p.
Output accuracy: ±1%.
Voltage regulation rate: ±1%.
Load adjustment rate: ±1%
Rated power: 24W.
Output adjustable range: not adjustable.
Establish, rise, hold time: 500ms, 80ms, 80ms / 220V AC.
Input parameters:
Input voltage range: AC 100- 264V.
Input current: less than 0.2A. (Average current 0.03A-0.1A).
Frequency range: 47-63Hz.
Efficiency: about 80%.
Start surge current: COLD START 30A/230V / AC.
Leakage current: less than 2mA / 220V AC.
Package Included:

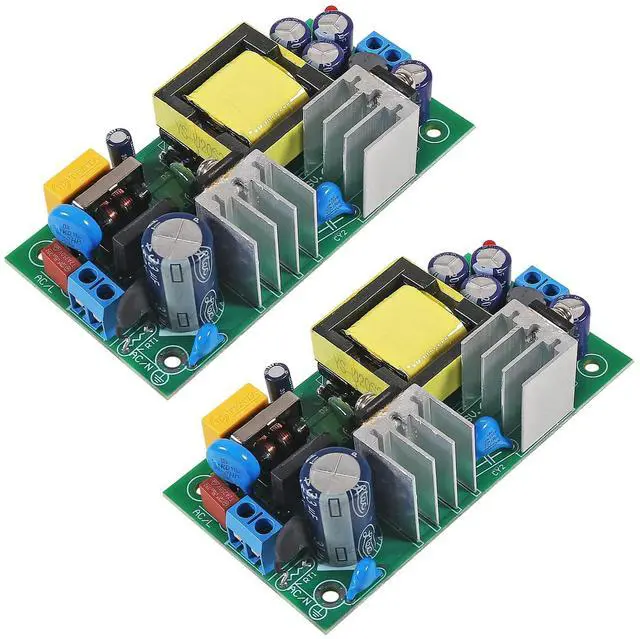

2Pcs 12V 2A 2000mA AC-DC Precision Buck Power Supply Module
